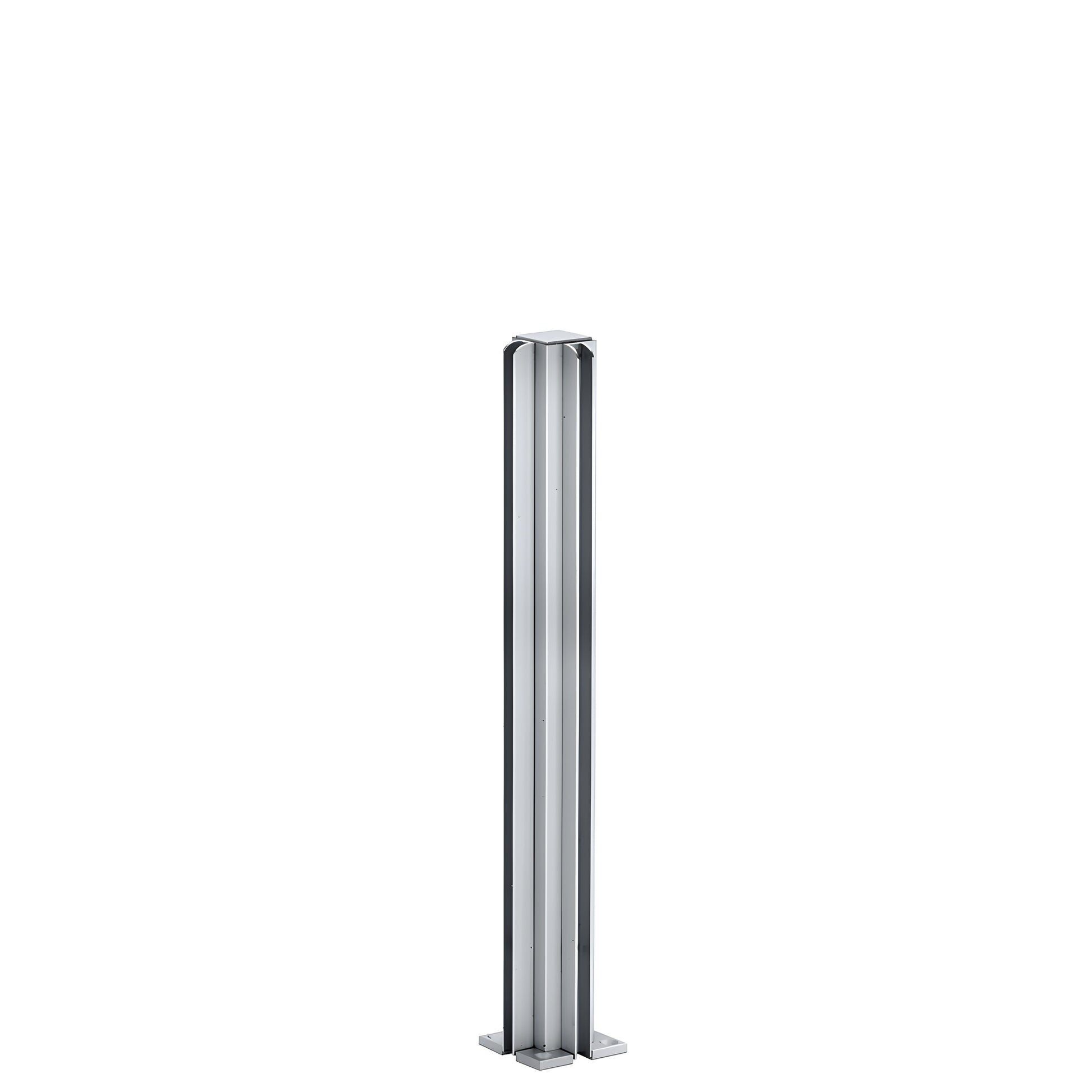

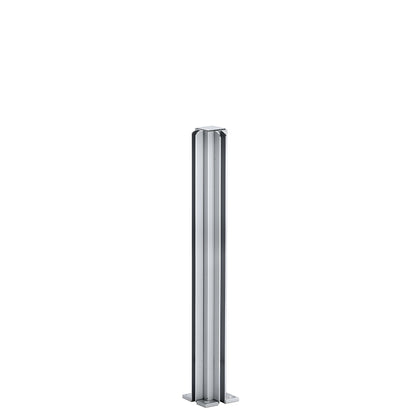

CRL 16" Satin Anodized Corner Partition Post for Stall Partitions

• Stock post sizes, RED-E to ship
• Standard heights: 12", 18", and 24" (305, 457, and 610 mm) in four finishes
• Five standard configurations: End, Center, Corner, 3-Way, and 4-Way
• Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
• Top cap and mounting base included
• Designed for use with monolithic tempered glass

CRL Design Series Partition Posts (SKU: D990A16CR) are ready-to-ship partition posts for glass panels, commonly used in banks, offices, restaurants, and commercial interiors. Their slim-line profile and easy-to-install mounting base simplify installation of tempered glass office partitions and glass divider systems. The glazing channels run full length to accept 1/4" (6 mm) glass and are secured with Cat. No. 33SC Clear Silicone. Select sizes and finishes are also available as custom 135° posts.

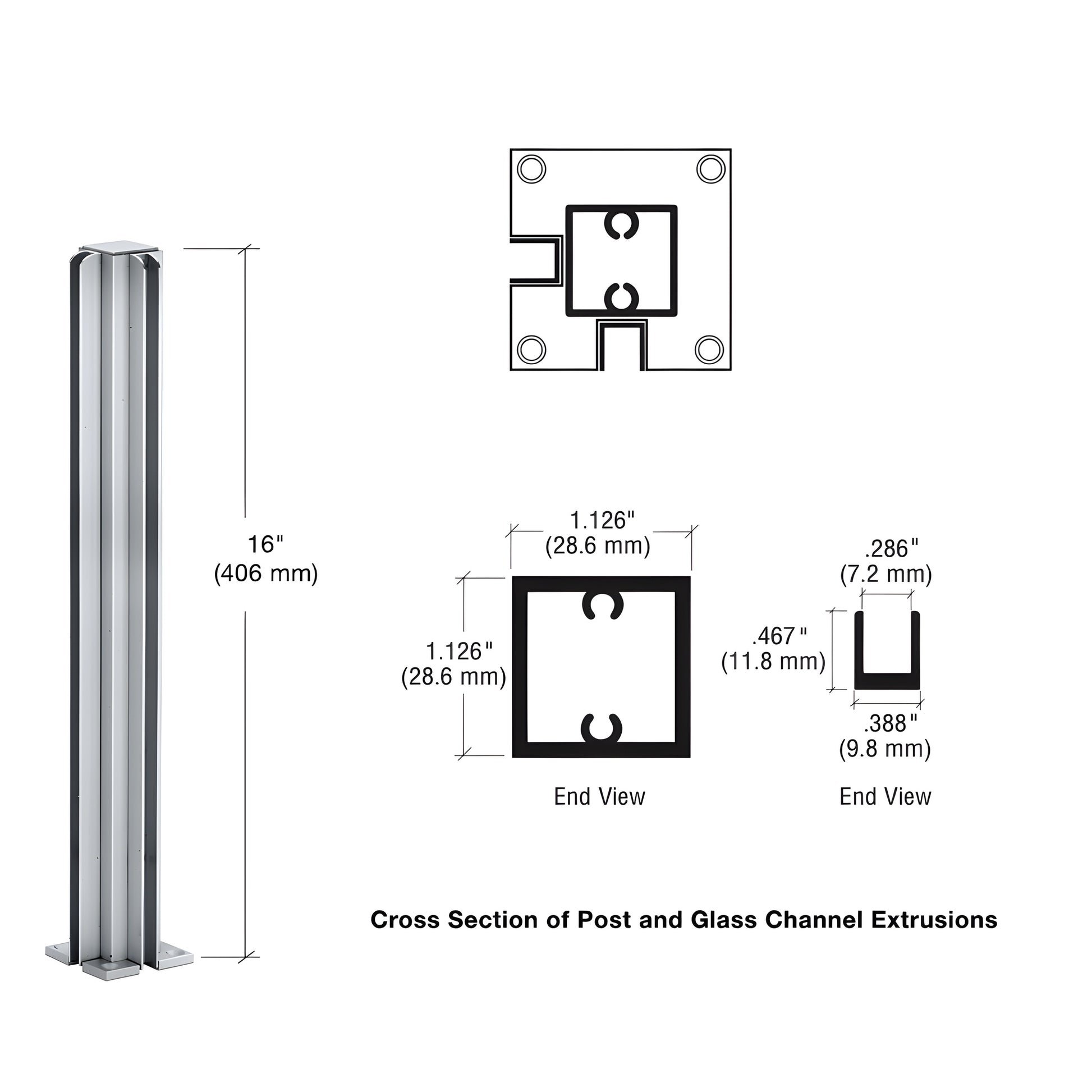

Each fully assembled post measures 1-1/8" (28.6 mm) square with a 2" (51 mm) square mounting base plate. Glazing channels rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the channel. Each post includes one attached top cap, one attached mounting base, and four wood screws for mounting.

You can also build custom partition posts using CRL components—see instructions and requirements and the parts page for components and assembly guidance.

Product Warning:

Secure glass into glazing channels using Cat. No. 33SC Clear Silicone.


Contact CRL to order SKU D990A16CR or request lead time and finish availability.
