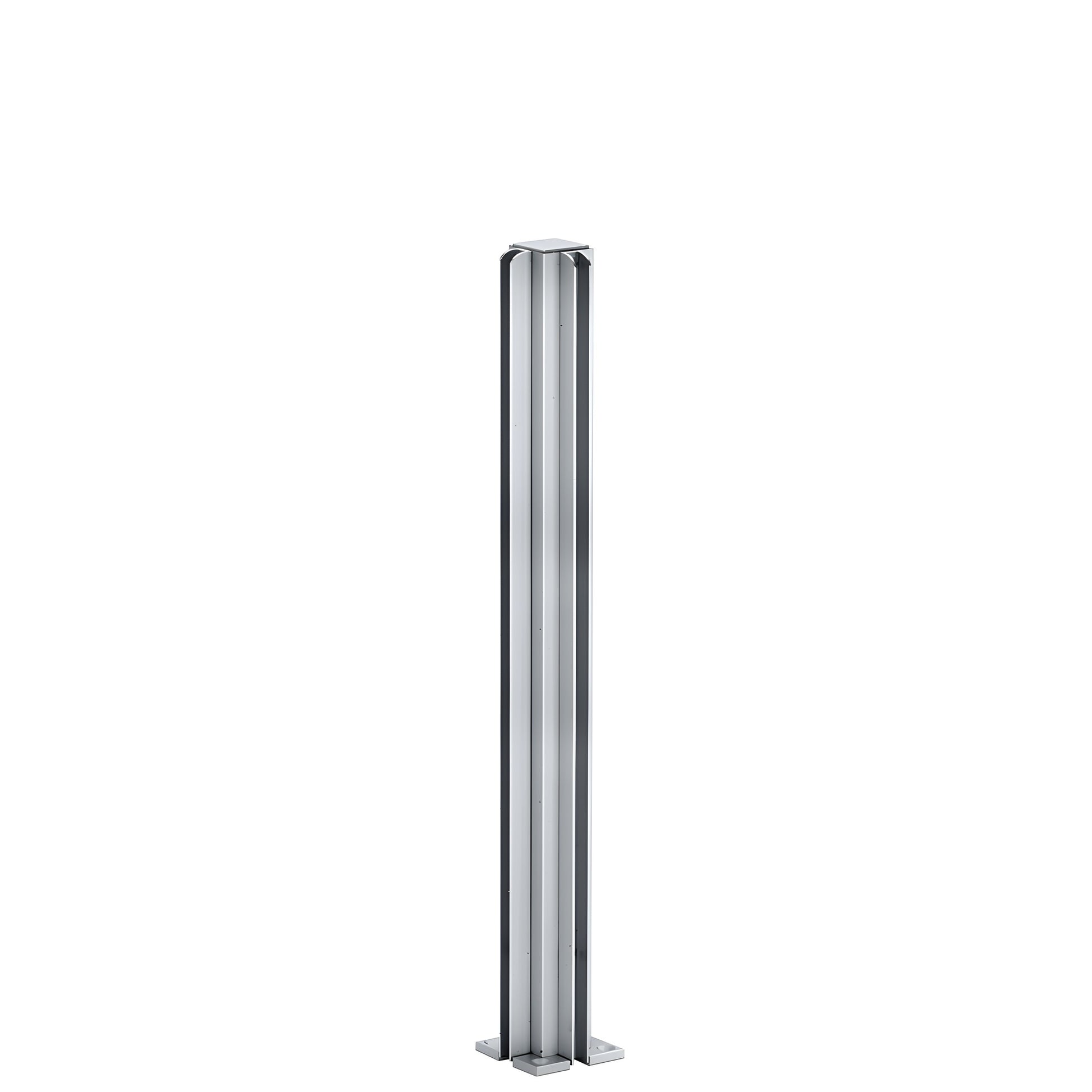

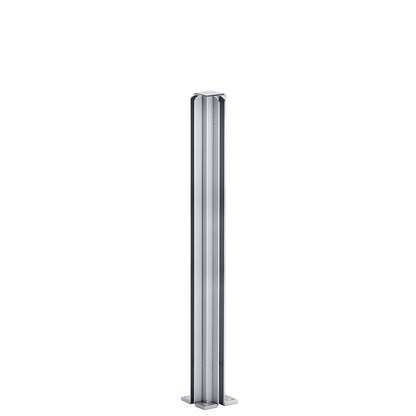

CRL 18 in Satin Anodized Aluminum Corner Partition Post
CRL 18 in Satin Anodized Aluminum Corner Partition Post
Regular price
$115.33 CAD
Regular price
Sale price
$115.33 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990A18CR
Shipping Weight: 1.498 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.498 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
90 Degree Corner Post
Finish/Color
Satin Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
18 in. (457.2 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- Stock post sizes, RED-E to Ship — SKU D990A18CR
- Standard heights: 12", 18", and 24" (305, 457, and 610 mm); available in four finishes
- Five standard configurations: End, Center, Corner, 3-Way, and 4-Way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; mounting hardware (4 wood screws) supplied
- Designed for monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass
CRL Design Series partition posts are a popular choice for banks, offices, and restaurants where durable, slimline aluminum partition posts for glass partitions are required. Available in standard stock sizes for immediate delivery, these easy-to-install posts feature full-length glazing channels and an integrated mounting base that simplifies installation. Secure glass using Cat. No. 33SC Clear Silicone. Custom 135° posts are also available in select finishes and sizes.

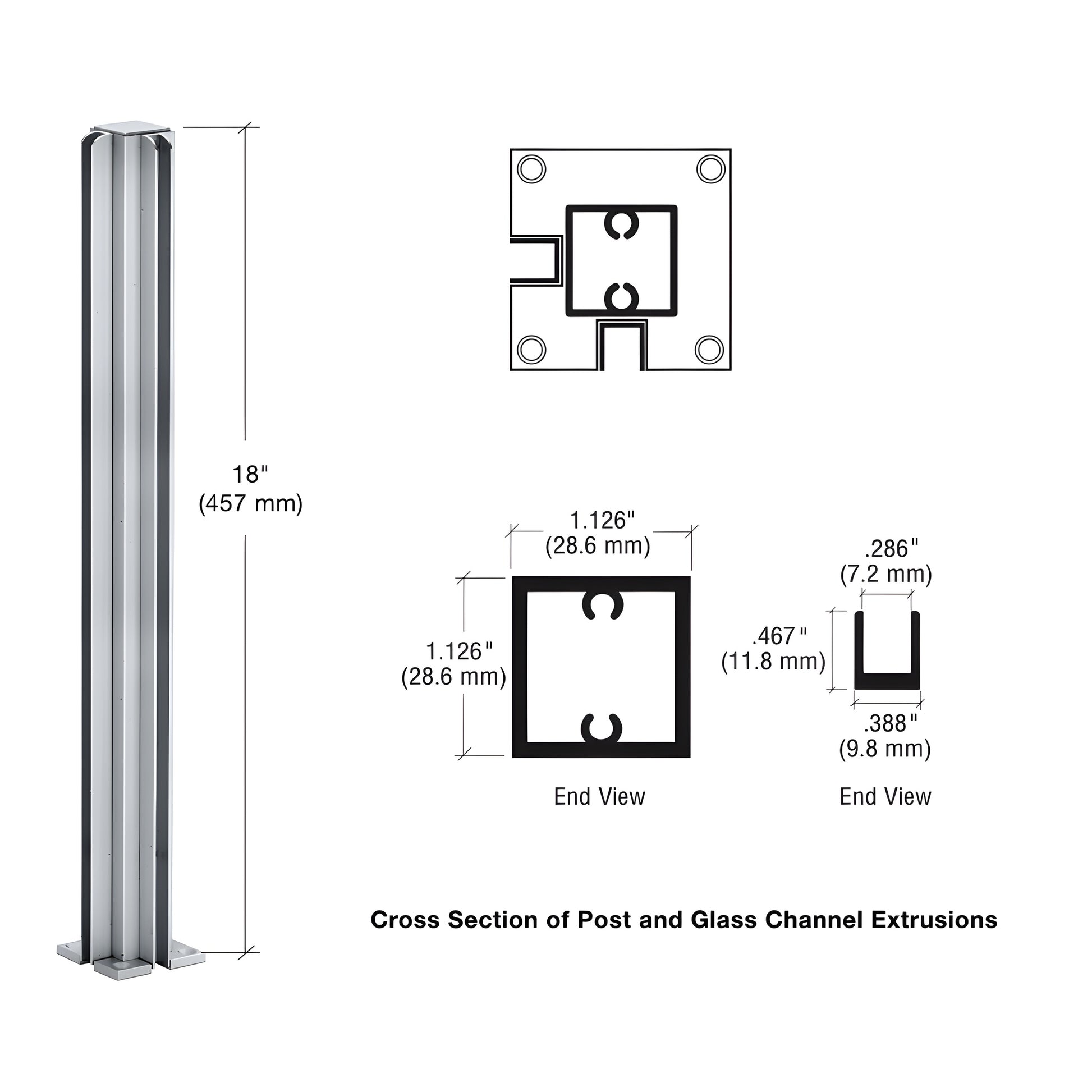

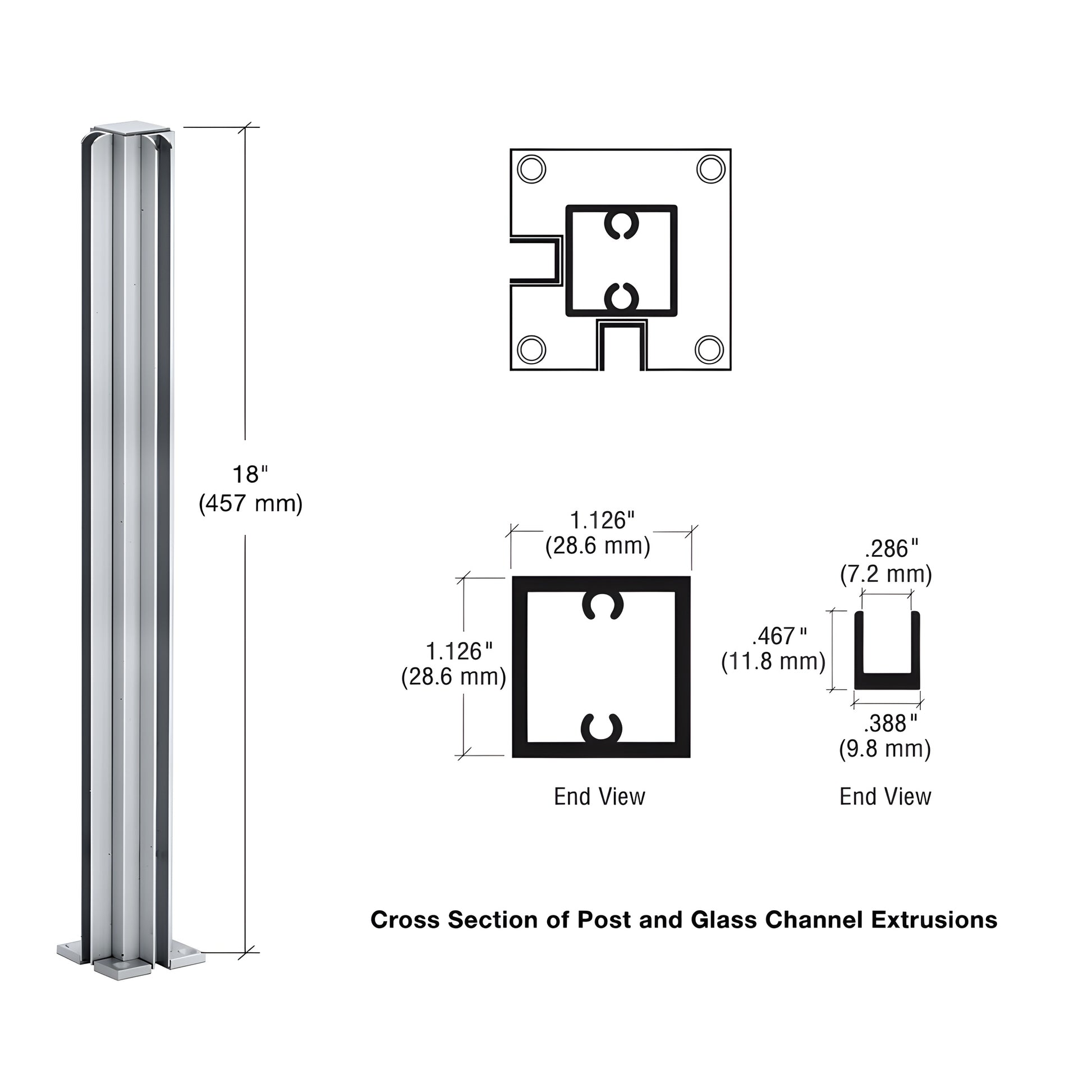

These fully assembled Design Series posts measure 1-1/8" (28.6 mm) square. Post mounting base plates measure 2" (51 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is included to fill the channel.
You can also "Make Your Own" Design Series partition posts with CRL components — see instructions and requirements and the parts page.
Product Warning:
Use Cat. No. 33SC Clear Silicone to secure glass into glazing channels.
Order CRL Design Series aluminum partition posts (SKU D990A18CR) for fast shipping and reliable, easy-to-install glass partition solutions.
