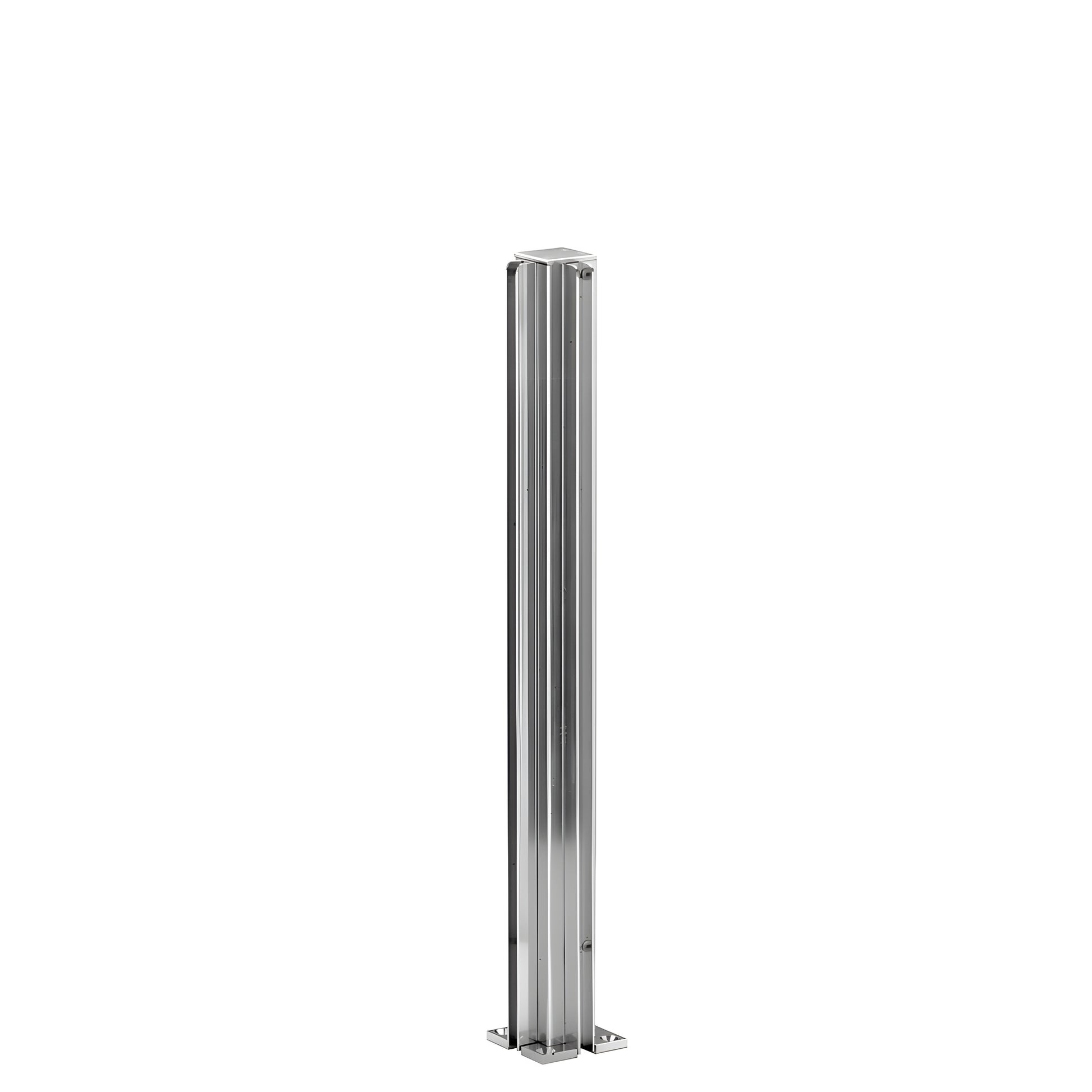

CRL Brite Anodized 18 in Corner Partition Post – Restroom Hardware
Item# D990BA18CR
Shipping Weight: 15.92 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.92 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
90 Degree Corner Post
Finish/Color
Brite Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
18 in. (457.2 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
- SKU: D990BA18CR — Stock post sizes, RED-E to ship
- Standard heights: 12", 18", and 24" (305, 457, and 610 mm) — available in four finishes
- Five configurations: End, Center, Corner, 3-Way, and 4-Way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; use with monolithic tempered glass
CRL Design Series partition posts are a popular aluminum partition solution used in banks, offices, and restaurants. Slim-line profile plus an easy-to-install mounting base make these posts fast to fit and ideal for glass partitions. The full-length glazing channels accept 1/4" (6 mm) monolithic tempered glass and are secured with Cat. No. 33SC Clear Silicone. Custom 135° posts are available in some finishes and sizes.

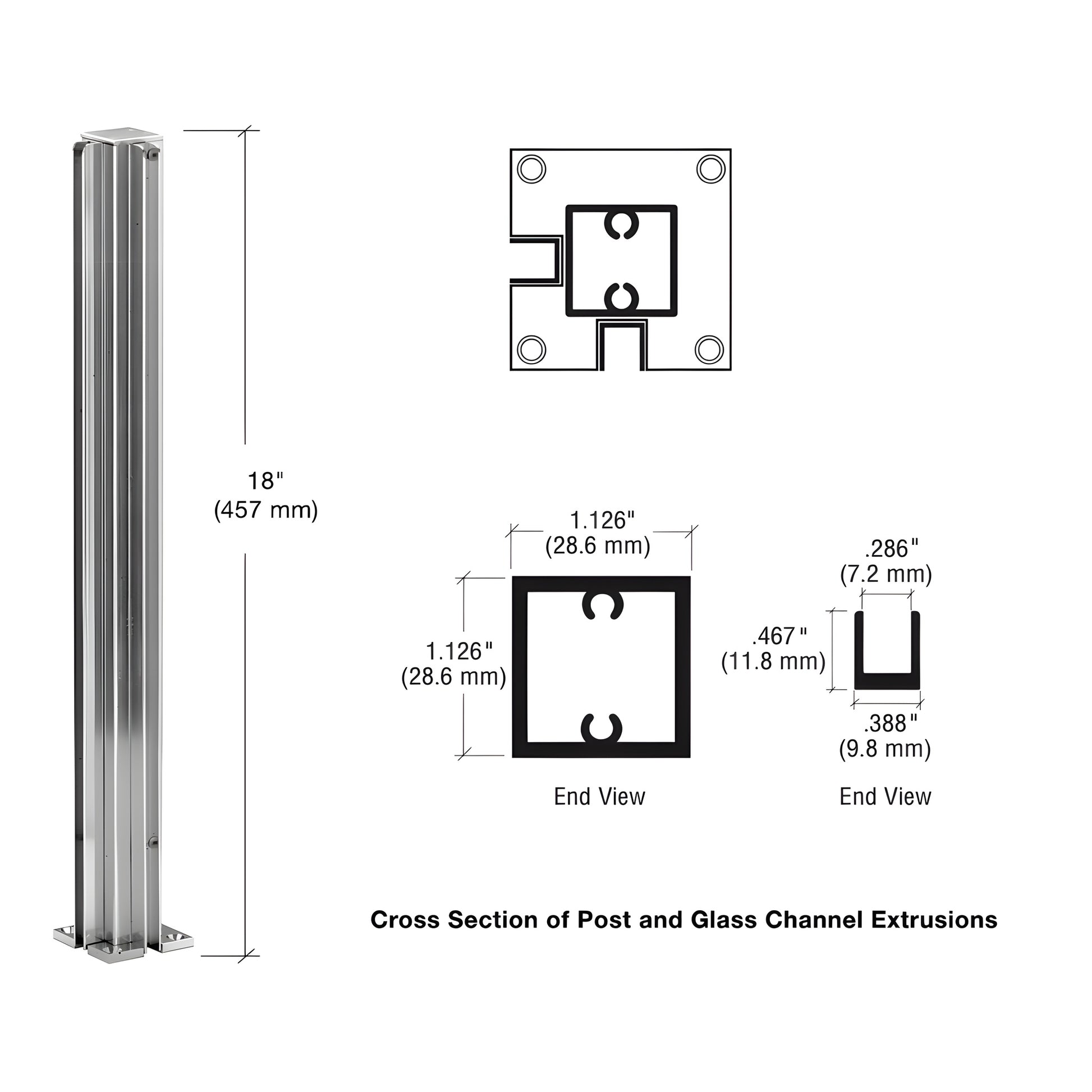

Each fully assembled post measures 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface and include glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass. Each post ships with one attached top cap, one attached mounting base, and four wood screws for mounting.
Make your own Design Series partition posts with CRL components: instructions and requirements, parts page.
Product note:
Secure glass into glazing channels using Cat. No. 33SC Clear Silicone. For exact shipping weights or color-match questions, contact CRL Customer Service before placing your order. Product images are representative; actual colors may vary by monitor.
