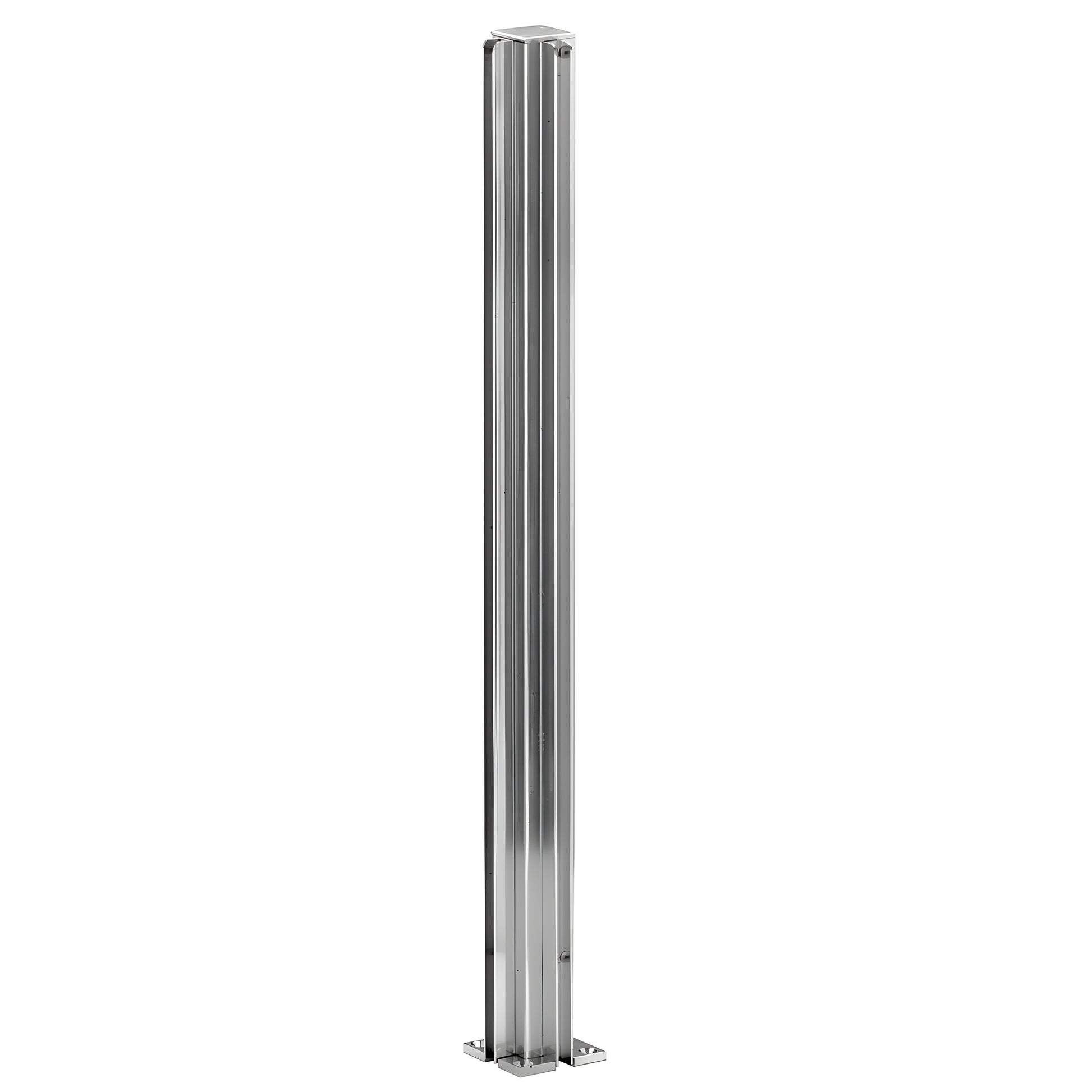

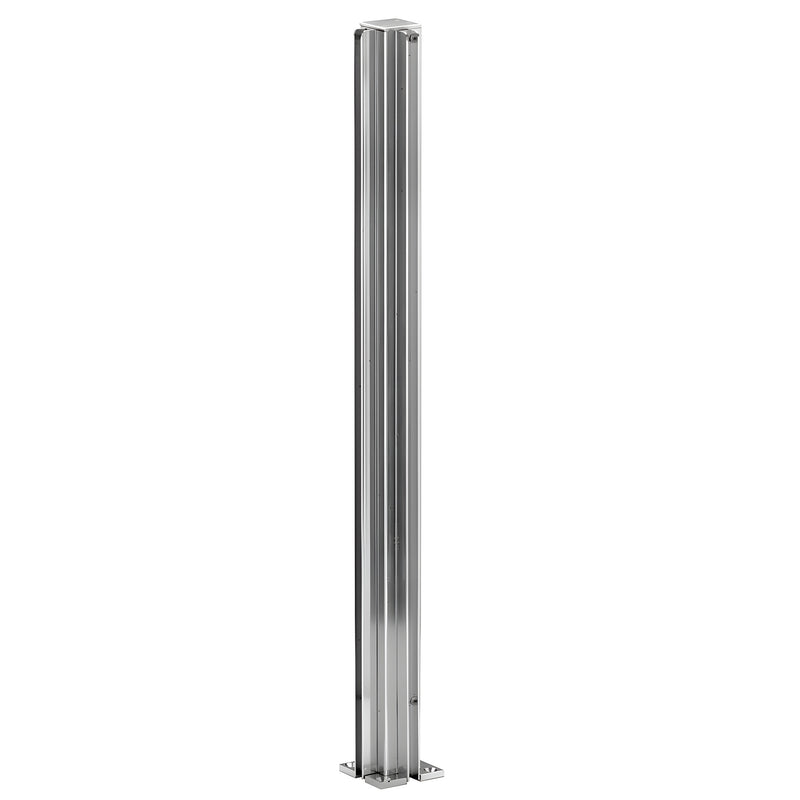

• D990BA30CR bright anodized aluminum 90 corner partition post, 30" tall, 1 1/8" square with U channel for 1/4" glass.
  • D990BA30CR bright anodized aluminum 90 corner partition post, 30" tall, 1 1/8" square with U channel for 1/4" glass.
1 2

CRL

CRL Brite Anodized 30" Corner Restroom Partition Post

CRL Brite Anodized 30" Corner Restroom Partition Post

$140.33 CAD
$140.33 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# D990BA30CR
Shipping Weight: 1.585 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
90 Degree Corner Post
Finish/Color
Brite Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
30 in. (762 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square

Overview

  • Stock post sizes, RED-E to ship — SKU: D990BA30CR
  • Standard heights: 12", 18", and 24" (305, 457, and 610 mm); available in four finishes
  • Five configurations: End, Center, Corner, 3‑Way, and 4‑Way
  • Aluminum tubing with full‑length glazing channels for 1/4" (6 mm) glass
  • Top cap and mounting base included; use with monolithic tempered glass

CRL Design Series partition posts are popular for glass partitions and office storefronts — stocked in standard sizes for immediate delivery. Their slim profile, full‑length glazing channels, and easy‑to‑install mounting base make them a go‑to choice for banks, offices, restaurants, and commercial interiors. Glass is secured with CRL Cat. No. 33SC Clear Silicone. Custom 135° posts are available in selected finishes and sizes. Each fully assembled post includes one top cap, one mounting base, and four wood screws.

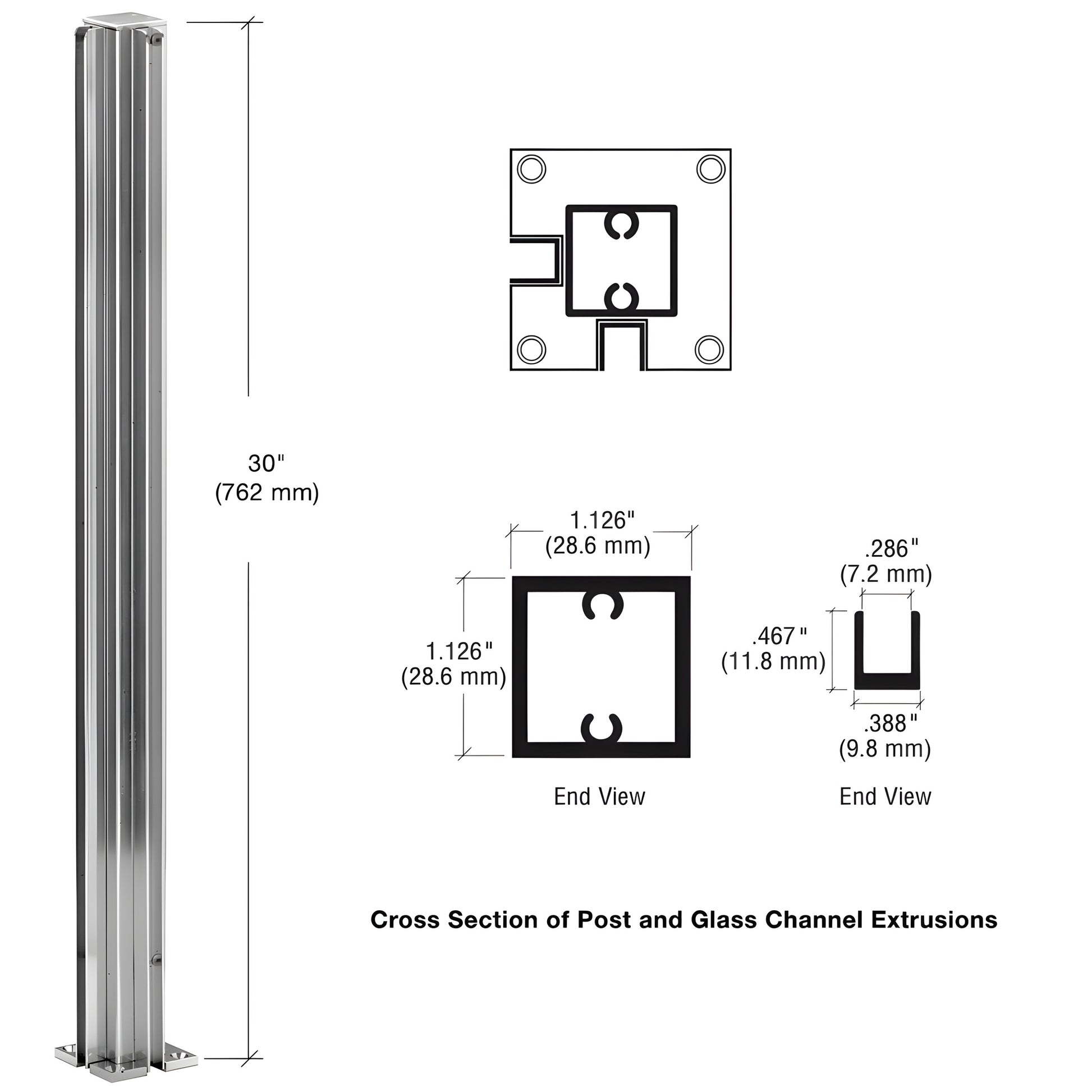

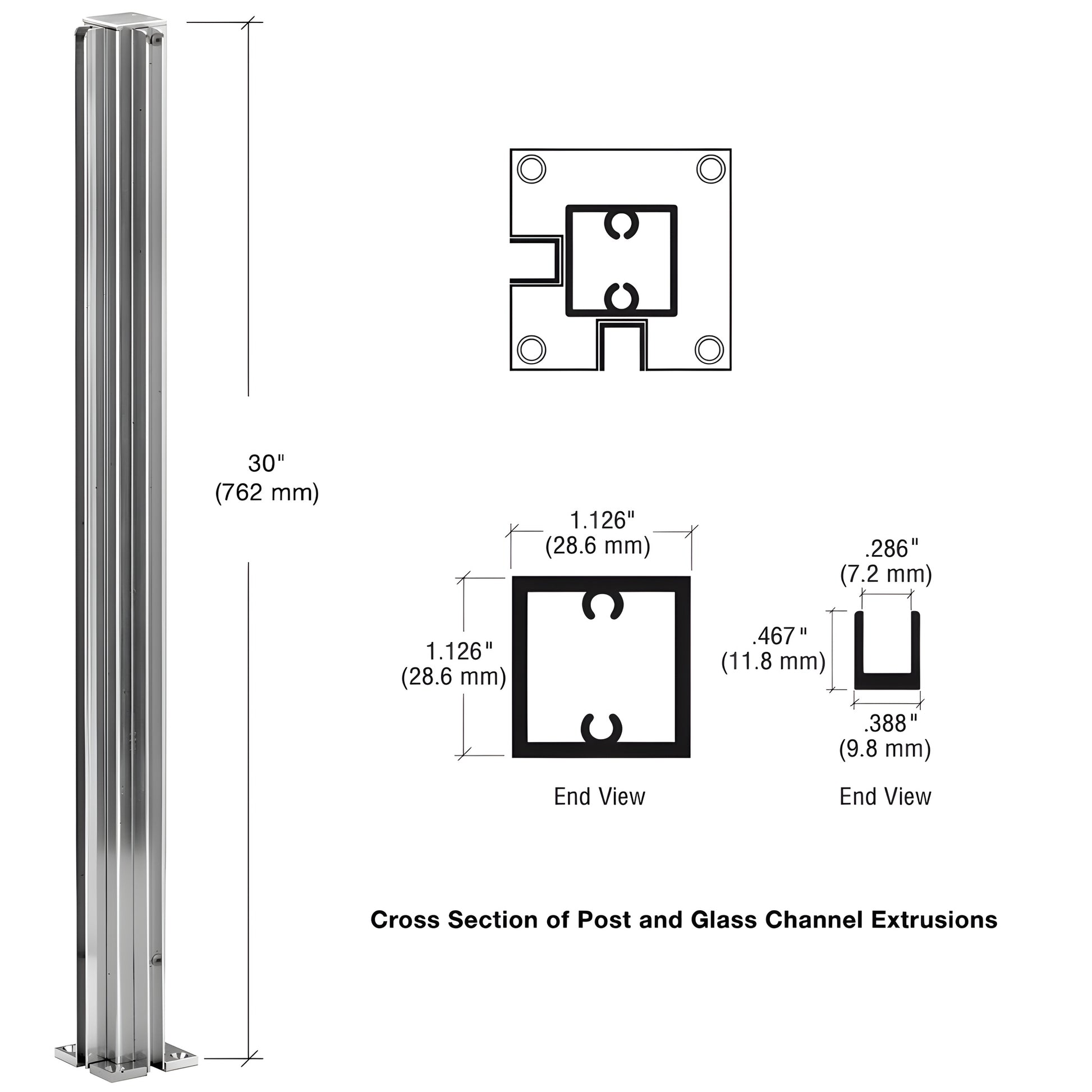

These Design Series posts measure 1‑1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels run the full length and rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the channel.

You can also "Make Your Own" Design Series partition posts using CRL components — see instructions and requirements and the parts page.

Product note:

Secure glass into the glazing channels using Cat. No. 33SC Clear Silicone as recommended.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors may vary depending on your monitor's settings.



Order SKU D990BA30CR now for fast shipping and reliable glass partition posts.
