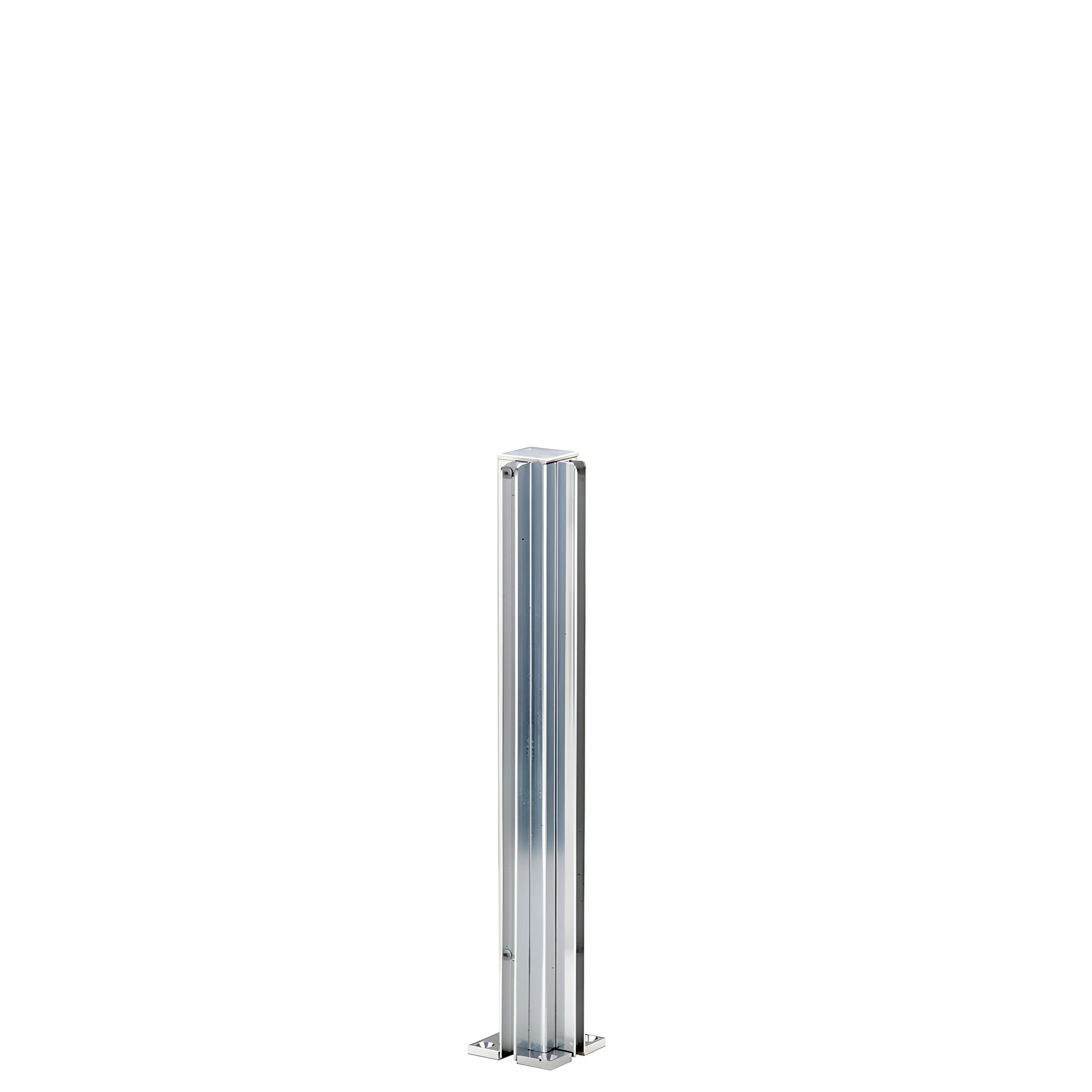

CRL Brite 12" Anodized Aluminum Corner Partition Post
CRL Brite 12" Anodized Aluminum Corner Partition Post
Regular price
$113.94 CAD
Regular price
Sale price
$113.94 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990BA12CR
Shipping Weight: 12.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
90 Degree Corner Post
Finish/Color
Brite Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
12 in. (304.8 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- SKU: D990BA12CR — Stock partition posts, RED-E to ship
- Standard heights: 12", 18", 24" (305, 457, 610 mm) — available in four finishes
- Five configurations: End, Center, Corner, 3-Way, and 4-Way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; slim profile for modern glass partitions
- Designed for monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass
CRL Design Series Partition Posts are popular, pre-assembled aluminum partition posts for glass partitions and are ready for immediate delivery. Used widely in banks, offices, and restaurants, these slim-line posts feature full-length glazing channels and an easy-to-install mounting base that speeds installation of tempered glass partitions. Glass is secured with Cat. No. 33SC Clear Silicone. Select finishes and sizes also offer Custom 135° posts. Each post ships with one attached top cap, one attached mounting base, and four wood screws for mounting.

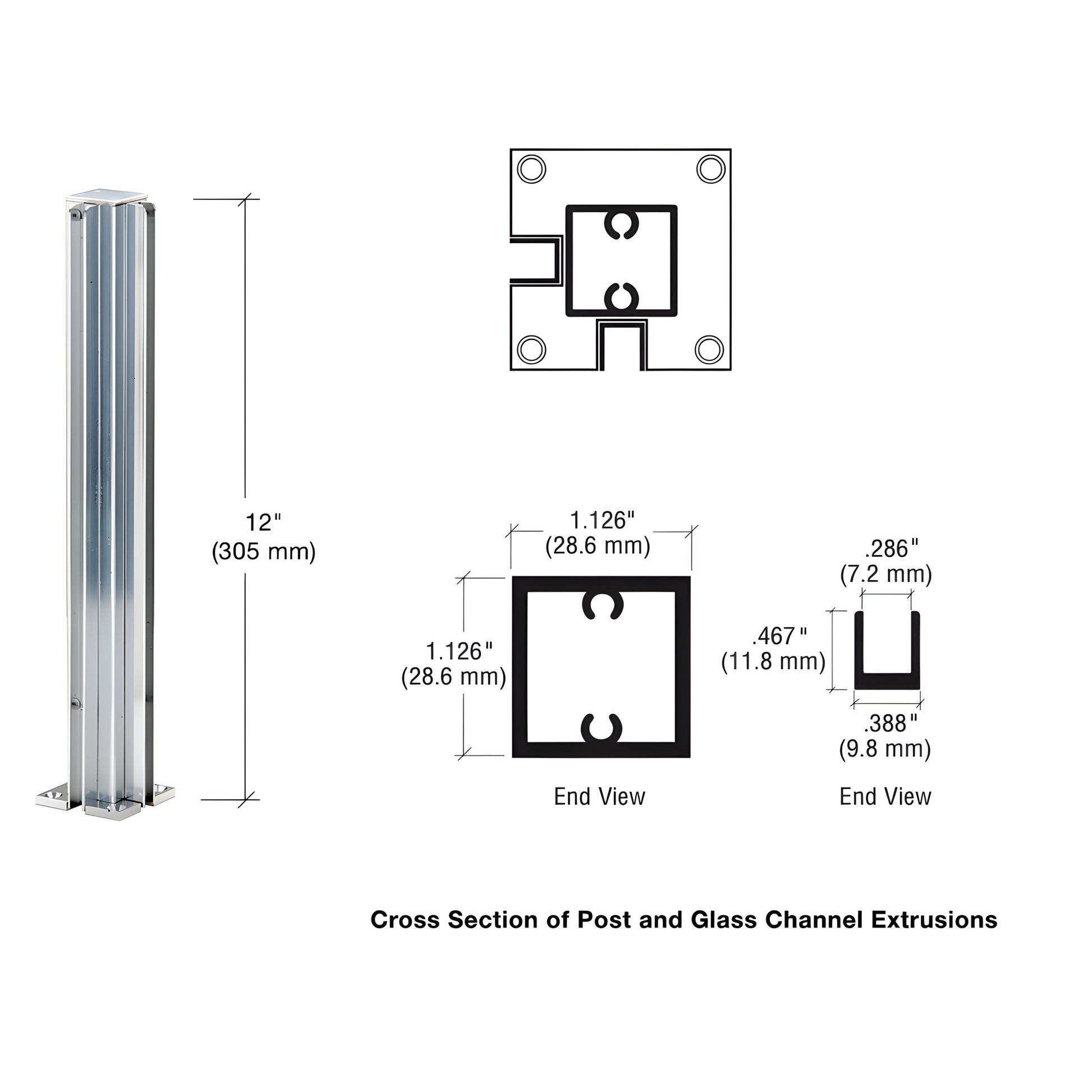

These fully assembled Design Series posts measure 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface. Use supplied glazing vinyl to fill the channel for 1/4" (6 mm) and 3/16" (5 mm) glass.
You can also "Make Your Own" Design Series Partition Posts with CRL components — instructions and requirements, parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Order SKU D990BA12CR now for fast shipping and streamlined installation.
