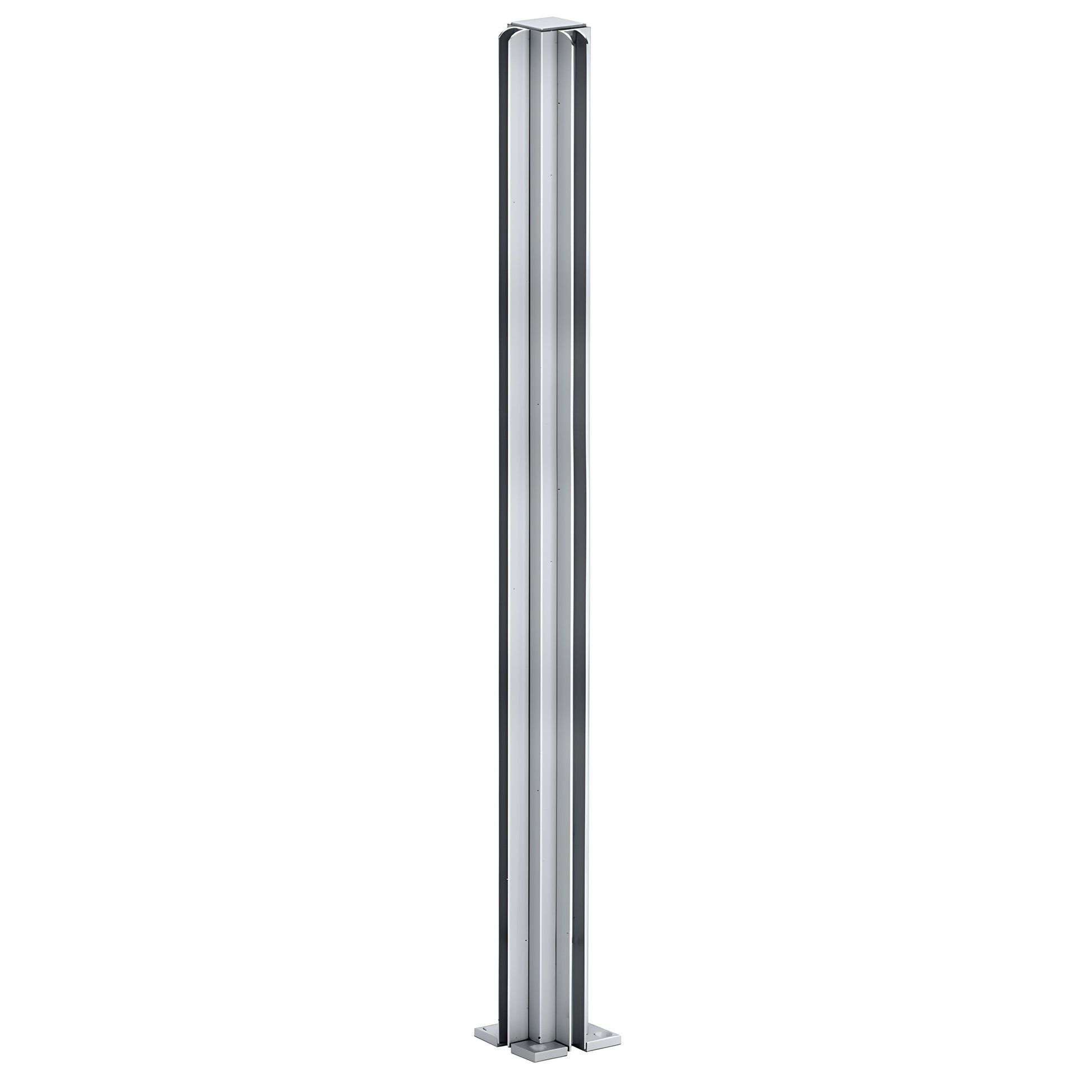

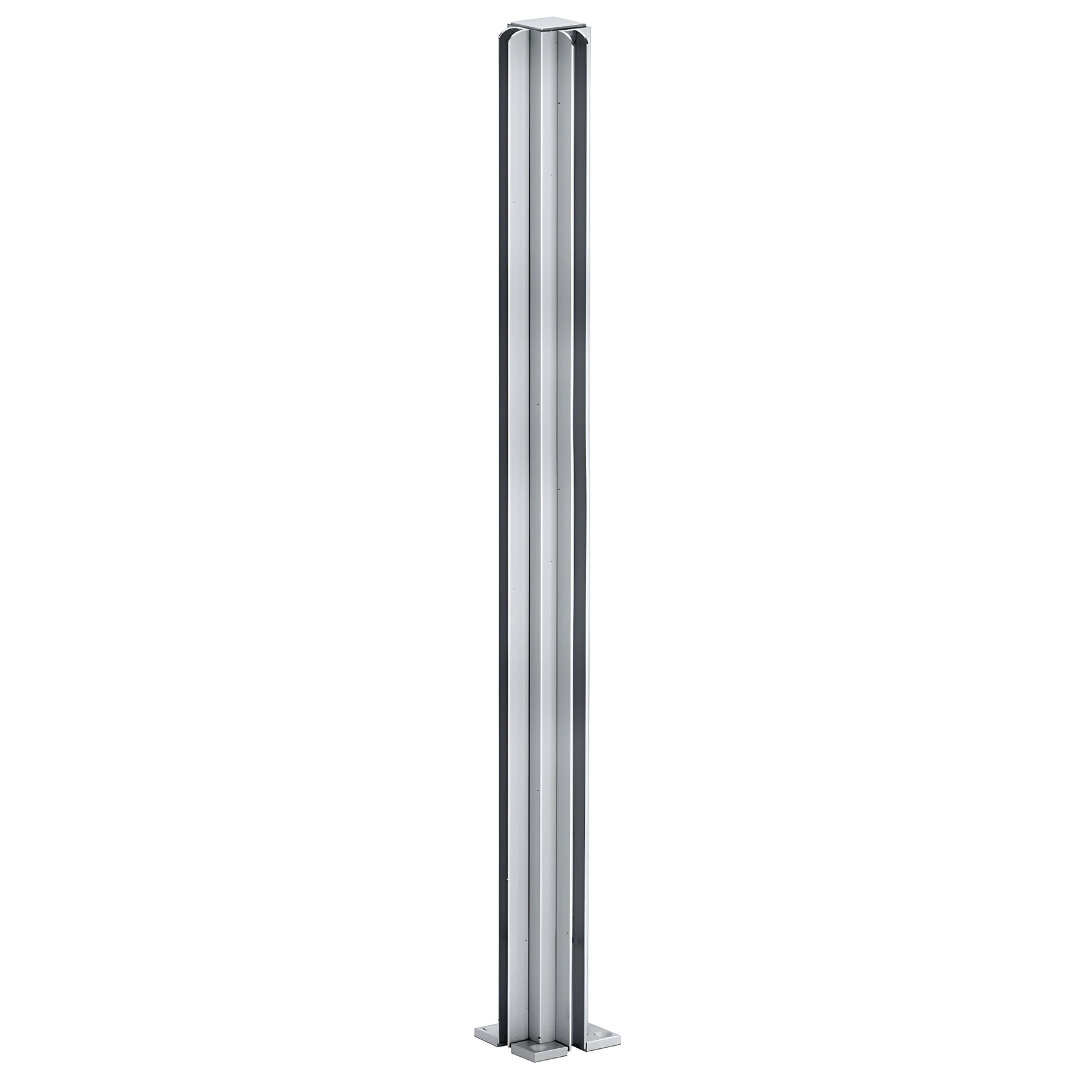

CRL 30 in Satin Anodized Corner Partition Post for Restroom Stalls

• Stock post sizes, RED-E to ship
• Standard heights: 12", 18", and 24" (305, 457, 610 mm) in four finishes
• Five standard configurations: end, center, corner, 3-way, and 4-way
• Aluminum tubing with full‑length glazing channels for 1/4" (6 mm) glass
• Top cap and mounting base included
• Designed for monolithic tempered glass

CRL Design Series partition posts (SKU: D990A30CR) are popular, ready-to-ship aluminum posts for glass partitions and office screens. Used extensively in banks, offices, and restaurants, these slim-profile posts include an easy-to-install mounting base and one attached top cap — making on-site installation fast and reliable. Secure glass into the full‑length channels using Cat. No. 33SC Clear Silicone. Select sizes and finishes are also available as custom 135° posts.

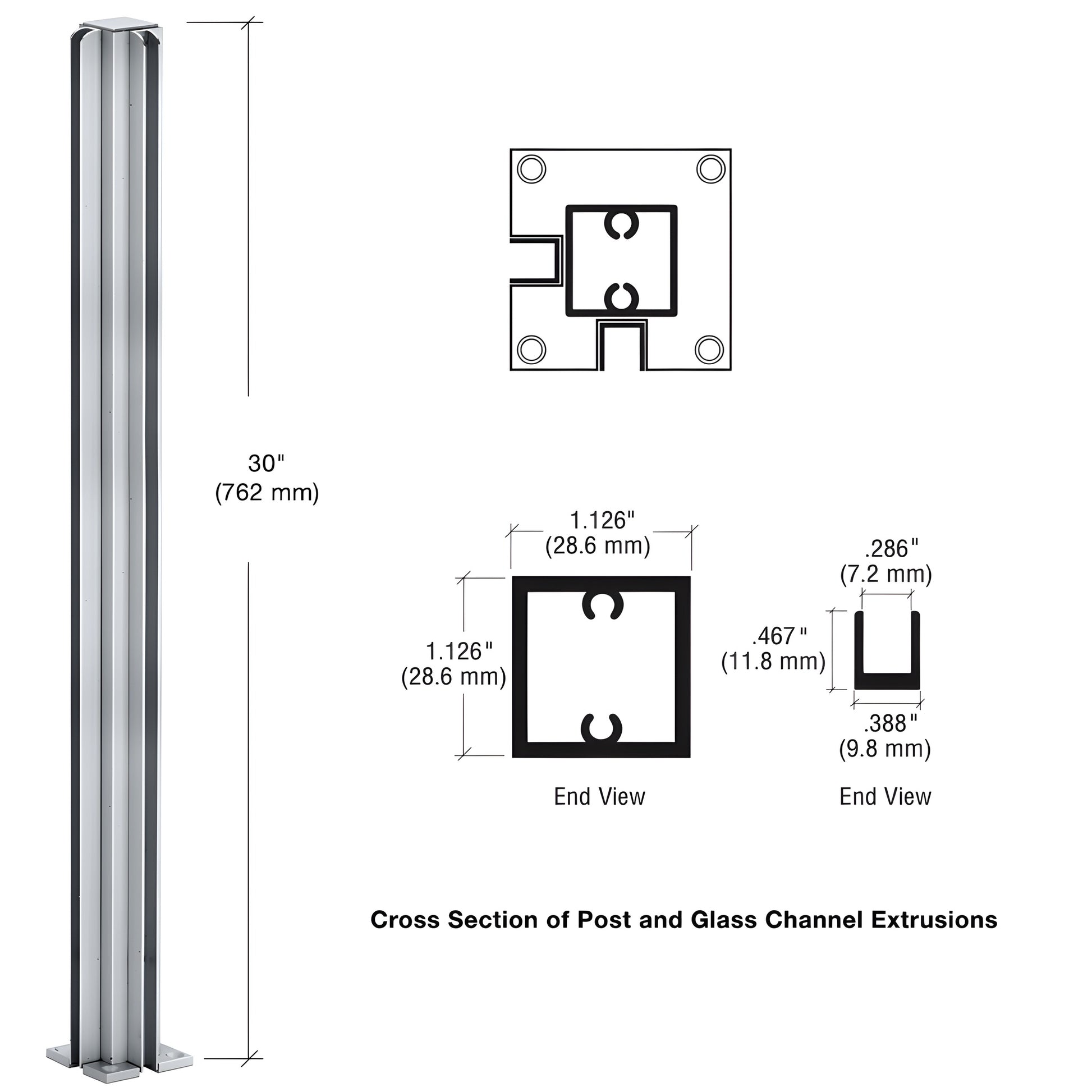

These fully assembled posts measure 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels run full length and rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the channel. Each post ships with four wood screws for mounting.

You can also build custom Design Series partition posts from CRL components — see instructions and requirements and the parts page.

Product Warning:

Secure the glass into the glazing channels using Cat. No. 33SC Clear Silicone. Use only monolithic tempered glass as specified.

Order SKU D990A30CR today to get ready-to-install partition posts for tempered glass partitions.
