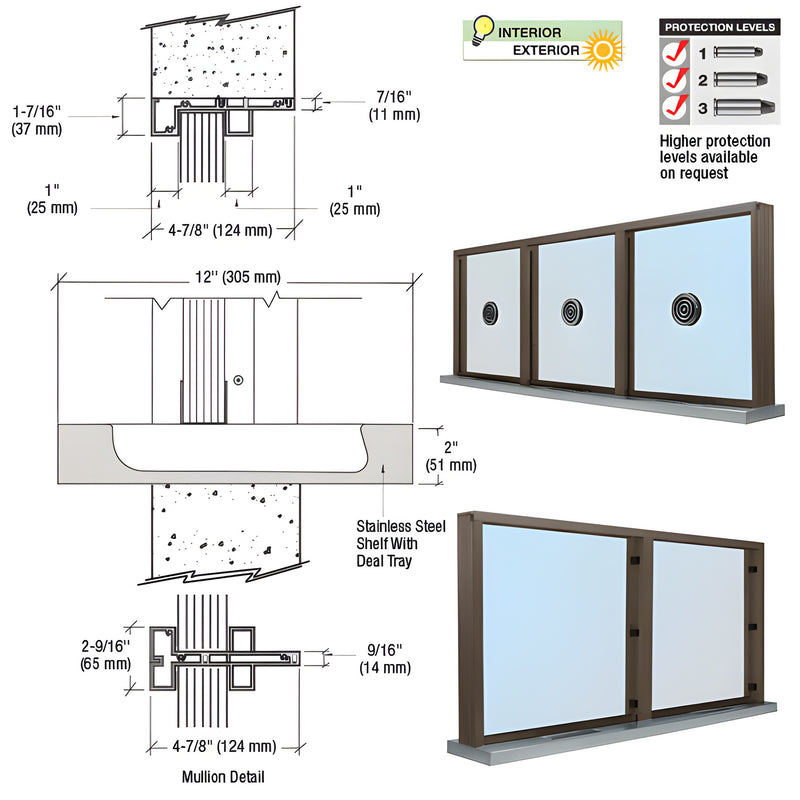

CRL Duranodic Bronze Aluminum Multi-Lite Inset Frame Window

• Standard Inset Multi-Lite Frame with Shelf and Deal Tray designed for multiple window units — ideal for arenas, stadiums, walk-up ticket offices, payment windows, theaters, and museums.
• Drawings and specifications available online (SKU: S1SWDU)

CRL Multi-Lite Standard Inset Frame Windows are built for multi-workstation installations such as walk-up ticket offices and payment windows in arenas, stadiums, movie theaters, museums, and other high-traffic venues. Configurable window options include deal trays, speak-thrus, shelves, dropdowns, returns, and more. The Standard Inset Frame installs into walls a minimum of 4-7/8" (124 mm) thick; an overhang is recommended for exterior use. For detailed technical assistance, contact the CRL Technical Sales Department.


SPECIFICATIONS:
Materials: Glazing options — 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®. Shelf — stainless steel.
Finishes: Frame — Satin Anodized, Duranodic Bronze, RAL powder coat colors or custom KYNAR® paint colors; Shelf — Brushed Stainless Steel #4 finish.
Deal Tray: Available with Level 1 or Level 3 protection.
Instructions Included
