CRL Duranodic Bronze Anodized 34" Wide x 38" High Bullet Resistant Clamp-On Exterior Window With Speak-Thru and Shelf With Deal Tray Protection Level 1
Item# C0EW3036DU
Shipping Weight: 0.01
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.01
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
- Code CompliancesUL 752
- Deal Tray Depth8-1/4 in. (209.6 mm)
- Deal Tray Height1-9/16 in. (39.7 mm)
- Deal Tray Width11 in. (279.4 mm)
- Finish/Color:Black Bronze Anodized
- Finish - Shelf & Deal TrayBrushed Stainless Steel
- Frame Depth5 in. To 8-1/2 in. (127 mm To 216 mm)
- Frame Size34in. (863.6mm) W x 38 in. (965.2 mm) H
- Frame Width2-5/8 in. (66.7 mm)
- Glazing Type1-1/4" Acrylic
- IncludesN666 Speak-Thru
- MaterialAluminum
- Protection Level1
- Rough Opening Size31-3/4 in. (806 mm) W X 37 in. (939.8mm) H
- Shelf Depth12 in. (304.8 mm)
- Shelf Thickness2 in. (50.8 mm)
- Shelf Width22-3/4 in. (577.9 mm)
- UsageInterior,Exterior
- Width34 in. (863.6 mm)
- Window StyleFixed Single Lite
- Fits Walls from 5" to 8-1/2" (127 to 216 mm) Thick
- Assembled and Ready-to-Install

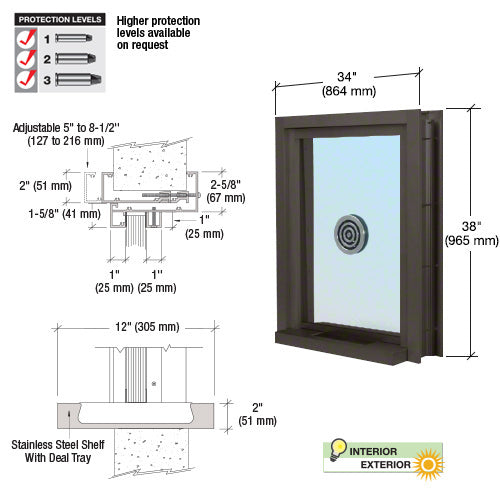

- Drawings and Specifications are Available Online
This CRL Bullet Resistant Exchange Window uses a Clamp-On Frame designed for installation into wall openings that are 5" to 8-1/2" (127 to 216 mm) thick. The window is secured in the opening by tightening the interior side of the frame to the unit. Each window comes complete with a 12" (305 mm) deep Stainless Steel Shelf with a Non-Ricochet Bullet Resistant Deal Tray. The 1-1/4" (32 mm) thick bullet resistant acrylic is rated for Level 1 protection. A Cat. No. N666 Speak-Thru is built into the acrylic, and offers Level 3 protection while allowing natural voice transmission. An overhang is recommended if used in an exterior application. Two finishes and three sizes are available in stock. Custom units are available.
SPECIFICATIONS:
Materials: Frame - .125" (3 mm) Thick Extruded 6063-T5 Aluminum Alloy; Glazing - 1-1/4" (32 mm) Level 1 Acrylic; Shelf - Stainless Steel
Finishes: Frame - Satin Anodized or Bronze Anodized; Shelf - Brushed Stainless Steel #4 Finish
Speak-Thru: N666 Level 3 Stainless Steel
Deal Tray: Level 1 Protection
Instructions Included
Standard Models are Protection level 1, Higher levels on custom orders only.
