CRL Duranodic Bronze Anodized Aluminum Multi-Lite Narrow Inset Frame

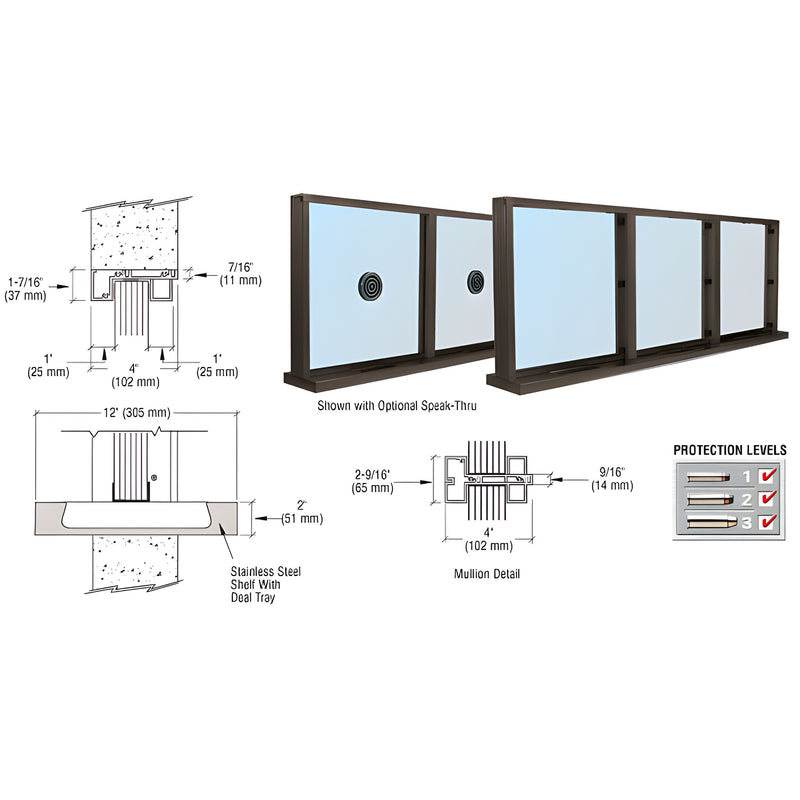

• Narrow Inset Multi-Lite Frame with shelf and deal tray — designed for windows joined together to create multi-position workstations (SKU: N1SWDU)
• Drawings and specifications available online

CRL Multi-Lite Narrow Inset Frame Windows are ideal for multiple-workstation installations such as walk-up ticket offices and service windows in arenas, stadiums, movie theaters, museums, and other high-traffic public venues. Configurable window options include speak-thrus, deal trays, shelves, drop-downs, returns, and more. The Narrow Inset Frame installs into walls 4" (102 mm) or thicker. For technical questions or custom configurations, contact the CRL Technical Sales Department.

SPECIFICATIONS:
Materials: Glazing options — 1/4" (6 mm) glass; 1-5/16" (33 mm) Level 1 glass; 1-1/4" (32 mm) Level 1 acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 glass; 1-3/16" (30 mm) Level 3 glass-clad polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®. Shelf — stainless steel.
Finishes: Frame — satin anodized, Duranodic bronze, RAL powder coat colors, or custom KYNAR® paint; Shelf — brushed stainless steel #4 finish.
Deal Tray: Available with Level 1 or Level 3 protection.
Instructions Included

Stand out with the N1SWDU Narrow Inset Multi‑Lite Frame for secure, modular service windows — request drawings or a quote today.
