CRL
CRL
CRL Duranodic Bronze 36in Bullet-Resistant Window w/Speak-Thru & Tray
Item# S1EW3636DU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Code Compliances
UL 752
Deal Tray Included
Integral Deal Tray
Finish/Color
Duranodic Bronze Anodized
Frame Depth
4-7/8 in. (123.8 mm)
Glazed
Yes
Glazing Thickness
1-1/4 in. (32 mm)
Glazing Type
Acrylic
Height
36 in. (914.4 mm)
Material
Aluminum
Optional Speak-Thru
N666
Protection Level
1
Shelf Depth
12 in. (304.8 mm)
Shelf Thickness
2 in. (50.8 mm)
Shelf Width
36 in. (914.4 mm)
Surround Sound Feature
No
Usage
Interior,Exterior
Width
36 in. (914.4 mm)
Window Style
Fixed Single Lite

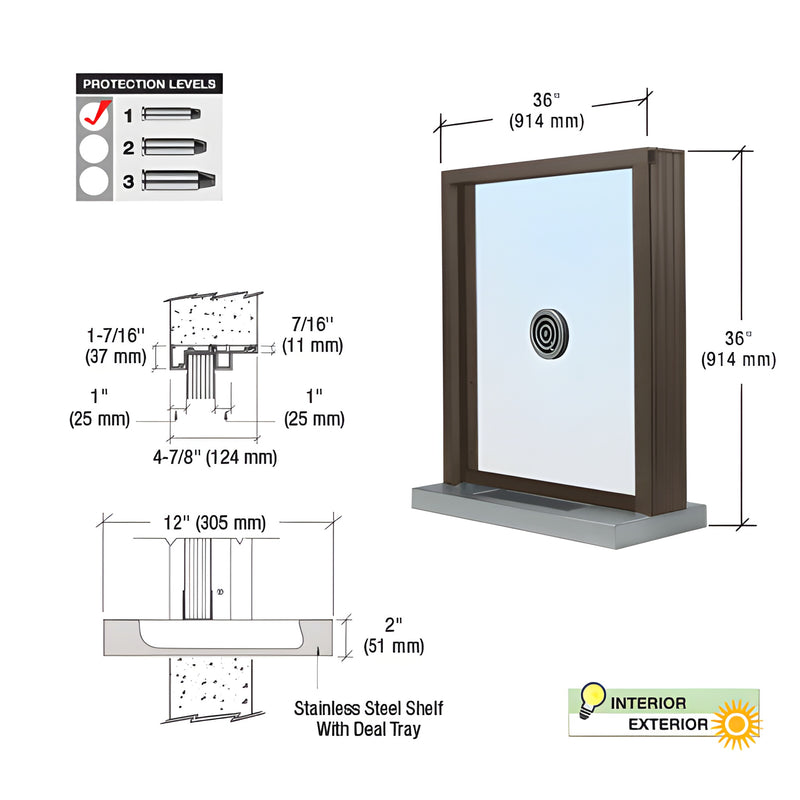

- Bullet-resistant exchange window with speak-thru and non-ricochet deal tray
- Fits walls at least 4-7/8" (124 mm) thick (inset frame installation)
- Glazing: 1-1/4" (32 mm) Level 1 bullet resistant acrylic
- Assembled and ready to install
This CRL Standard Inset Frame Exchange Window (SKU: S1EW3636DU) is engineered for secure teller and customer-service openings in walls 4-7/8" (124 mm) or thicker. The unit installs as an inset frame: slide into the opening and secure by fastening through the perimeter frame into the wall opening. Includes a 12" (305 mm) deep stainless steel shelf with built-in non-ricochet, bullet-resistant deal tray and a stainless steel N666 Level 3 speak-thru for clear voice transmission. Glazing provides Level 1 bullet resistance. For exterior applications, an overhang or awning is recommended. Two frame finishes and two sizes are available from stock—ideal for bank teller exchange windows, security transaction counters, and customer-service vestibules.
SPECIFICATIONS:
Materials: Frame - .125" (3.2 mm) extruded 6063-T5 aluminum alloy; Glazing - 1-1/4" (32 mm) Level 1 acrylic; Shelf - stainless steel
Finishes: Frame - Satin Anodized or Bronze Anodized; Shelf - Brushed Stainless Steel #4, 16 gauge
Speak-Thru: N666 Level 3 stainless steel
Deal Tray: Level 1 protection
Instructions Included
Most shipping weights are approximate and have not been verified. If the exact weight is needed to calculate shipping costs before you complete your order, please request this information from CRL Customer Service. Product images are actual or close representations; colors may vary with monitor settings.
Order the S1EW3636DU bullet-resistant inset exchange window now to upgrade your secure transaction counter—contact CRL or add to cart today.
