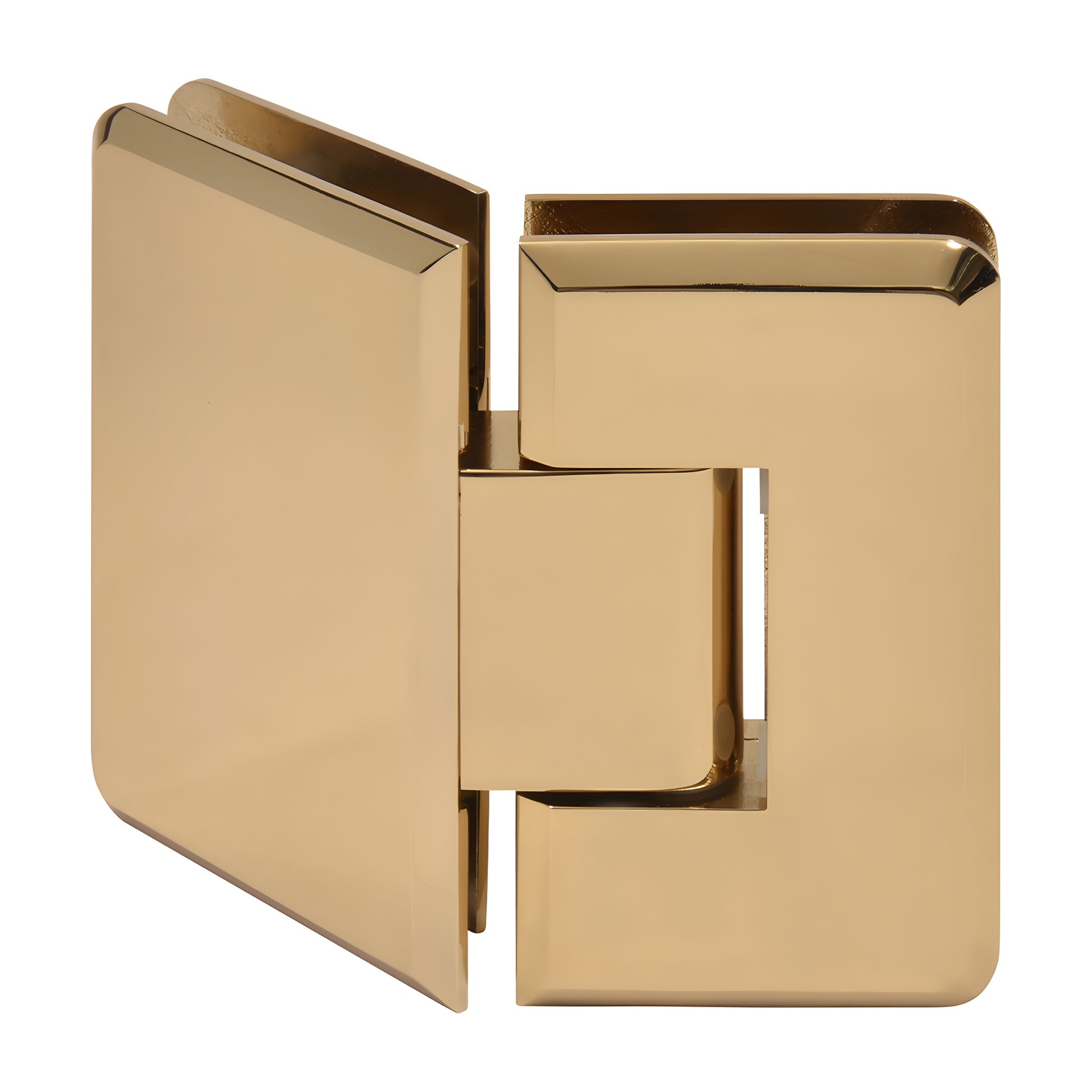

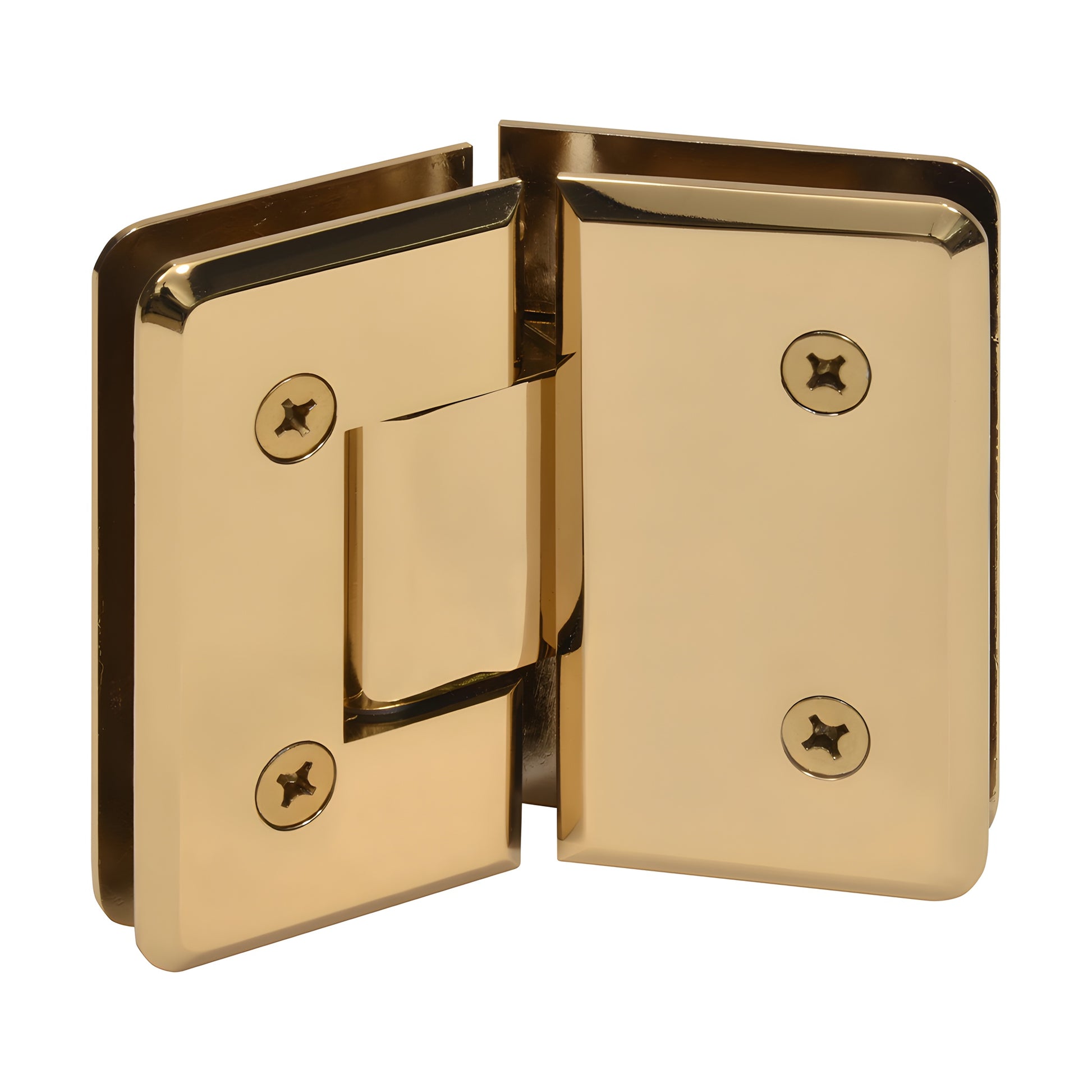

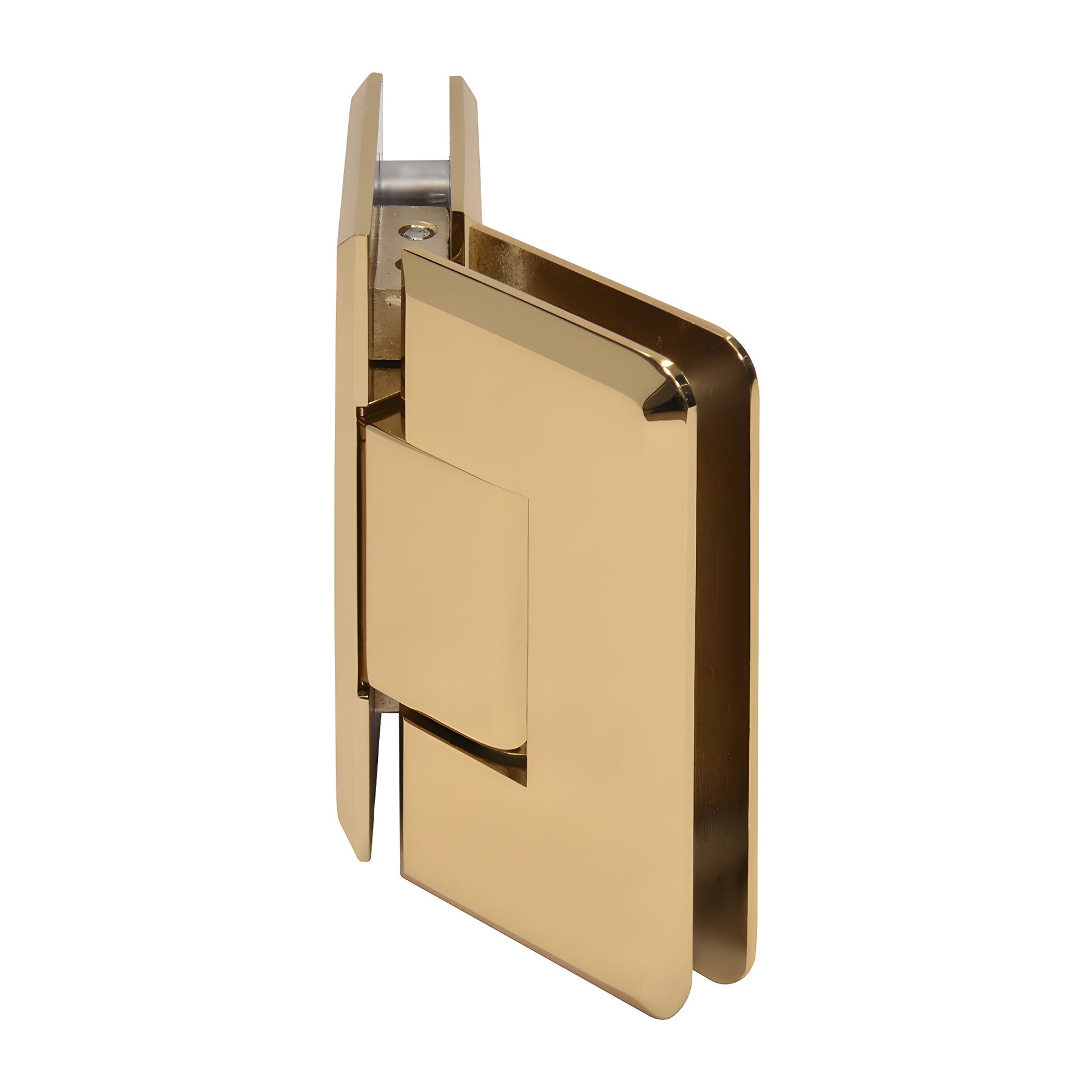

CRL 045 Series 135° French Gold Cologne Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (custom finishes on request)
• 135° glass-to-glass option
• Use monolithic tempered glass

CRL Cologne Hinges (SKU: C0L045FG) — a heavy-duty, solid brass shower door hinge designed for wider, heavier shower doors where standard hinges fail. Similar to Vienna hinges but with radius corners and beveled edges for a sleek, modern look. Two internal steel pins provide mounting flexibility: leave pins in for CRL "mouse-ears" cut-outs (safer for mouse-ear styles) or remove pins for increased adjustability to fit CRL rectangular square-corner cut-outs and, in some cases, competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship set to 90°. Rotate the pin (not flip) to activate the 85° side for a 5° tighter closure into the shower interior. Pre-set models ship with 85° activated.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) to improve door closing where walls are not square.

Load Capacity: Using two hinges with 3/8"–1/2" glass the hinge will hold up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm). Using three hinges with 3/8"–1/2" glass the hinge will hold up to 140 lbs (63 kg) with a maximum width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass heavy-duty construction
Hinge Swings: 90° in and 90° out (self-centering within 15° of closed position)
Cut-Out Required: Cut-out required — except C0L092 (requires cut-out for door plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available — contact CRL Technical Sales Department.

Product Warning:

CRL shower door hinges are intended for residential or hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; CRL cut-out
