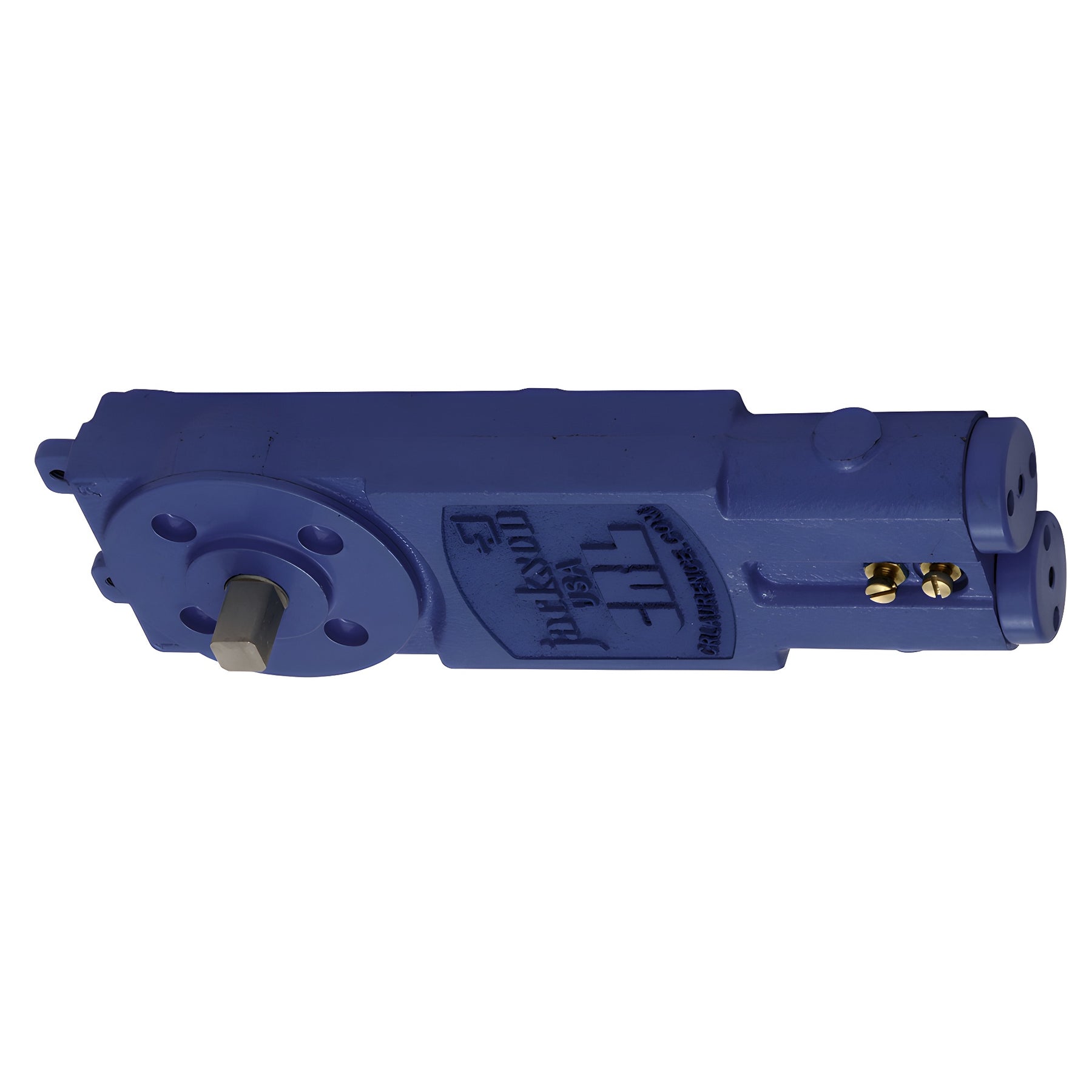

CRL Jackson® Adjustable Concealed Overhead Door Closer, 90° Hold-Open
CRL Jackson® Adjustable Concealed Overhead Door Closer, 90° Hold-Open
Regular price
$349.34 CAD
Regular price
Sale price
$349.34 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 20104M20
Shipping Weight: 8.7 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.7 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16 in. (42.9 mm)
Body Length
11-5/8 in. (295.3 mm)
Body Width
3-11/16 in. (93.7 mm)
Case Quantity
4
Closer Type
Overhead Concealed
Door Height
96 in. (2438.4 mm)
Handing
Double Acting
Hold Open
90°
Maximum Door Weight
250 lbs. (113.4 kg)
Maximum Door Width - Exterior
42 in. (1066.8 mm)
Maximum Door Width - Interior
36 in. (914.4 mm)
Recommended Door Type
Aluminum, Hollow Metal
Spindle
7/8 in. (22.2 mm)
Spring Size
Adjustable
UL Listed
Yes
Overview
- Adjustable Spring Power Size 1 (Barrier-Free) to Size 4 (Regular)
- Can retrofit existing fixed spring overhead concealed closers
- Available in standard and 7/8" extended spindle models for glass doors
- 5 Year Limited Warranty

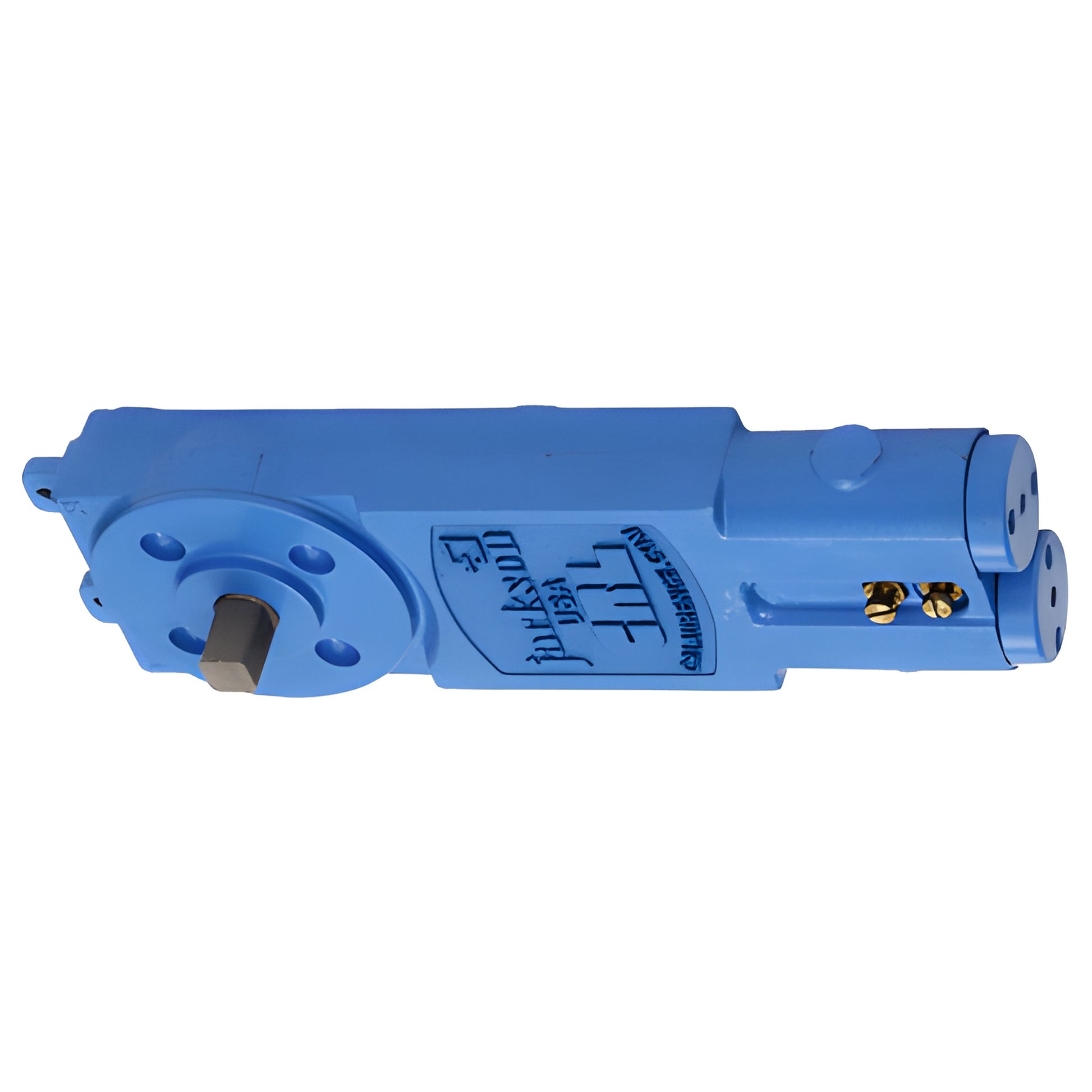

This CRL Jackson® Adjustable Spring Power Overhead Concealed Closer Body (SKU: 20104M20) is engineered for A.D.A. barrier-free installations and is ideal for glass doors using Patch Fittings or Rail Hardware. The 7/8" extended spindle provides the preferred length for most glass door hardware applications. Spring power adjusts from Size 2 through Size 4 using Patented Dual Compression Technology for finer tension control and improved spring efficiency. Fully independent hydraulic valves allow precise control to balance building codes, stack pressure and secure door closing. This closer body easily retrofits most fixed-spring overhead concealed closers and is specified by professionals worldwide for overhead concealed door applications.
A.D.A. NOTE: Although the adjustable spring power can be reduced for A.D.A. opening force requirements, adequate closing force may not be achievable for every site condition while remaining fully A.D.A. compliant.
Product Warning:
Closers adjusted to meet A.D.A. opening force limits might not provide sufficient spring power to control and close doors of certain sizes or under varying site conditions. Mounting clips are not included — use existing clips or purchase the correct Mounting Clip Package for your application. Contact Jackson® Technical Sales Department for assistance selecting the proper clip package.
Need help choosing the right mounting clip or confirming compatibility with your glass door hardware? Contact us or call Jackson® Technical Sales to get assistance and place your order.
