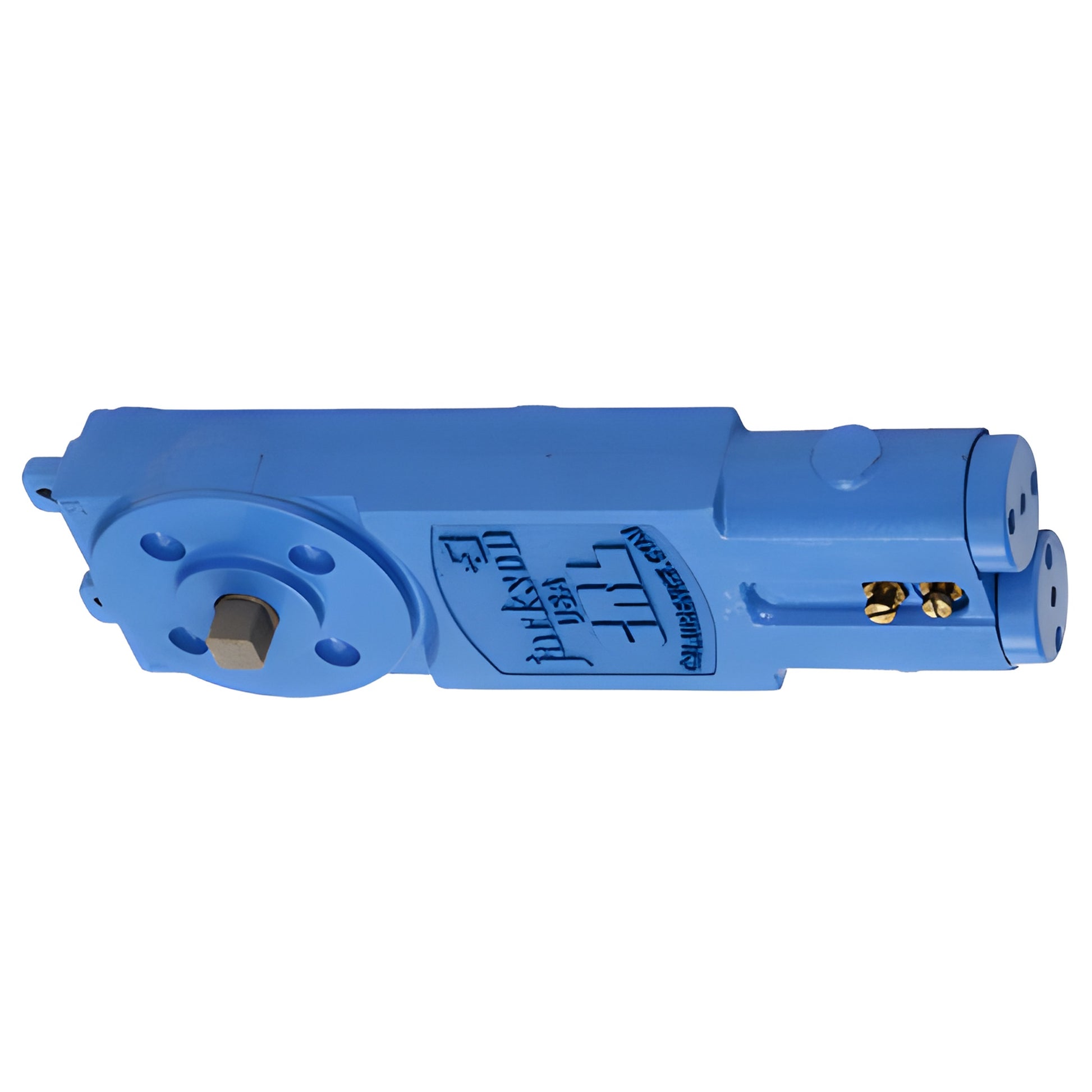

CRL Jackson® Adjustable Overhead Concealed Door Closer 90° Hold-Open
CRL Jackson® Adjustable Overhead Concealed Door Closer 90° Hold-Open
Regular price
$343.67 CAD
Regular price
Sale price
$343.67 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 20101M20
Shipping Weight: 9.1 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.1 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16 in. (42.9 mm)
Body Length
11-5/8 in. (295.3 mm)
Body Width
3-11/16 in. (93.7 mm)
Case Quantity
4
Closer Type
Overhead Concealed
Door Height
96 in. (2438.4 mm)
Handing
Double Acting
Hold Open
90°
Maximum Door Weight
250 lbs. (113.4 kg)
Maximum Door Width - Exterior
42 in. (1066.8 mm)
Maximum Door Width - Interior
36 in. (914.4 mm)
Recommended Door Type
Aluminum, Hollow Metal
Spring Length
1/2 in. (12.7 mm)
Spring Size
Adjustable
UL Listed
Yes
Overview
- Adjustable spring power: Size 1 (Barrier-Free) to Size 4 (Regular)
- Can retrofit existing fixed-spring closers
- Standard and extended spindle models
- 5 Year Limited Warranty

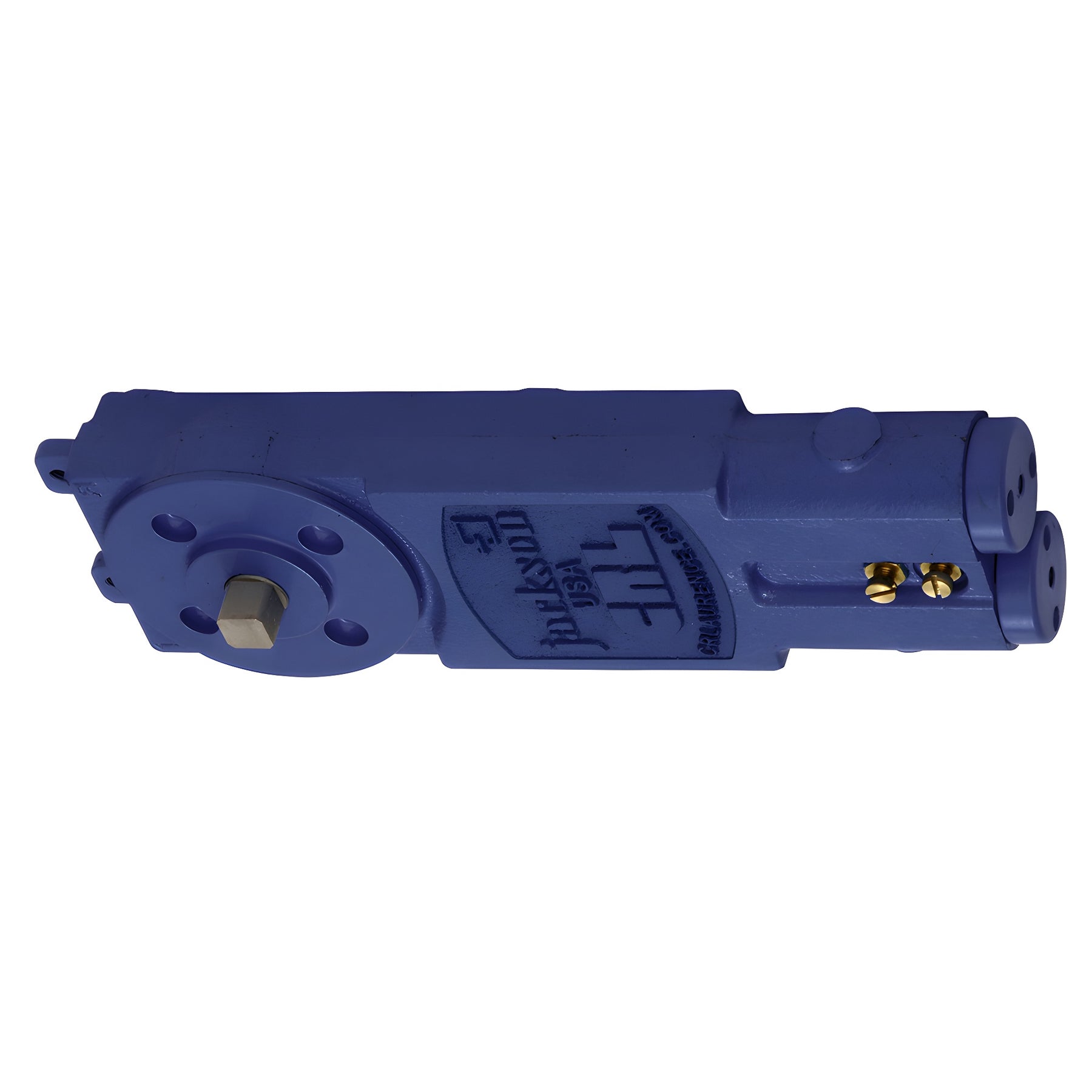

This CRL Jackson® Adjustable Spring Power Overhead Concealed Closer Body (SKU: 20101M20) is an adjustable overhead concealed door closer suitable for doors approximately 30" to 42" (762 mm to 1.07 m) wide, depending on selected spring size and function. Features include dual-action valves for independent closing and latching speed adjustment, a 90° hold-open option, and compatibility with standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions. Interchangeable with Jackson® and similar overhead concealed closers, it is ideal for retrofit projects where replacing a fixed spring closer is required.
A.D.A. NOTE: Although the adjustable spring power can be reduced to meet A.D.A. opening force limits, doing so may reduce closing force and might not provide adequate door control for some site conditions or larger doors.
Product Warning:
Closers adjusted to meet A.D.A. opening force requirements may not have sufficient spring power to reliably close the door under all site conditions. Mounting clips are not included; reuse existing clips or purchase the correct Jackson® mounting clip package for your application. Contact Jackson® Technical Sales for assistance selecting the appropriate clip package.
Need help confirming fit or selecting mounting clips for SKU 20101M20? Contact our technical team or add to cart to begin your retrofit project.
