CRL
CRL Jackson Adjustable Concealed Door Closer 105° Hold-Open U-Offset
CRL Jackson Adjustable Concealed Door Closer 105° Hold-Open U-Offset
Regular price
$465.79 CAD
Regular price
Sale price
$465.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21201U62818
Shipping Weight: 11.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Brand
Jackson
Case Quantity
4
Closer Type
Overhead Concealed
Finish/Color
Aluminum
Handing
Non Handed
Hold Open
105°
Includes
20101M18, 201381, 20942628, 20368
Material
Aluminum
Maximum Door Weight
250
Package Type
Offset Arm U
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20106628, 20190628, DCH4SAS, 20900LC628
Similar
21201S62817
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
7/8
UL Listed
Yes
Overview
- U Offset Slide-Arm Hardware Package for Doors with 7/8" (22.2 mm) shallow top rails
- Spring power adjustable closer — fits doors 30" to 42" (762 mm to 1.07 m) wide
- Ten‑year limited warranty; U.L. listed

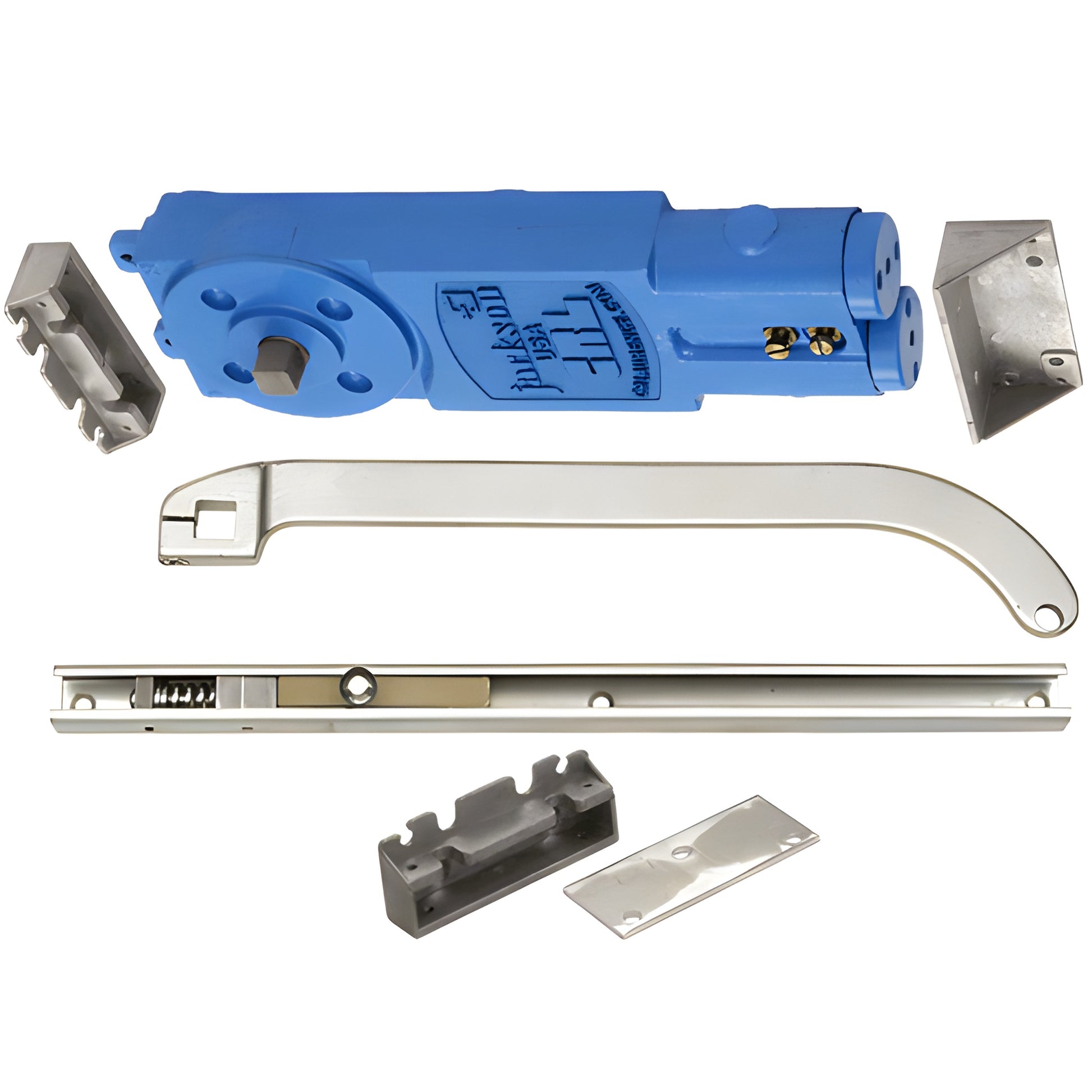

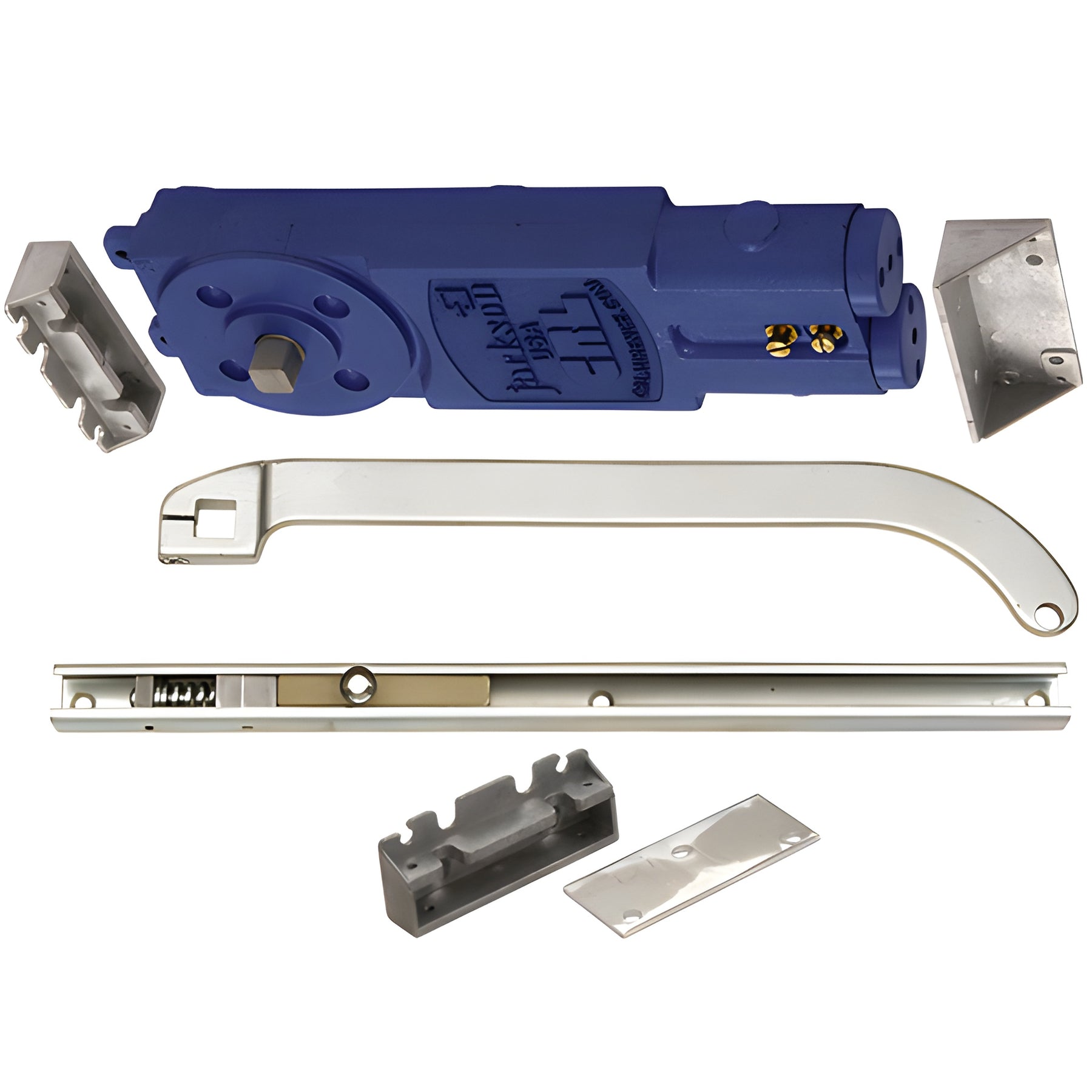

The CRL Jackson® 21201 Series Overhead Concealed Closer with U‑Offset Slide‑Arm Hardware Package (SKU 21201U62818) is a packaged overhead concealed door closer system designed for shallow top rails and commercial doors 30"–42" wide. The kit includes the Spring Power Adjustable Closer mechanism, Cat. No. 201387 mounting clips, 20942 offset arm package, 20368 slide channel, and complete installation instructions for quick field installation into standard 1-3/4" x 4" (or larger) header extrusions. The closer features dual independent valves for precise closing and latching speed control and a 105° hold‑open with fixed, adjustable spring power for reliable controlled closing on interior or exterior doors.
Order the CRL Jackson 21201 Series overhead concealed closer with U‑offset slide‑arm hardware (SKU 21201U62818) today — contact CRL or your authorized distributor to get pricing and availability.
