CRL Jackson® Regular Duty Spring 105º No Hold Open Overhead Concealed Closer with 'U' Side-Load Hardware Package
Item # 21101U01
Spring Size (2)
- Regular
- Regular Duty
Overview
| SKU | 21101U01 |
|---|---|
| Sold As | 1 Each |
| Arm Type | 'U' Side-Load |
| Body Height | 1-11/16 |
| Body Length | 11-5/8 |
| Body Width | 3-11/16 |
| Bottom Door Rail Depth | 1-1/2 |
| Bottom Pivot Type | Threshold Mount Pivot |
| Brand | Jackson |
| Closer Type | Overhead Concealed |
| Handing | Double Acting |
| Includes | 20101M01, 201380, 20400B, 20944 |
| Material | Aluminum |
| Maximum Door Weight | 250 |
| No Hold Open | 105° |
| Package Type | Side Load U |
| Recommended Door Type | Aluminum, Hollow Metal |
| Replacement Parts | 20190628, 20190313, 20510, HMC035, DCHSAS, CRL8010SCP, SLB3, SLS1 |
| Similar | 21101GE01, 21101U01 |
| Spindle | 1/2 |
| Spring Size | Regular Duty |
| Top Rail Depth | 1/2 |
| Type | Center Hung |
| UL Listed | Yes |
Description
- U-Center-Hung, Side-Load Hardware Package for Doors with 1/2" Deep Top Rails
- Suitable for Doors From 30" to 48" (762 mm to 1.22 m) Wide
- Ten Year Limited Warranty U.L. Listed

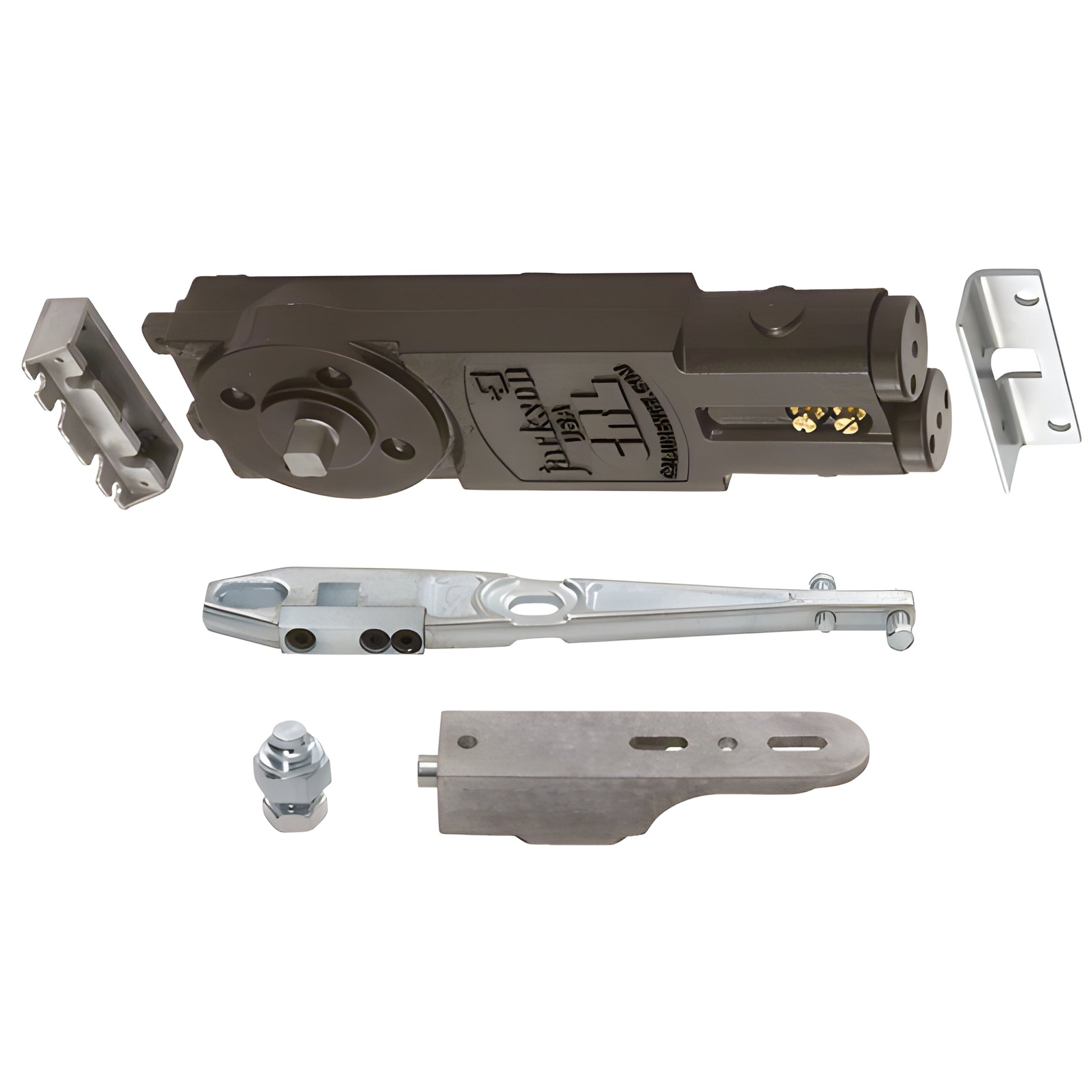

The CRL Jackson® 21101 Series Overhead Concealed Closer with 'U' Side-Load Hardware Package consists of a Closer mechanism, which depending on the selected spring size and function, is suitable for a range of doors from 30" to 48" (762 mm to 1.22 m) wide. The Closer is packaged complete with Cat. No. 201380 Mounting Clips, 20400B Side-Load Arm, Type "GE" 20944 Bottom Pivot Set for Threshold mounting, and complete installation instructions. The Closer has dual independent valves for closing and latching speeds. 105º No Hold Open with fixed regurlar duty. Door Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.
Specifications
CRL Jackson® Regular Duty Spring 105º No Hold Open Overhead Concealed Closer with 'U' Side-Load Hardware Package
21101U01
