CRL Jackson® Dark Bronze Right Hand 3/4" Offset Pivot Hinge Set - Flush with Frame Face

Finish (2)

Aluminum
Dark Bronze

Overview

SKU	0P25RHDU
Sold as	1 Each
Bottom Door Clearance Adjustment	1/8 in. (3.2 mm)
Brand	Jackson
Door Weight	125 lbs. (56.7 kg)
Finish/Color:	Dark Bronze
Handing	Right Hand
Material	Aluminum
Pivot Series	OP25
Pivot Set	Yes
Pivot Style	Flush With Face Frame
Pivot Type	Offset
Recommended Door Type	Aluminum Store Front

Description

Product Details

1/8" (3 mm) Vertical Adjustment
Diecast Aluminum
Suitable for Aluminum Frames and Doors Weighing Up to 125 Lbs. (57 kg)
Handed - Not Reversible

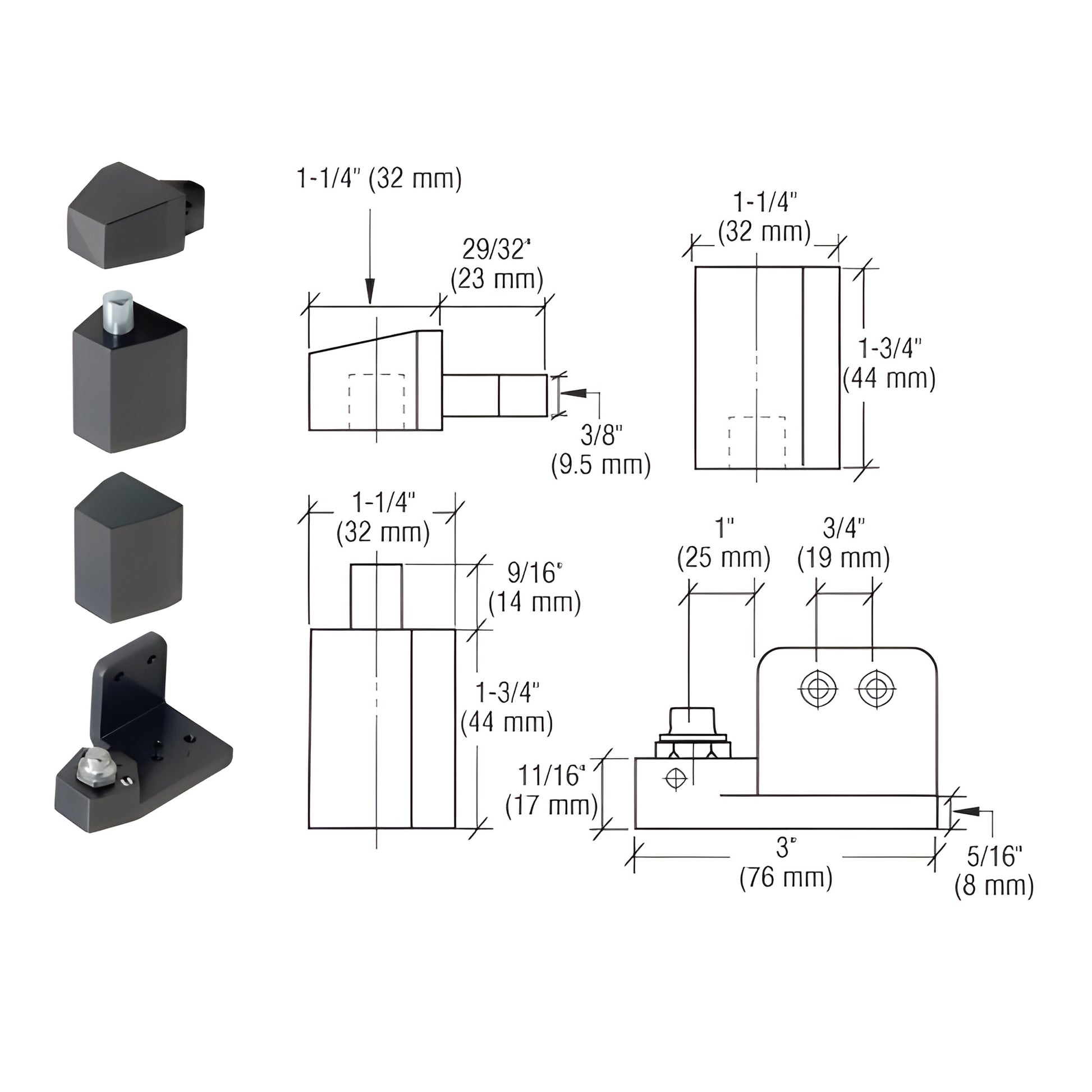

CRL Offset Pivot Sets for commercial doors feature quality machined and diecast components in combinations to accommodate just about any commercial door. Everything you need comes in one box, including the door fasteners and anchors. Each has been illustrated with dimensions for ease of selection. Left or right hand Pivot Sets are available in satin aluminum and dark bronze finishes. One set per package.
