CRL 180Β° Light-Spring No-Hold-Open Narrow Floor-Mounted Door Closer
CRL 180Β° Light-Spring No-Hold-Open Narrow Floor-Mounted Door Closer
Regular price
$225.79 CAD
Regular price
Sale price
$225.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8422
Shipping Weight: 8.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Auxiliary Stop Recommended
Yes

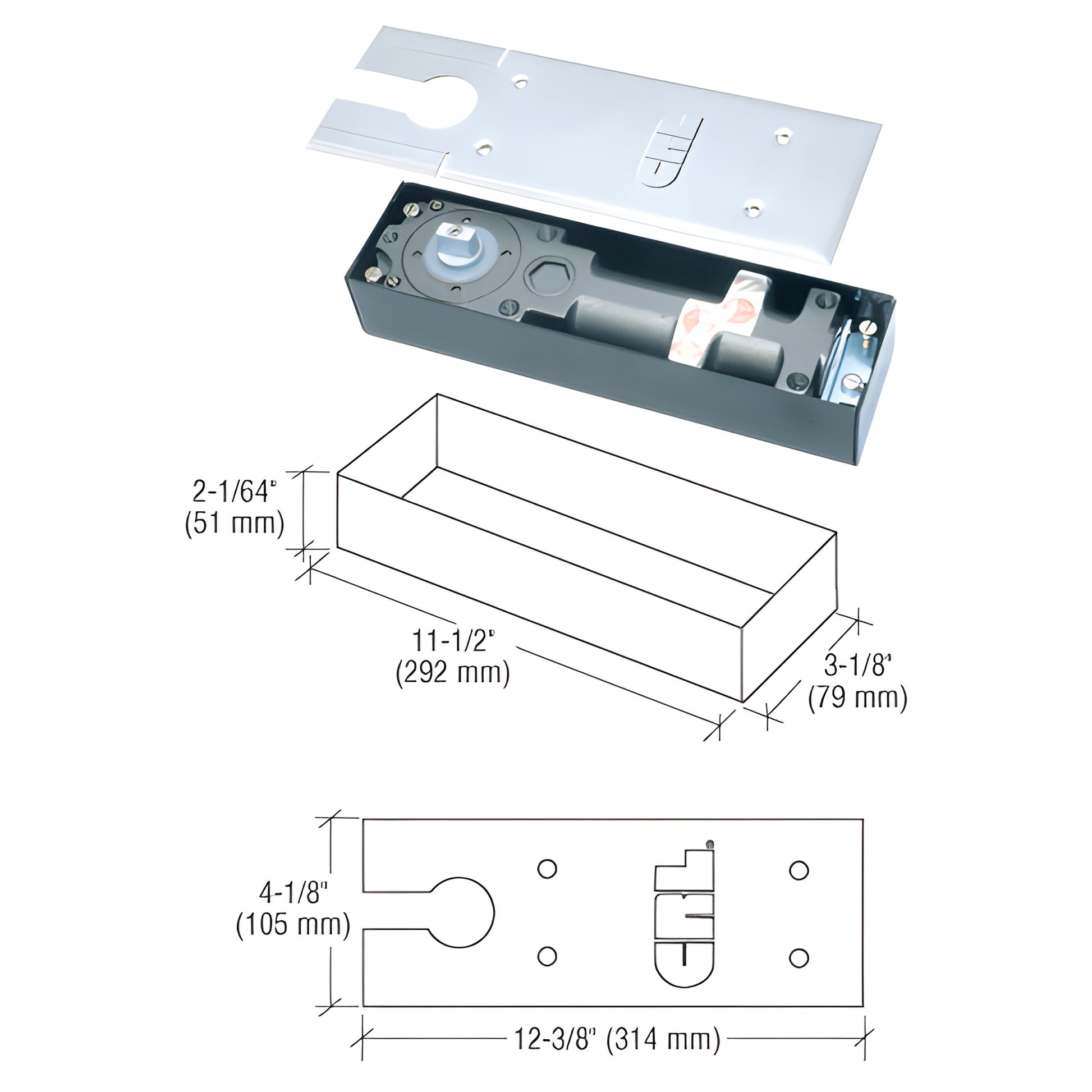

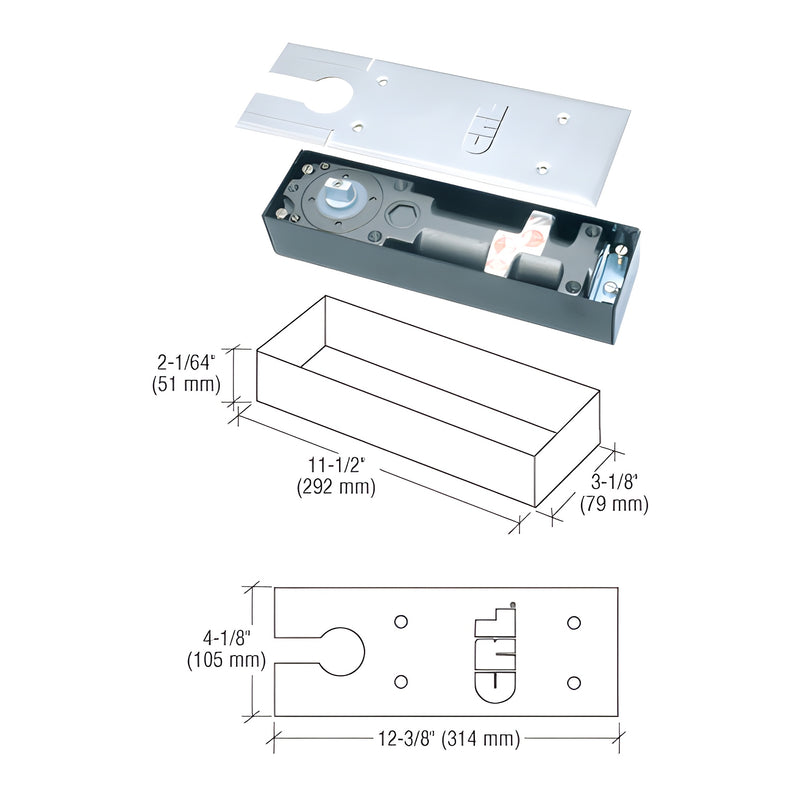

Body Height
2-1/64
Body Length
11-1/2
Body Width
3-1/8
Closer Body With Box
Yes
Closer Type
Floor Closer
Door Height
96
Handing
Double Acting
Includes
CRL84CB, CRL9040S2
Independent Closing and Latching Valves
Yes
Interchangeable Spindles
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
48 Inches
Maximum Door Width - Interior
54 Inches
Maximum Weight Center Hung
264
No Hold Open
180Β°
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL84CB, CRL9040S3
Similar
CRL8532, J990NHOD
Spindle Included
Yes
Spring Size
Light
UL Listed
Yes
Overview
- Perfect floor closer for CRL patch hardware installations
- Interchangeable spindle heights for varied finished floor clearances
- 5 Year Limited Warranty
- UL Listed
CRL Narrow Width Floor Mounted Door Closers (SKU: CRL8422) are designed for glass doors with patch hardware where smaller, low-profile cover plates are preferred. The closer features separate valves to precisely control closing and latching speeds and is available in 90Β° hold-open and no hold-open modelsβideal for commercial glass door applications and storefront entrances.
The closer ships with a 1/8" (3 mm) collar spindle providing a 5/16" (8 mm) clearance from finished floor to door bottom. Optional spindles are available to accommodate different finished floor heights. Compatible accessories include cover plates, pivots, center-hung arms, and offset arms.
Note: Designed to open to a maximum of 180Β°. An auxiliary floor or overhead stop is required to limit the door to less than 180Β°.
Specifications
Maximum Door Weight: 264 lbs (120 kg)
Maximum Interior Door Width: 42" (1.07 m)
Maximum Exterior Door Width: 38" (965 mm)
Product Warning:
The 8400 Series Floor Closer is designed to open to a maximum of 180Β°. An auxiliary floor or overhead stop is required to stop the door at less than 180Β°.
Contact CRL Sales to order SKU CRL8422 or request accessories and spindle options.
