CRL Matte Black 10 ft Mechanical Glazing Channel for 1/2 in Glass

• Available for 3/8", 1/2", and 3/4" (10, 12, and 19 mm) monolithic tempered glass
• Dry glazed, two-piece front-load clamp-on channel — no wet silicone glazing required
• Standard channel requires no holes in the glass (no-drill glass channel)
• Pre-drilled and tapped for Channel Clamps every 11-13/16" (300 mm) on center
• Available finishes: Satin Anodized and Brushed Brite Anodized
• Standard 10' (3.05 m) lengths

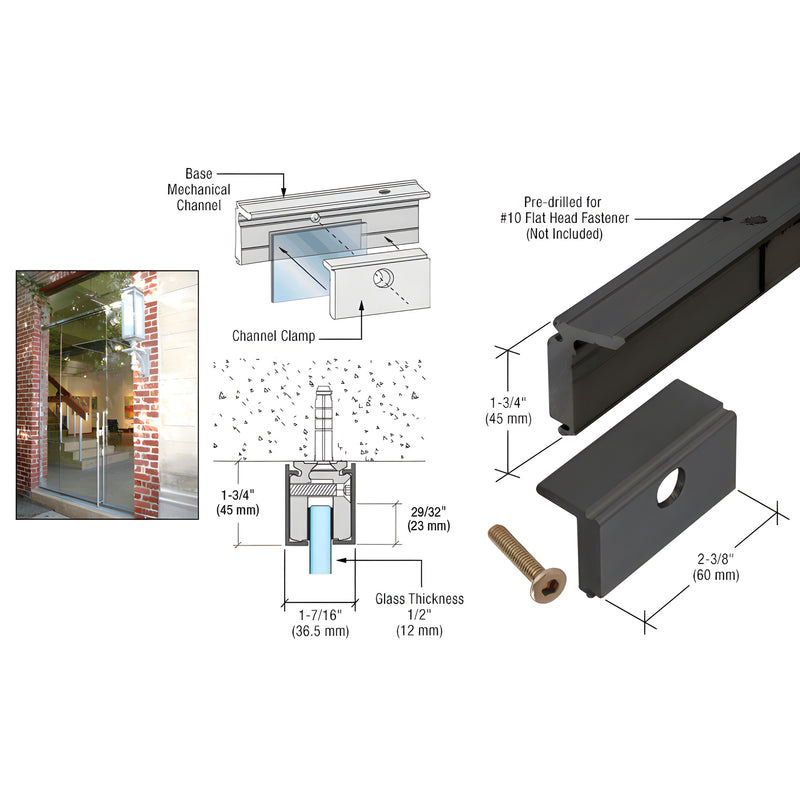

CRL Mechanical Glazing Channel (SKU: MGC12MBL) is a clamp-on, dry glazed system designed for easier installation where lift-and-drop methods are not possible. This front-load channel for tempered glass minimizes glass handling and eliminates wet silicone glazing, making it ideal for commercial storefronts, interior glass partitions, and architectural glazing projects that require a no-drill glass channel solution. Channel End Caps finish exposed ends.

NOTE: No holes are required in the glass. Kits include: one Base Channel, ten Channel Clamps with Screws, and two Decorative Snap-On Covers. End Caps are sold separately.

Product Warning:

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.

Order the MGC12MBL mechanical glazing channel for a no-drill, dry glazed clamp-on solution — contact CRL Customer Service to buy or request a quote.
