CRL Matte Black 10 ft Mechanical Glazing Channel for 3/4 in Glass

• Available for 3/8", 1/2", and 3/4" (10, 12, and 19 mm) glass
• Use monolithic tempered glass
• Standard channel requires no holes in the glass
• Available in multiple finishes
• Standard 10' (3.05 m) lengths

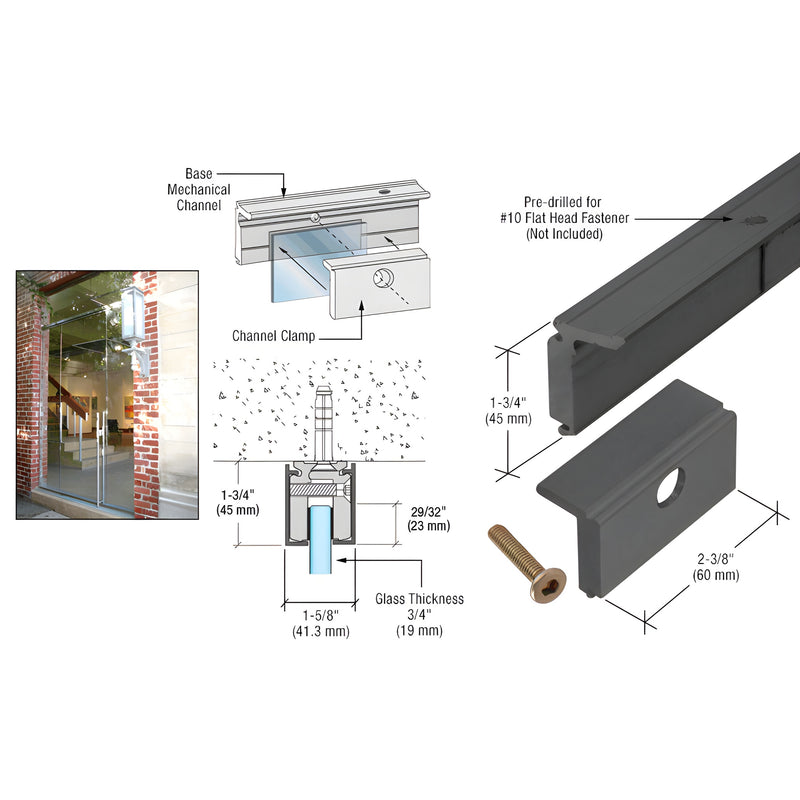

CRL Mechanical Glazing Channel (SKU: MGC34MBL) is a dry-glazed, two-piece front-load clamp-on channel designed for tempered glass panels where lift-and-drop installation is not possible. The clamp-on design and pre-drilled, tapped holes for channel clamps every 11-13/16" (300 mm) on center make on-site installation faster and reduce the need for wet silicone glazing. Decorative snap-on covers and optional end caps complete the finished look.

NOTE: No holes are required in the glass. Kits include one base channel, ten channel clamps with screws, and two decorative snap-on covers. End caps are sold separately.

Product Warning:

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.

Shop the MGC34MBL mechanical glazing channel for a dry-glazed, clamp-on solution for tempered glass panels — contact us to order or request a quote.
