CRL 10 ft Matte Black Mechanical Glazing Channel for 3/8 in Glass

• Available for 3/8", 1/2", and 3/4" (10, 12, and 19 mm) glass
• Designed for use with monolithic tempered glass
• Dry glazed mechanical glazing channel — no wet silicone required
• Two-piece front-load clamp-on channel for easier installation when lift-and-drop is not possible
• Standard channel requires no holes in the glass (no drilling through glass)
• Pre-drilled, tapped holes for channel clamps every 11-13/16" (300 mm) on center
• Available in multiple finishes
• Standard 10' (3.05 m) lengths

SKU: MGC38MBL

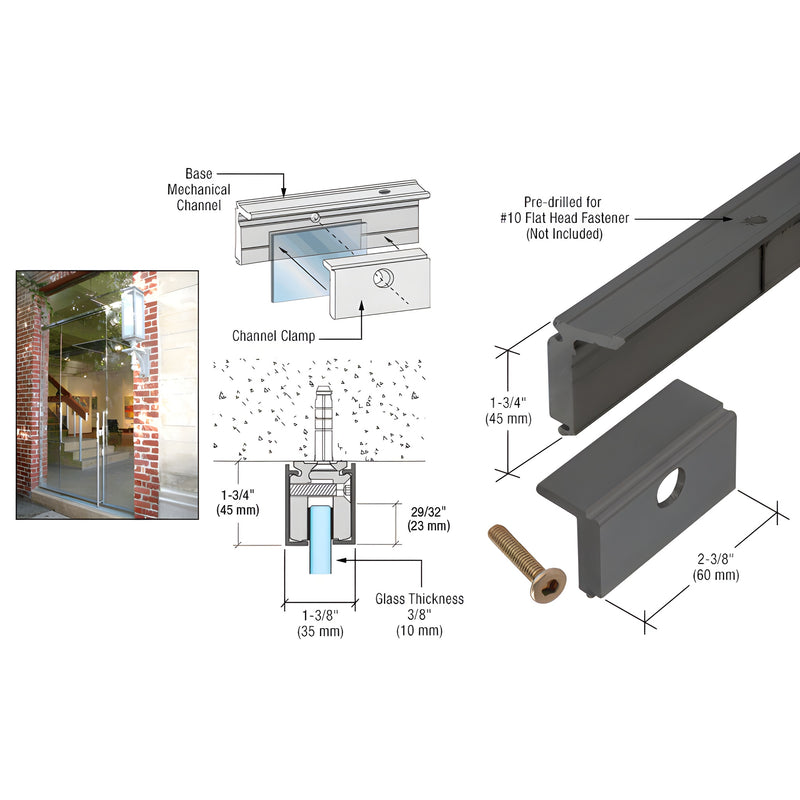

CRL Mechanical Glazing Channel is a dry-glazed system that eliminates the need for wet silicone glazing. The two-piece, front-load clamp-on design provides faster, cleaner installation for framed and frameless applications where lift-and-drop installation is not possible. Channel clamp mounting points are pre-drilled and tapped every 11-13/16" (300 mm) on center, and decorative snap-on covers and end caps finish the look.

Kit contents: one base channel, ten channel clamps with screws, and two decorative snap-on covers. End caps sold separately.

NOTE: No holes are required in the glass.

Product Warning:

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.

Ideal for contractors and architects specifying a no-hole, dry glazed channel for tempered glass partitions and railing projects. Order SKU MGC38MBL or contact CRL Customer Service to get pricing and availability.
