CRL Matte Black 11-Gauge Cap Rail for 1/2" & 5/8" Glass Panels
CRL Matte Black 11-Gauge Cap Rail for 1/2" & 5/8" Glass Panels
Regular price
$233.69 CAD
Regular price
Sale price
$233.69 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRL10MBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

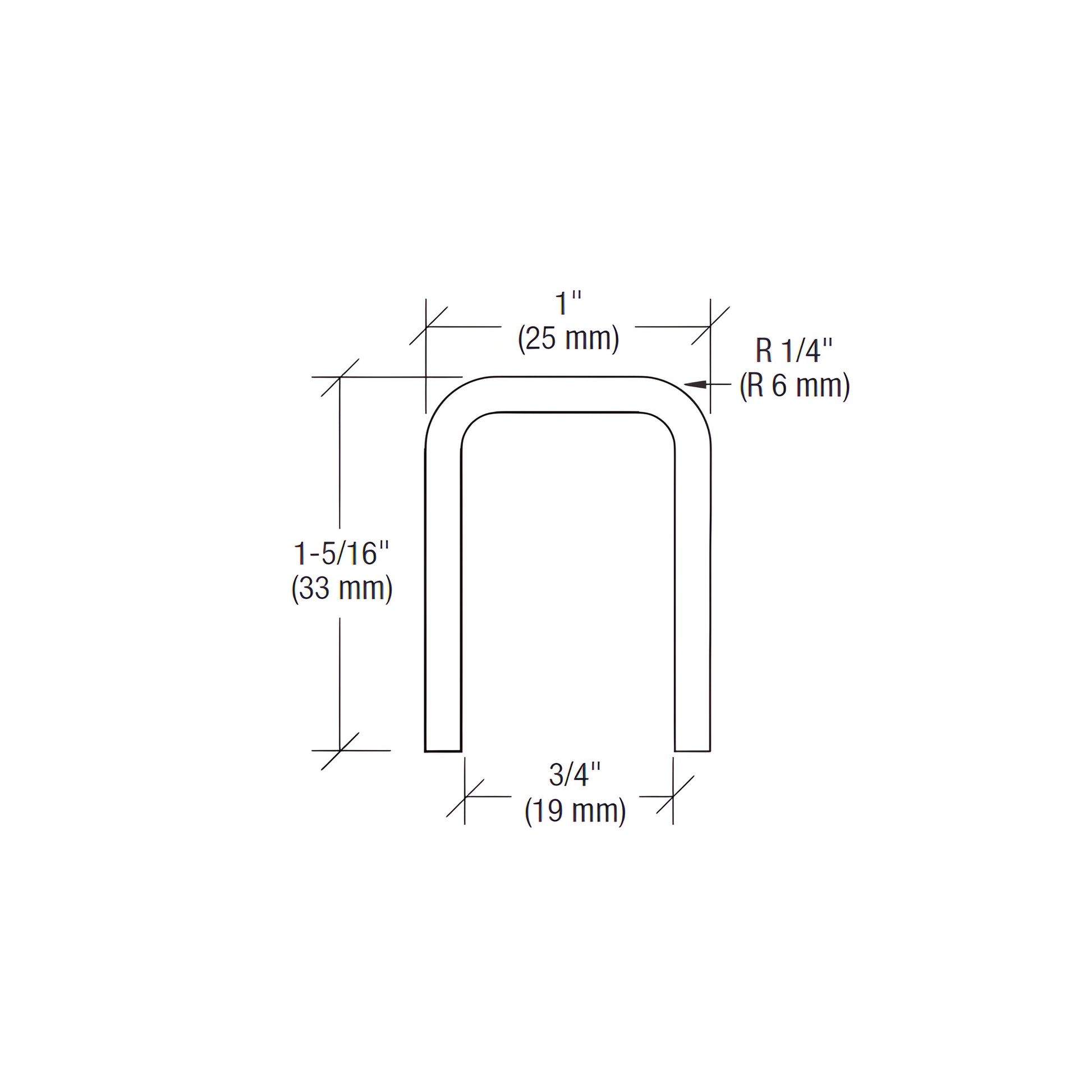

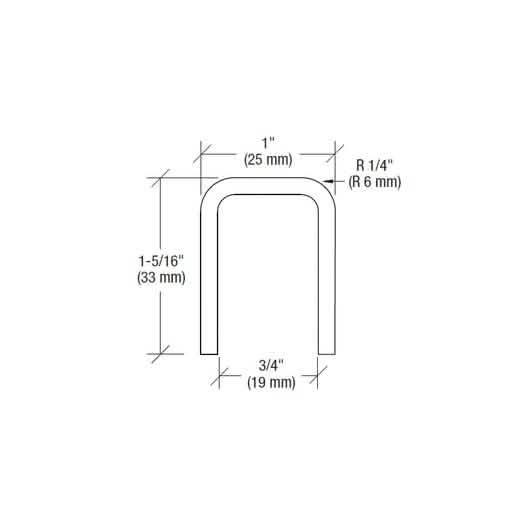

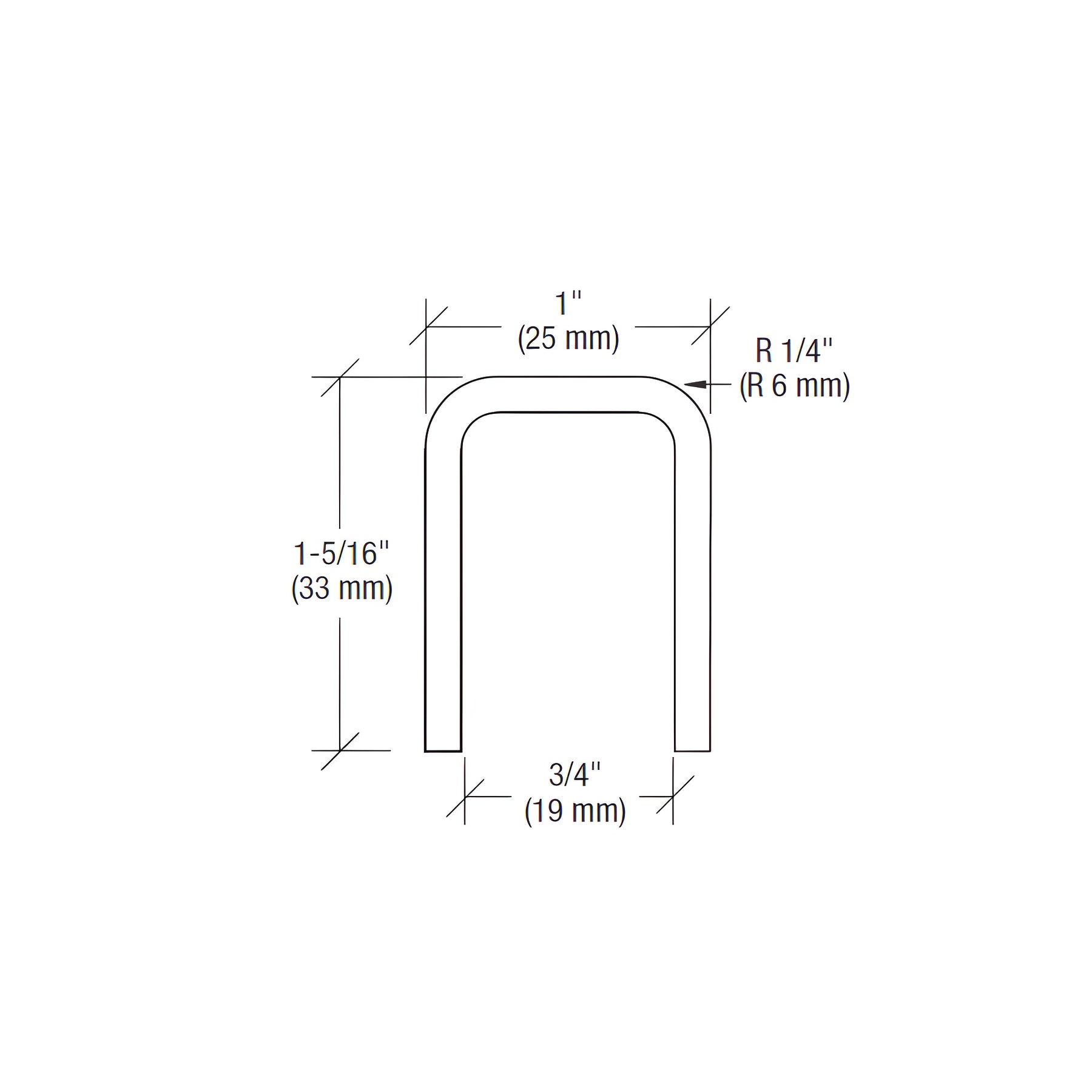

Description
Finish/Color
Matte Black
Glazing Thickness
1/2 in. & 5/8 in. (12 mm & 16 mm)
Height
1-5/16 in. (33 mm)
Length
120 in. (3048 mm)
Material
6063 - T5 Aluminum
Width
1 in. (25 mm)
Overview
- For 1/2" (12 mm) or 5/8" (16 mm) monolithic glass
- Designed for use as a top rail in guard rail and glass railing applications
- Protects glass edge and secures glass panels together
- Available in three architectural finishes
- Connects to fabricated corners and end caps

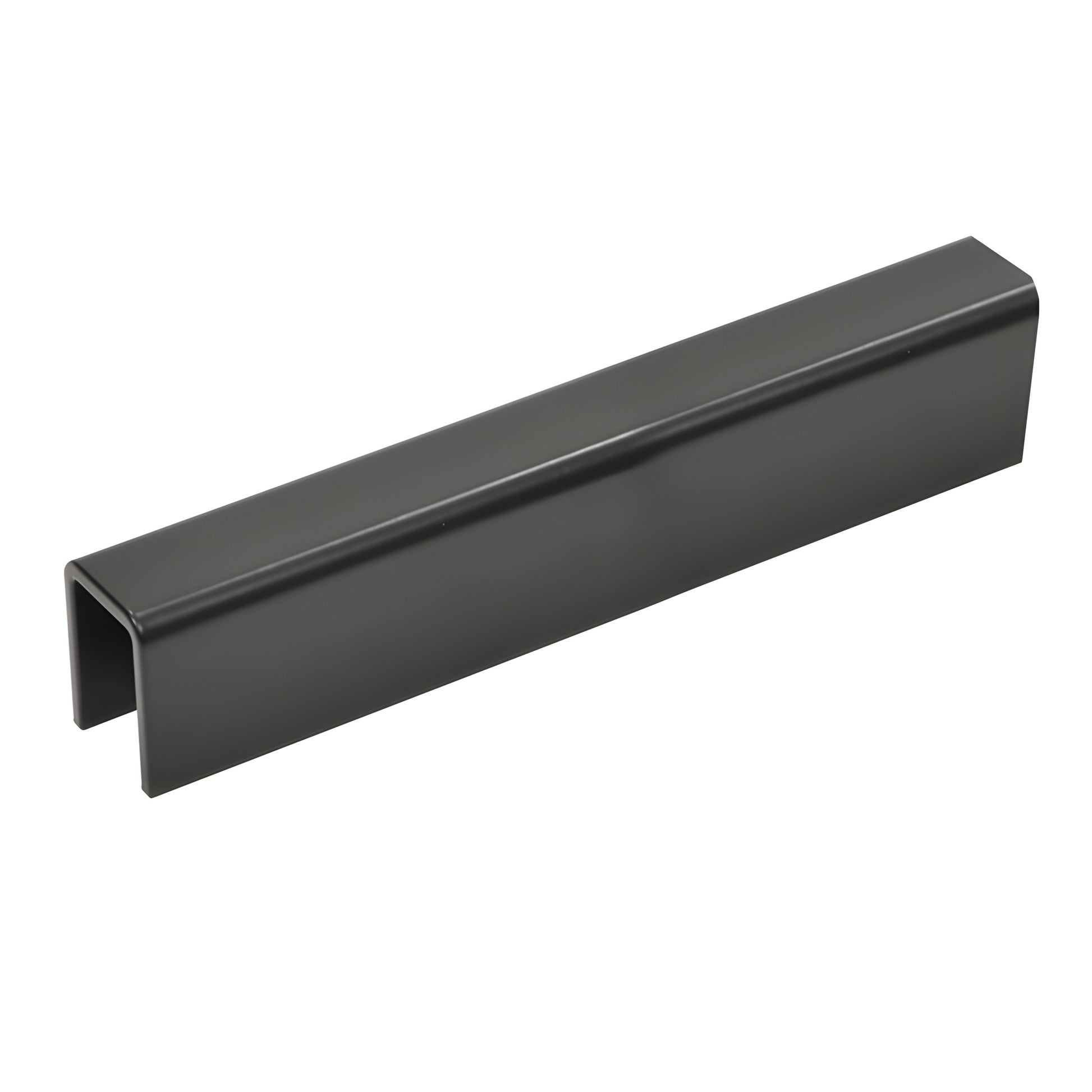

CRL Low Profile Cap Rail (SKU: GRL10MBL) is manufactured from 11 gauge aluminum for a durable, low-profile top rail that protects glass edges and secures panels in glass guardrail systems. Its slim profile and compatibility with fabricated corners and end caps make it ideal for architectural glass railing, balcony guardrails, and interior or exterior glass barrier installations.
NOTE: When used with 1/2" (12 mm) glass, use GR5PV cap rail vinyl and 95CBL silicone to secure the glass. When used with 5/8" (16 mm) glass, secure with 95CBL silicone and shims. Please contact CRL Technical Sales Department for additional installation guidance.
SPECIFICATIONS:
Stock Length: 10' (3.05 m)
Typical Uses: Protect edges of glass and secure glass panels together in cap railing and guardrail installations
Key differentiators: 11 gauge aluminum construction, low-profile design for sleek glass railing, three architectural finishes, and compatibility with fabricated corners and end caps for seamless installations.
Order SKU GRL10MBL or contact CRL for pricing and lead times.
Specifications
Engineering & Test Reports
