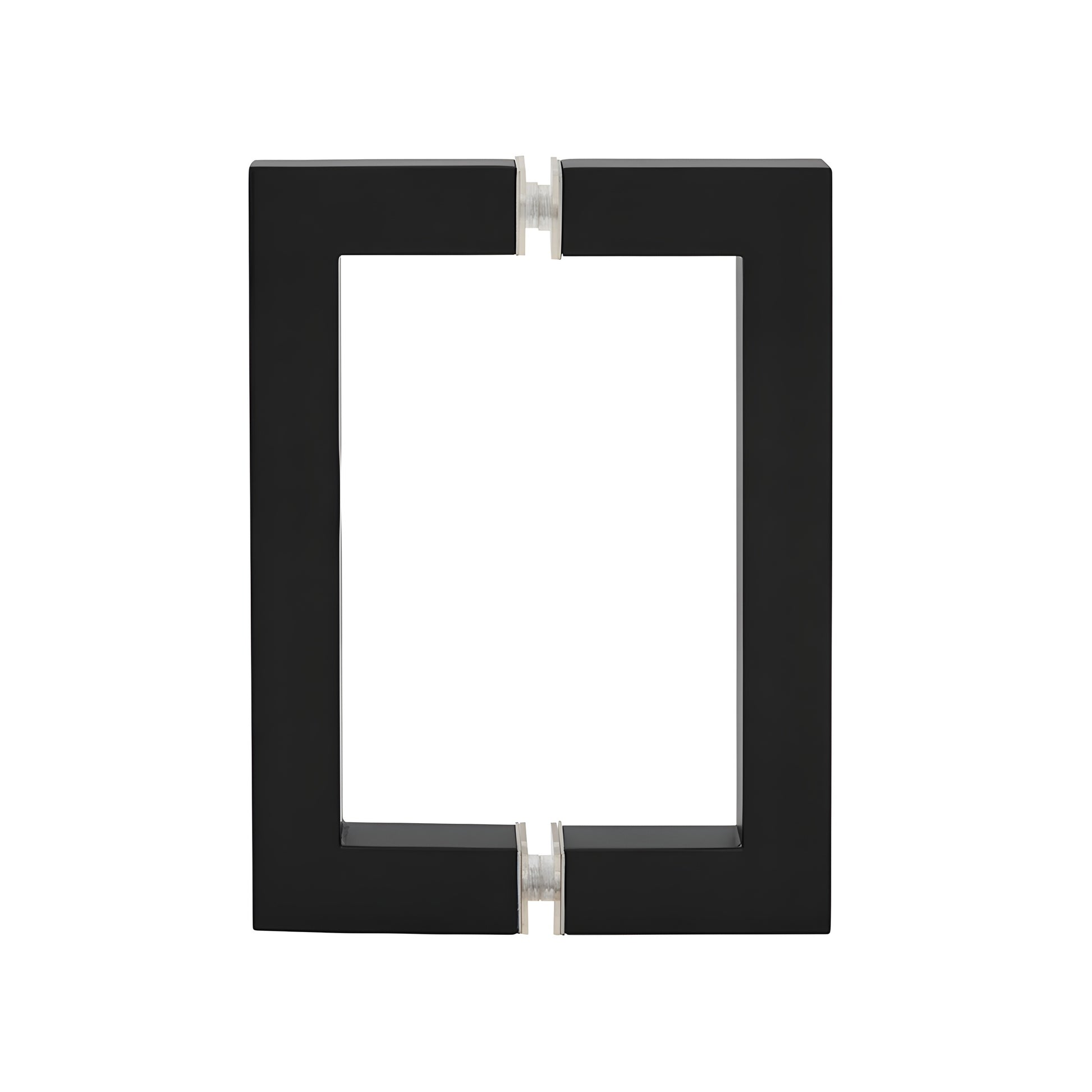

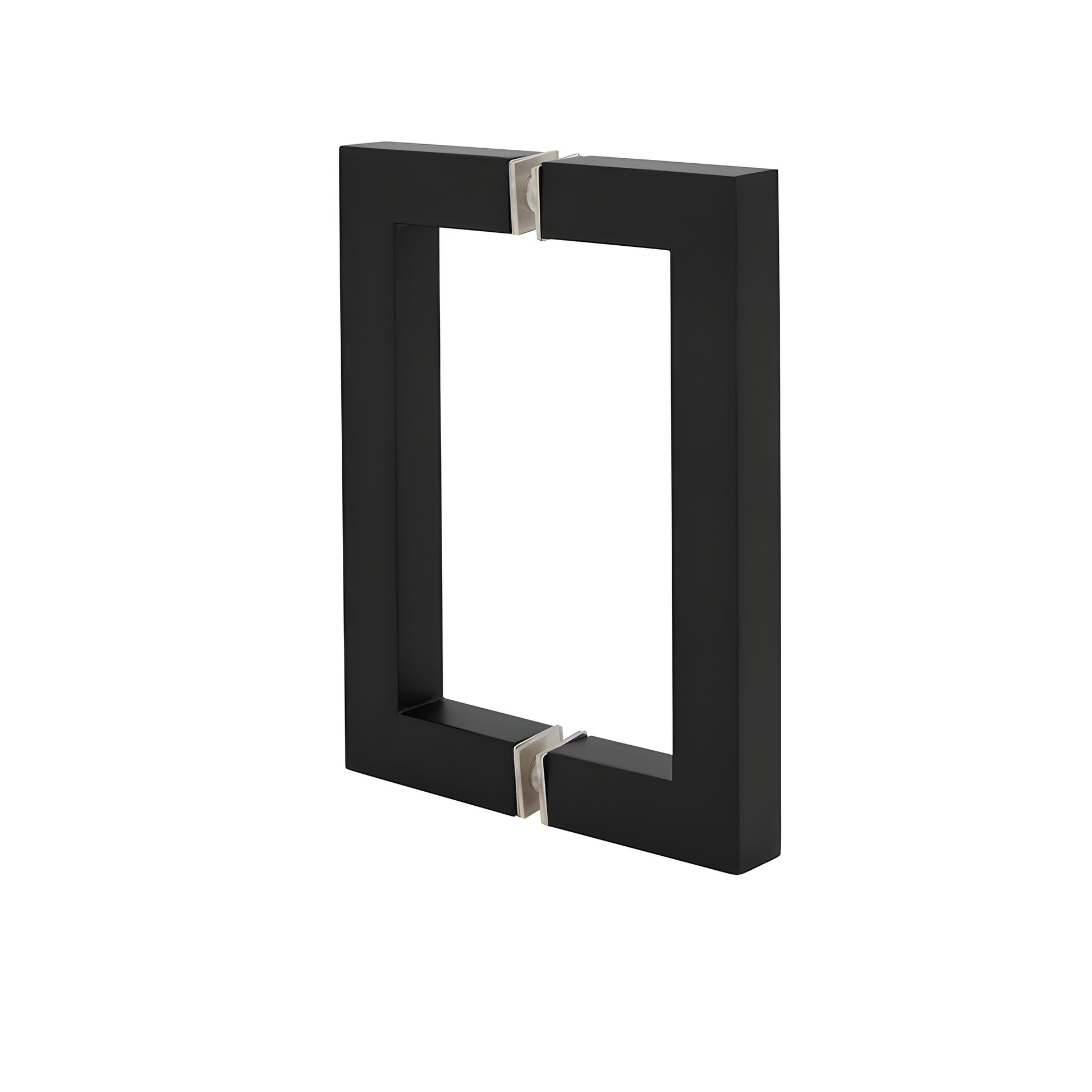

CRL Matte Black 6" x 6" SQ Series Square Tubing Back-to-Back Pull Handle

Construction

Tubular

Design Style

Squared

Diameter

3/4 in. (19 mm)

Enclosure Type

Corner, Niche, Bathtub, Tailor Made Solutions

Finish/Color

Matte Black

Glazing Thickness

1/4 in. To 1/2 in. (6 mm To 12 mm)

Material

Brass

Mounting Center To Center

6 in. (152 mm)

Mounting Type

Glass Mount - Back To Back

Opening Style

Slide, Fold, Swing(side), Pivot(floor)

Projection From Surface

2-1/2 in. (64 mm)

Series

SQ

Tube Profile

Square

Tube Size

3/4

Elevate your shower design with the CRL SQ Series Square Corner Handle – sleek, durable, and ideal for modern spaces.

Top Features:

• Available in two sizes: 6" and 8" (152 mm and 203 mm)
• Designed with clean square corners to match popular hinge styles
• Compatible with 1/4" to 1/2" (6 to 12 mm) monolithic tempered glass
• Available in a variety of designer finishes

Timeless Style Meets Function:
The CRL SQ Series Handle features sharp square corners for a clean, modern aesthetic that complements hinge styles such as Geneva, Vienna, Concord, and Cardiff. Each handle includes back-up washers and nylon spacers to protect against glass-to-metal contact.

Premium Construction:

• Made from 3/4" (19 mm) solid brass tubing

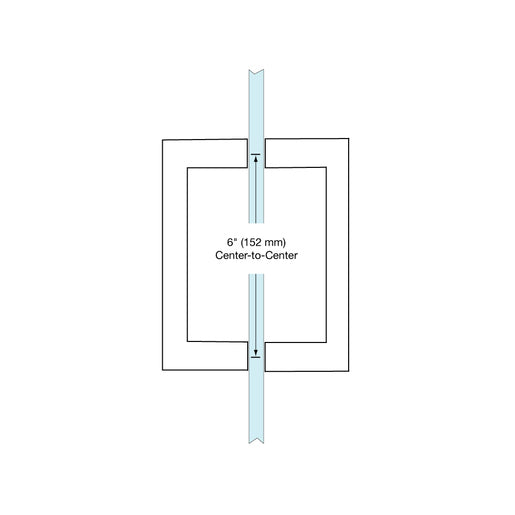

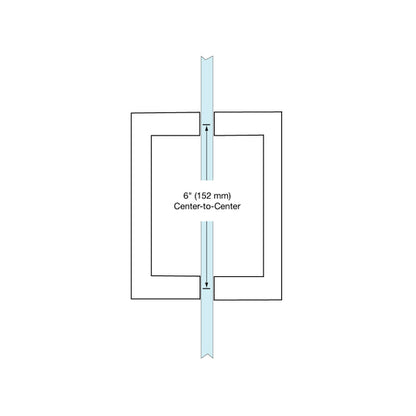

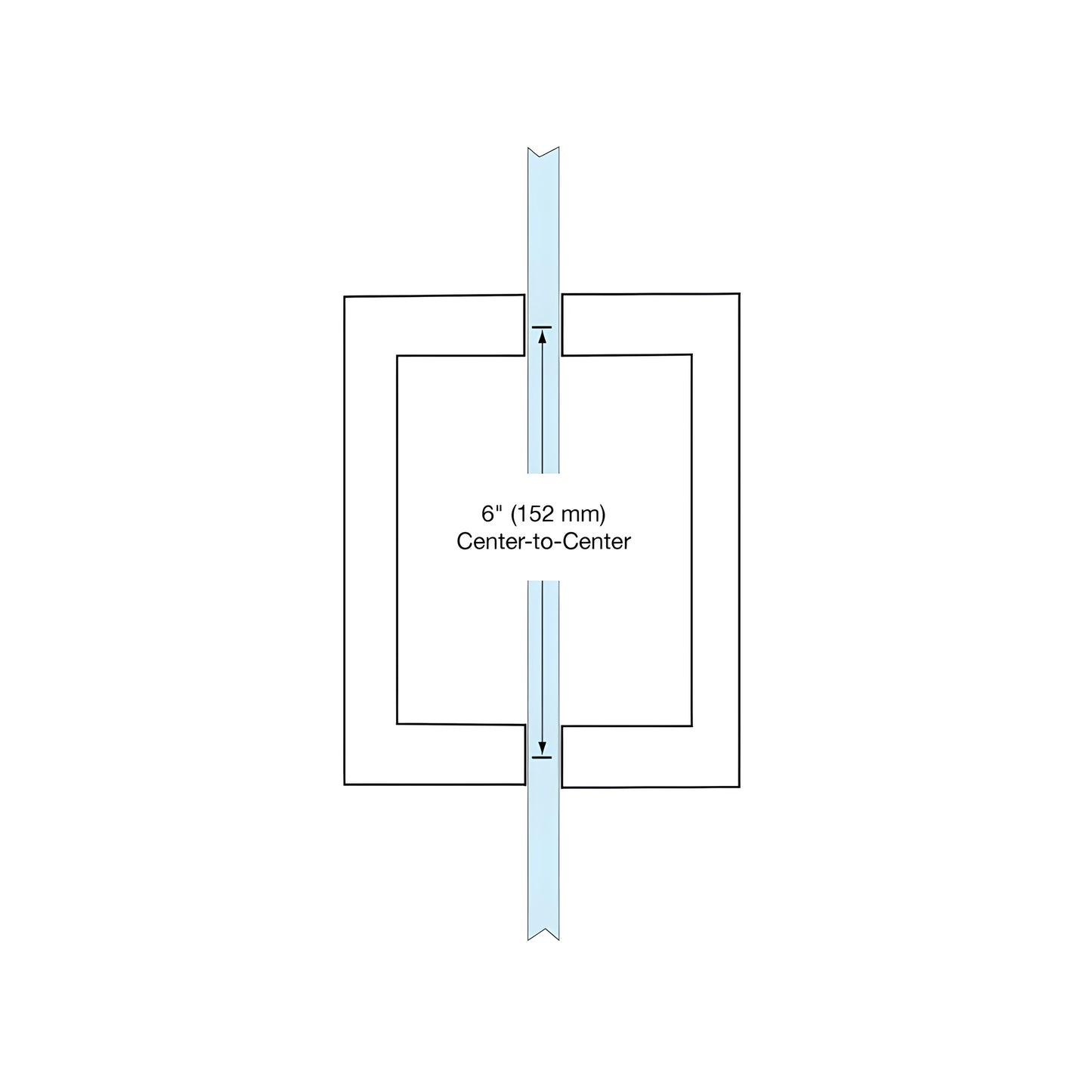

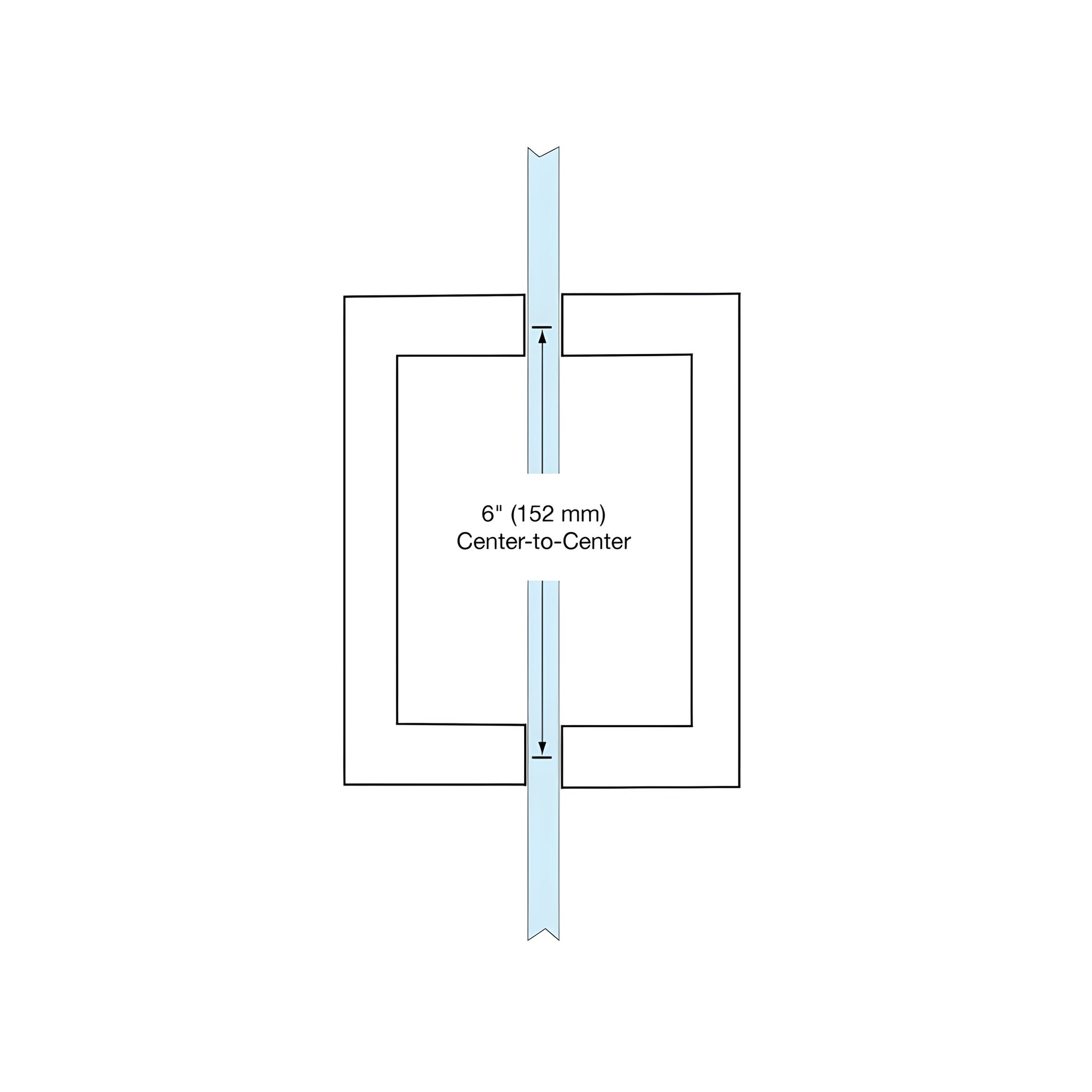

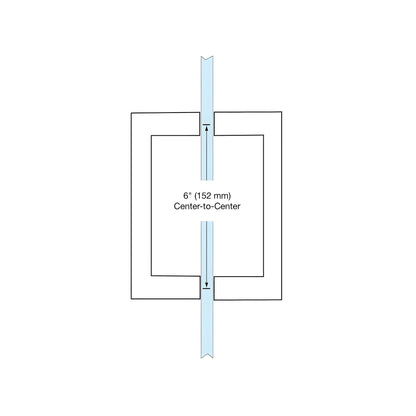

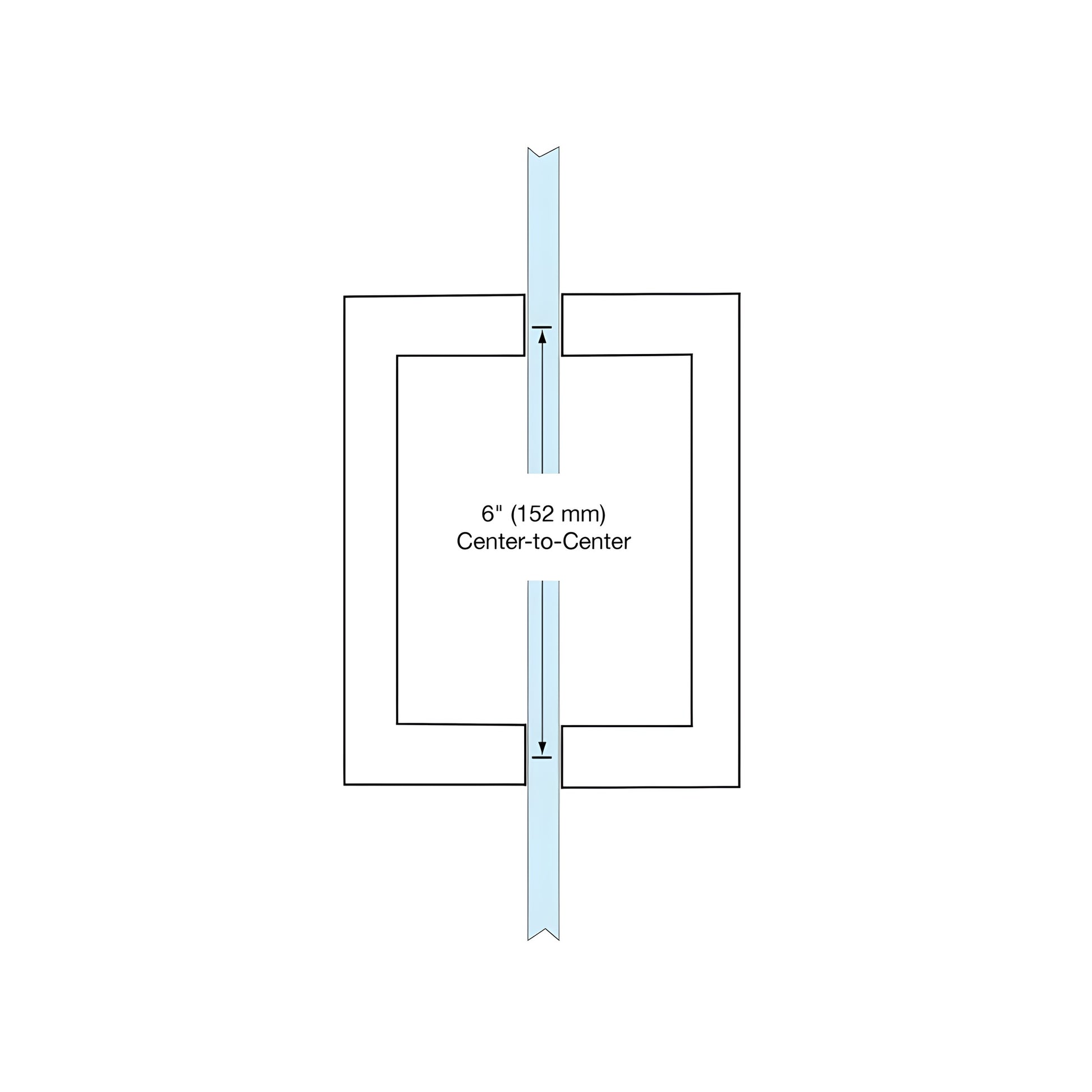

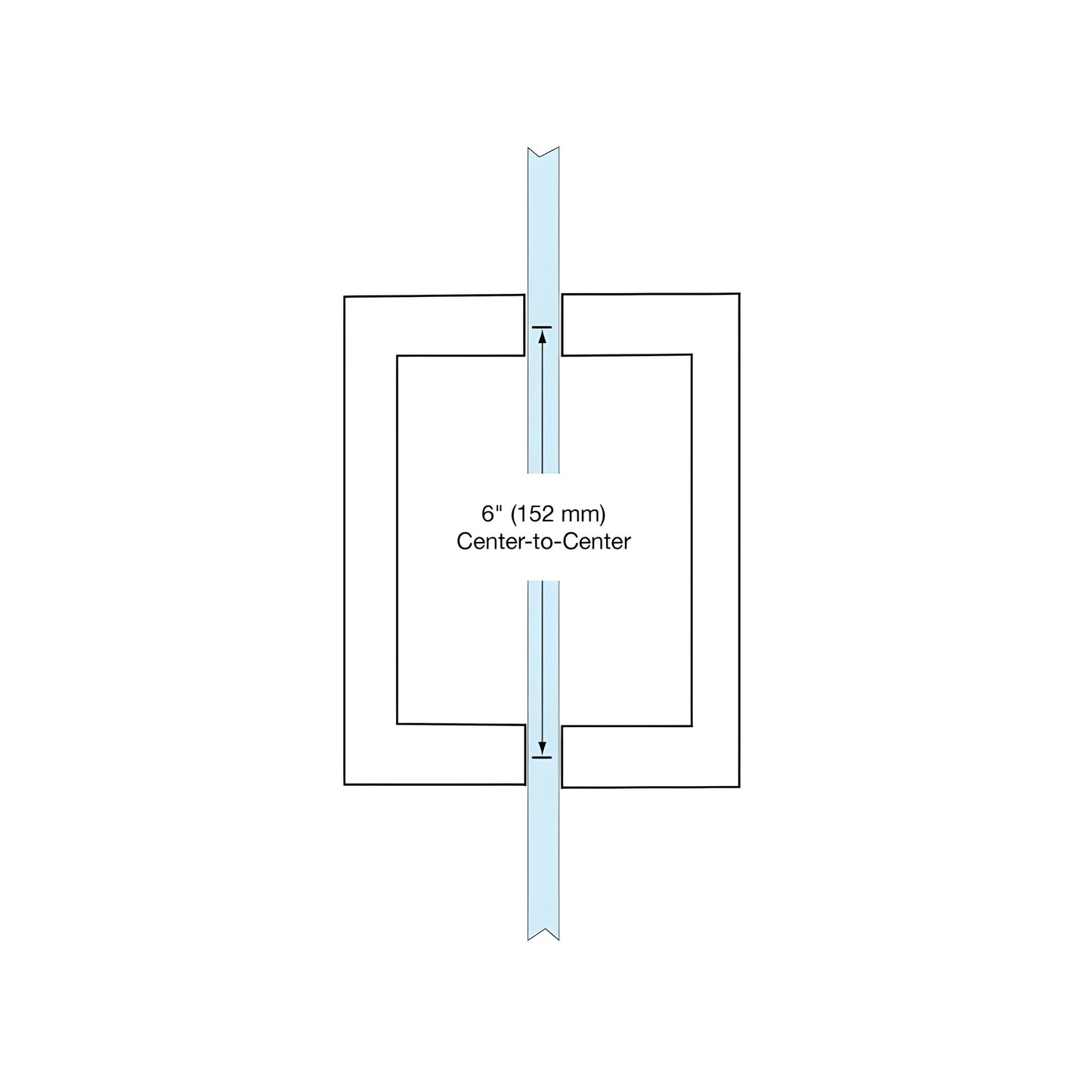

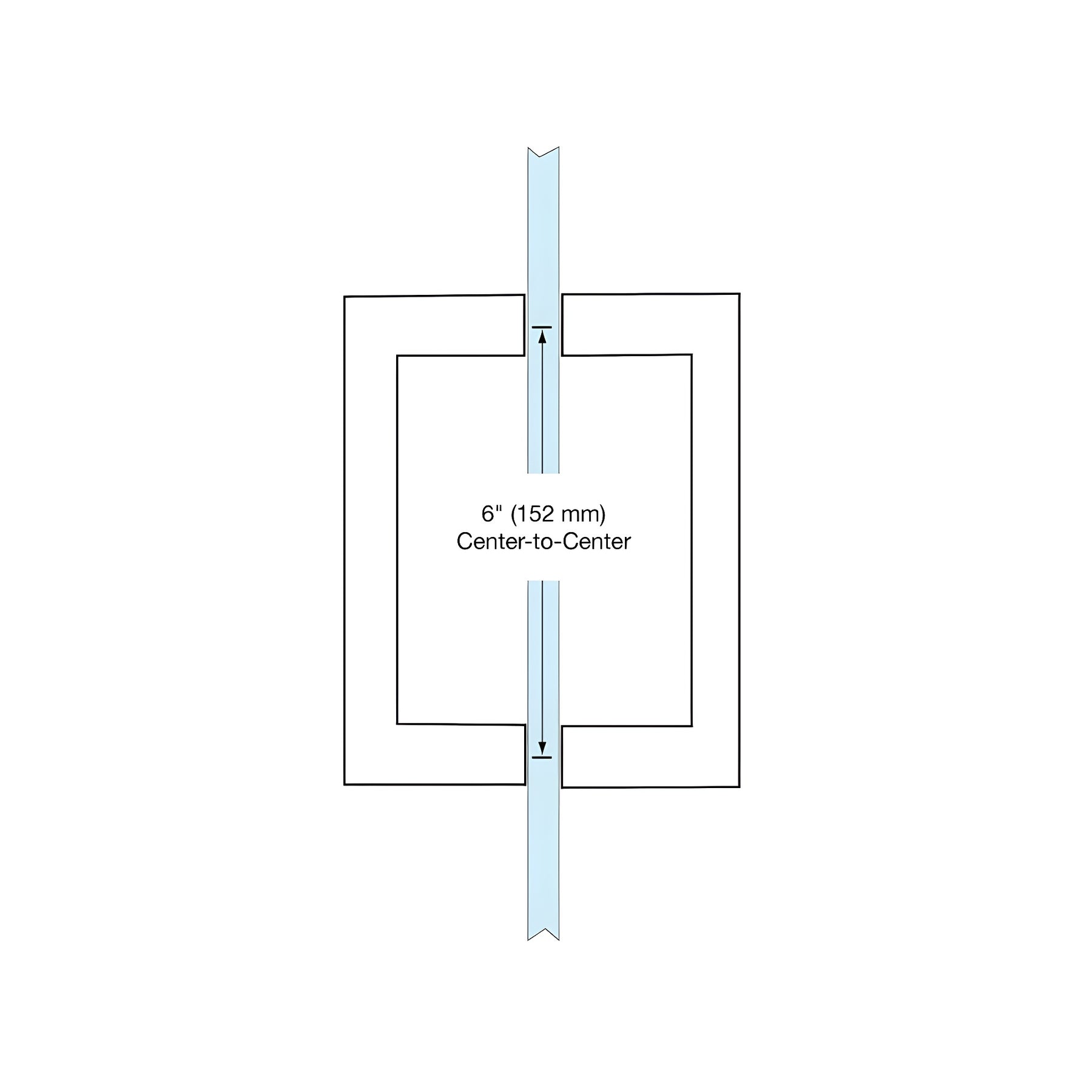

• Center-to-center hole spacing: 6" (152 mm) or 8" (203 mm)
• Requires 1/2" (12 mm) diameter holes in glass

Versatile Options:
Choose from a growing selection of CRL handles in numerous styles and finishes. Whether you opt for a back-to-back or single-sided handle, installation is simple and durability is guaranteed. Custom finishes and designs are also available upon request.

Product Notice:
Shipping weights are approximate and not independently verified. For precise weights needed for shipping cost estimates, contact CRL Customer Service before ordering. Product colors may vary slightly depending on monitor settings and video card calibration.

Add modern elegance to your frameless shower – shop the CRL Matte Black SQ Series Handle at CWGHP. Engineered for durability and designed to impress.
