CRL Satin Brass 6 in Square Tubing Back-to-Back Glass Door Pull
CRL Satin Brass 6 in Square Tubing Back-to-Back Glass Door Pull
Regular price
$89.58 CAD
Regular price
Sale price
$89.58 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SQ6X6SB
Shipping Weight: 8.96 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.96 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Construction
Tubular
Design Style
Squared
Diameter
3/4 in. (19 mm)
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Satin Brass
Glazing Thickness
1/4 in. To 1/2 in. (6 mm To 12 mm)
Material
Brass
Mounting Center To Center
6 in. (152 mm)
Mounting Type
Glass Mount - Back To Back
Opening Style
Slide, Fold, Swing(side), Pivot(floor)
Projection From Surface
2-1/2 in. (64 mm)
Series
SQ
Tube Profile
Square
Tube Size
3/4
Overview
- Two Sizes Available: 6" and 8" (152 and 203 mm)
- Several designer finishes (including brass options)
- Square corners to match square-cornered hinges (Geneva, Vienna, Concord, Cardiff)
- Fits 1/4" to 1/2" (6 to 12 mm) monolithic tempered glass

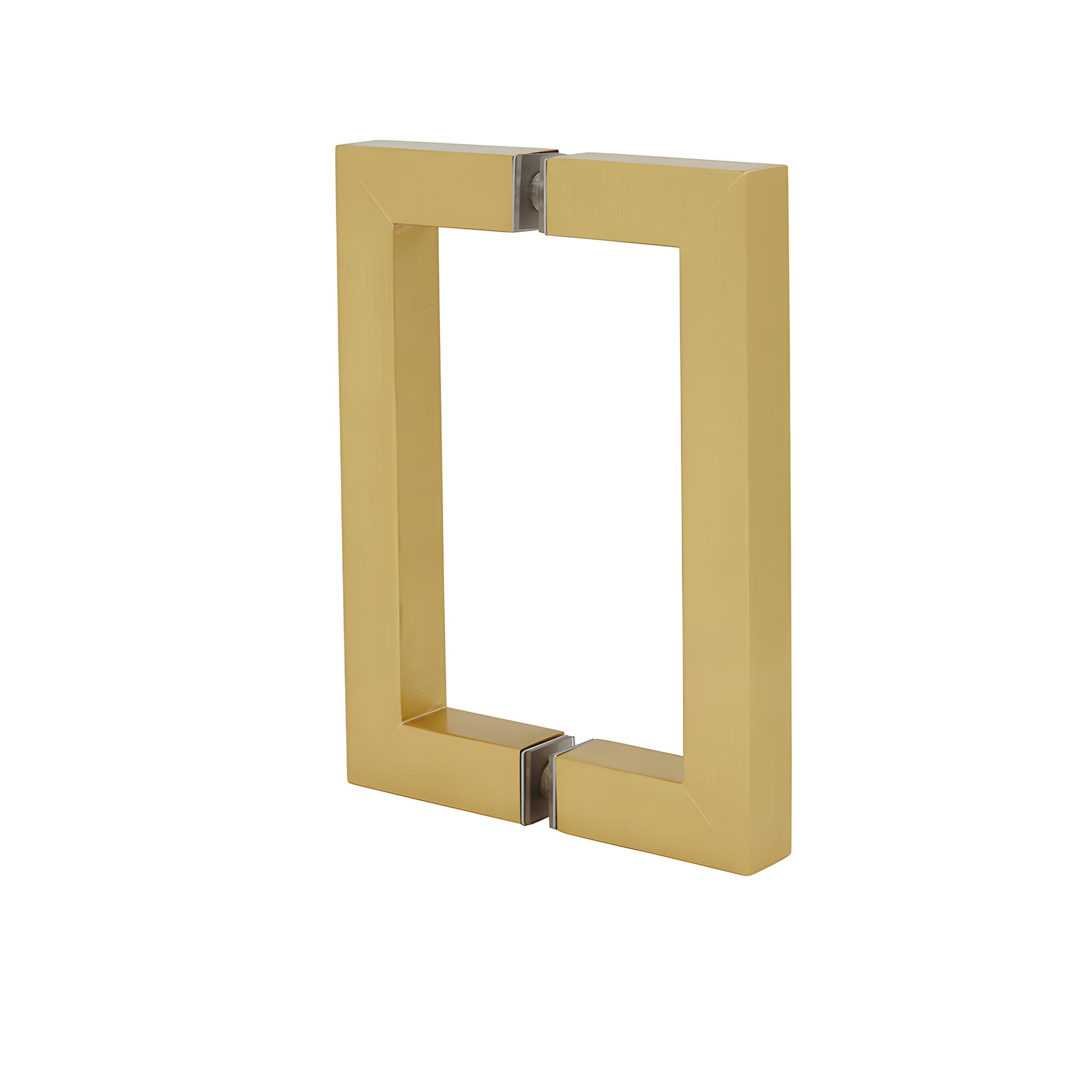

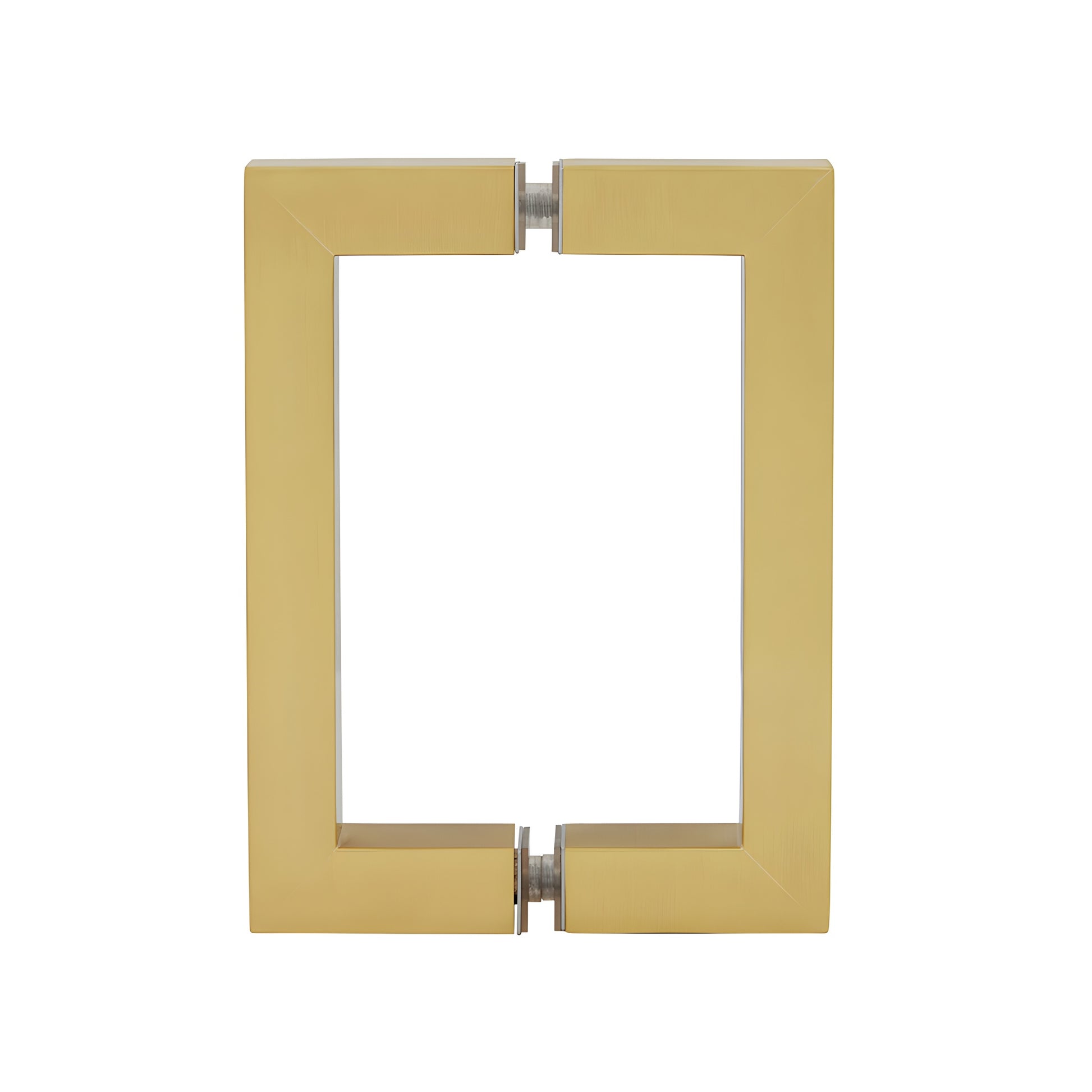

The sharp-looking CRL SQ Series Square Corner Handle (SKU: SQ6X6SB) is a square-corner glass door pull designed for shower and wardrobe doors. Its square profile complements many CRL hinge families and provides a clean, modern aesthetic favored by architects and designers. Back-up washers and nylon spacers are included to protect against glass-to-metal contact.
Key differentiators: precision 3/4" (19 mm) brass tubing construction for durability, multiple designer finishes to match décor, and compatibility with standard tempered glass thicknesses. Available in single-sided or back-to-back configurations; custom designs and finishes are available on request.
SPECIFICATIONS:
Material: 3/4" (19 mm) brass tubing
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)

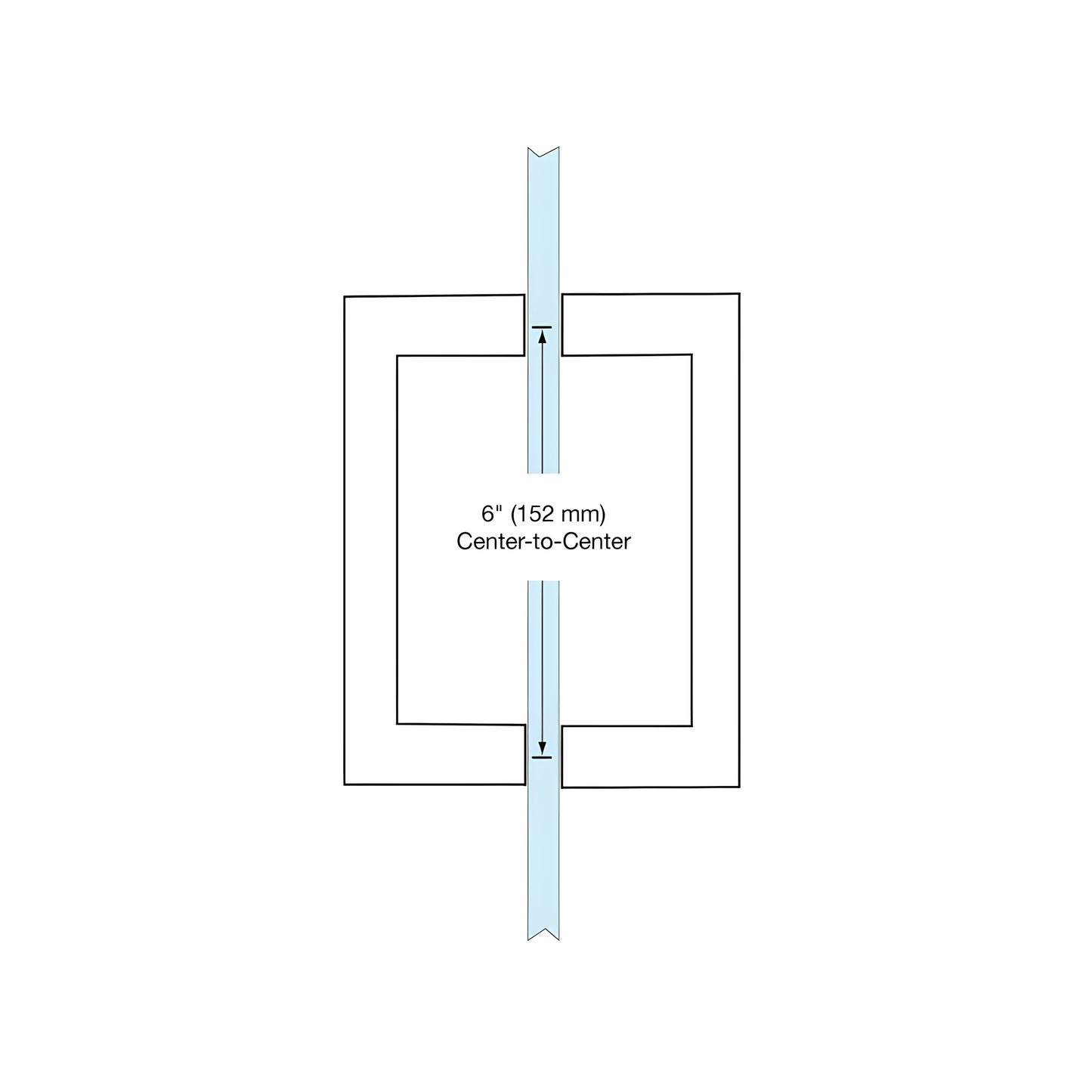

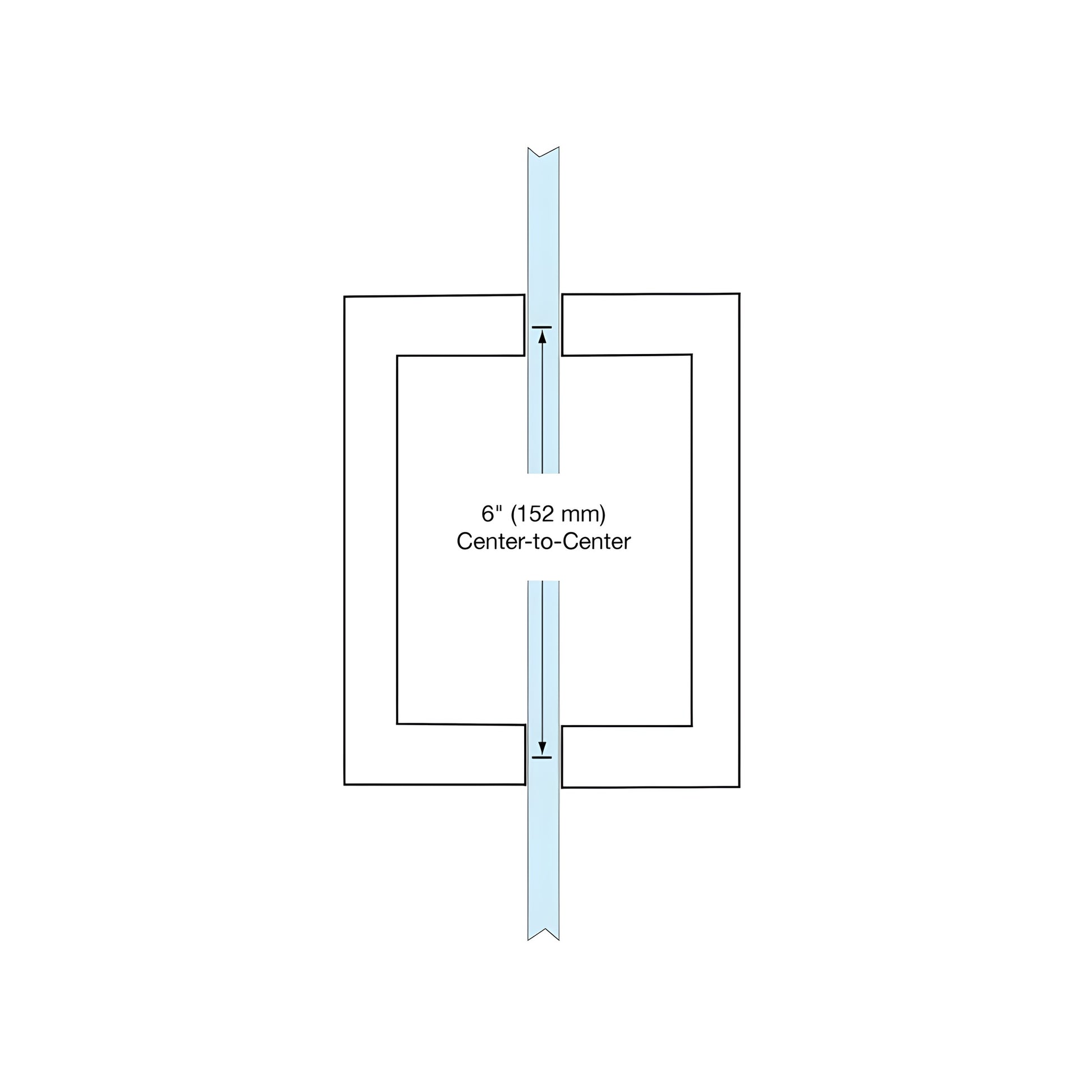

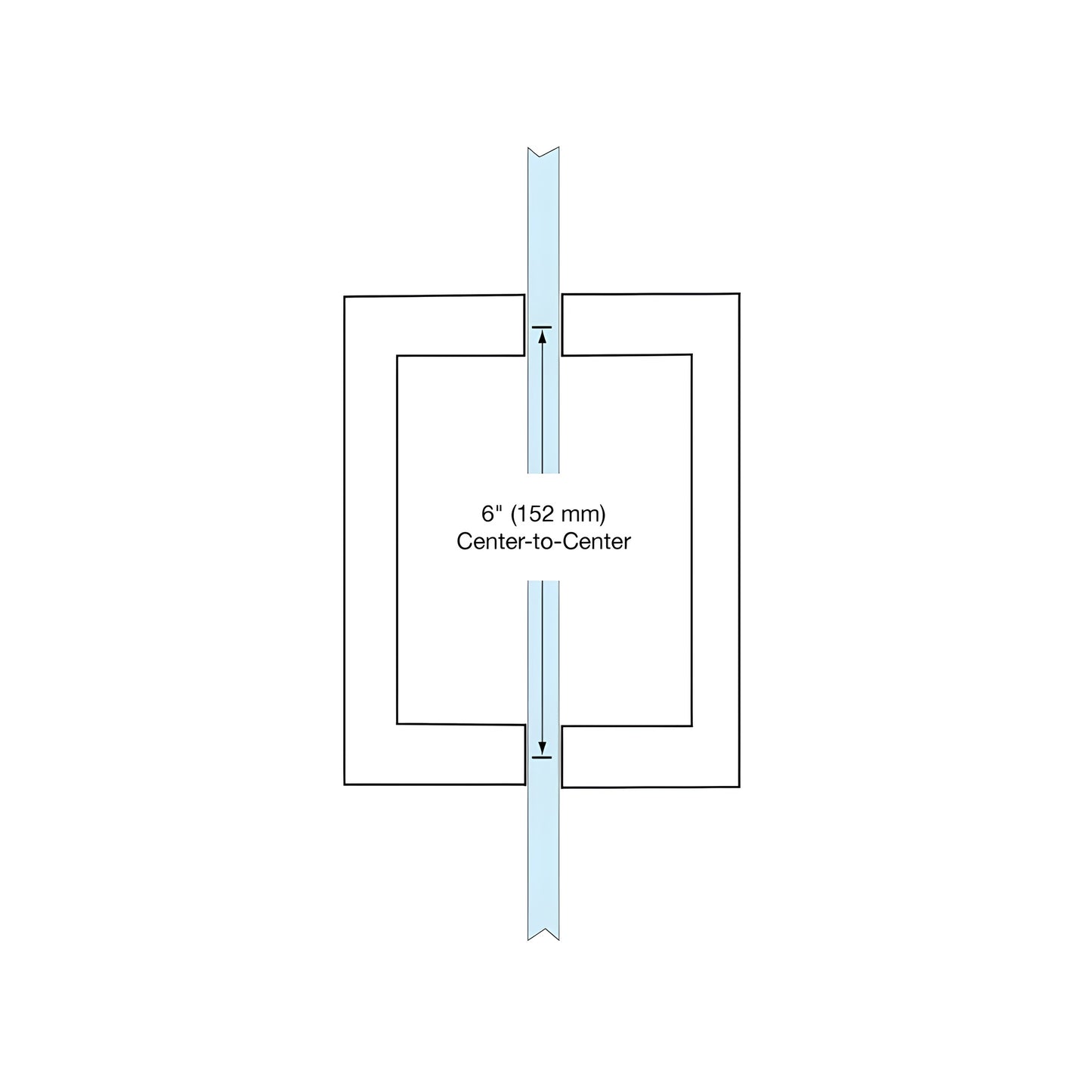

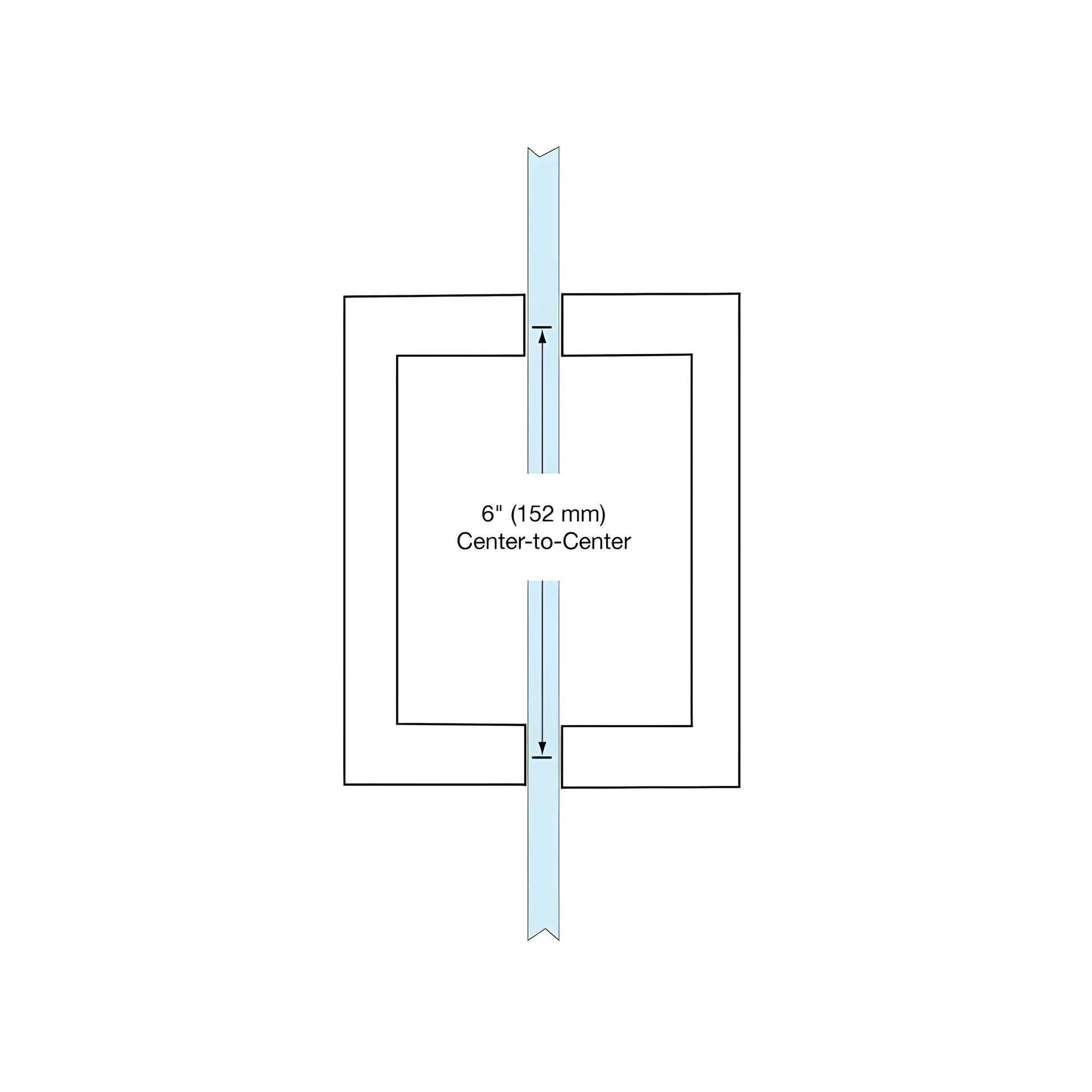

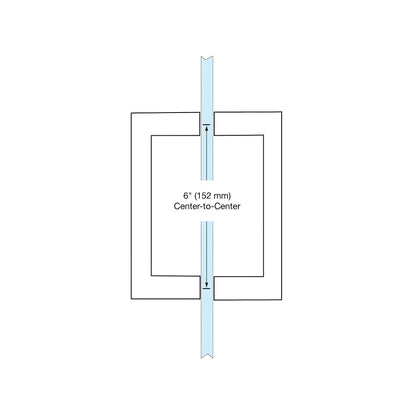

Center-to-Center Hole Spacing: 6" (152 mm); 8" (203 mm)
Brass Finish Advisory:
Although durable, brass can oxidize and develop a tarnished appearance over time. See the Brass Finish Disclaimer in Technical References for care and maintenance details.
Applications / Keywords: shower door handle, glass door pull for tempered glass, square corner shower pull, brass glass handle, CRL SQ Series SQ6X6SB.
Order the SQ6X6SB today to match square-corner hinges and elevate your glass door design.
