CRL Satin Brass 8 in Square Tube Back-to-Back Door Pull Handles
CRL Satin Brass 8 in Square Tube Back-to-Back Door Pull Handles
Regular price
$90.69 CAD
Regular price
Sale price
$90.69 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SQ8X8SB
Shipping Weight: 1.36 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.36 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Construction
Tubular
Design Style
Squared
Diameter
3/4 in. (19 mm)
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Satin Brass
Glazing Thickness
1/4 in. To 1/2 in. (6 mm To 12 mm)
Material
Brass
Mounting Center To Center
8 in. (203 mm)
Mounting Type
Glass Mount - Back To Back
Opening Style
Slide, Fold, Swing(side), Pivot(floor)
Projection From Surface
2-1/2 in. (64 mm)
Series
SQ
Tube Profile
Square
Tube Size
3/4
Overview
- Two sizes available: 6" and 8" (152 and 203 mm)
- Multiple designer finishes
- Square corners—ideal match for square-cornered hinges (Geneva, Vienna, Concord, Cardiff)
- Compatible with 1/4" to 1/2" (6 to 12 mm) monolithic tempered glass

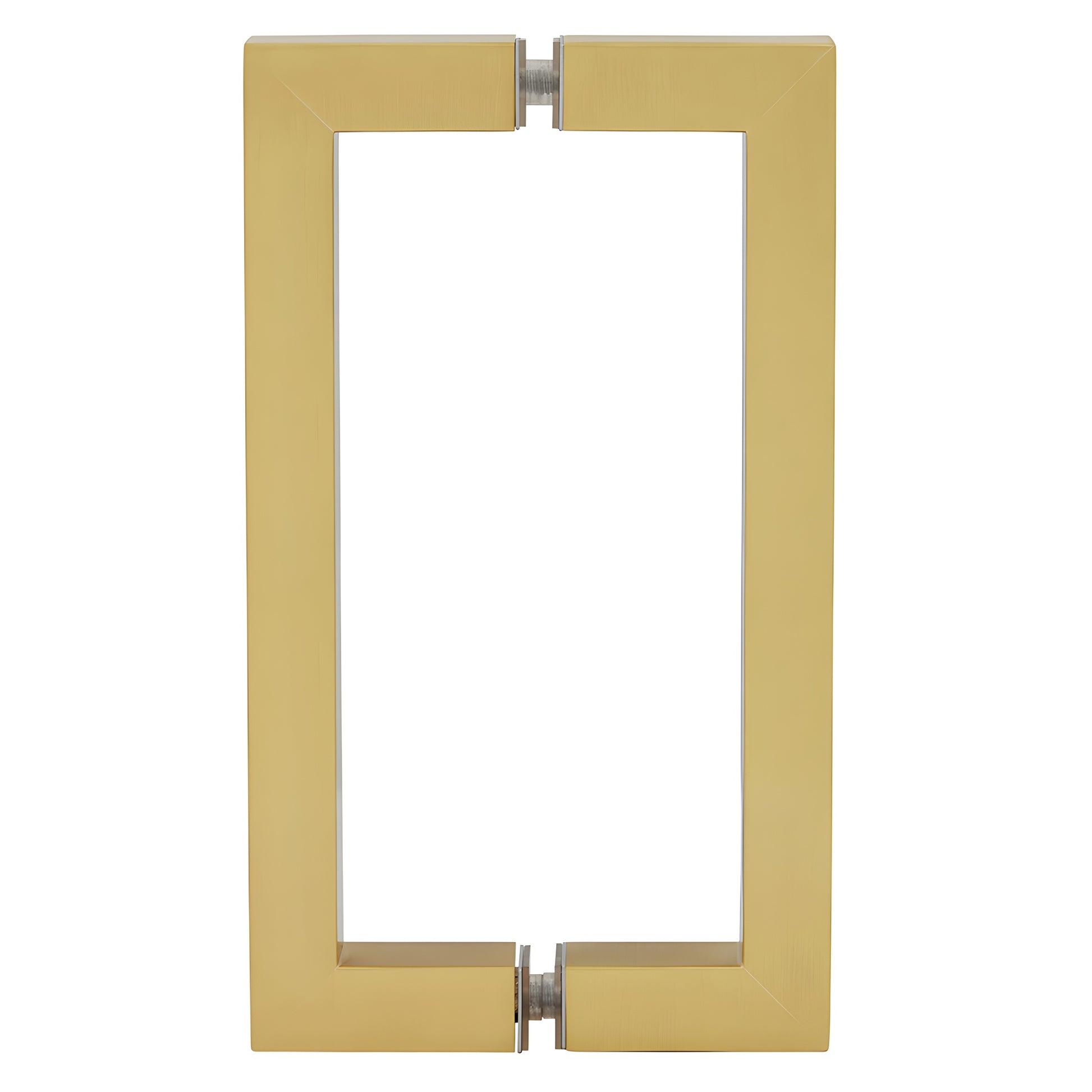

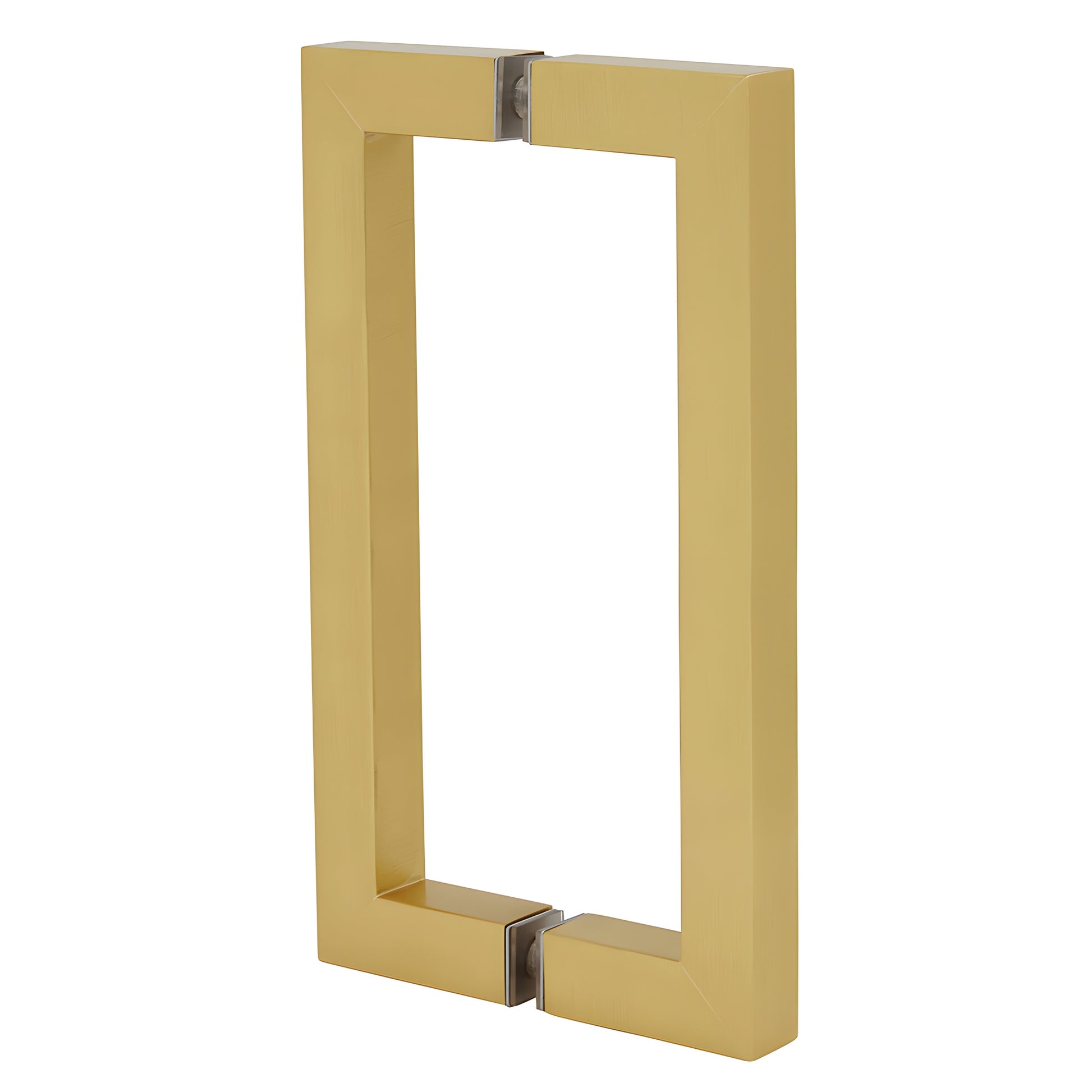

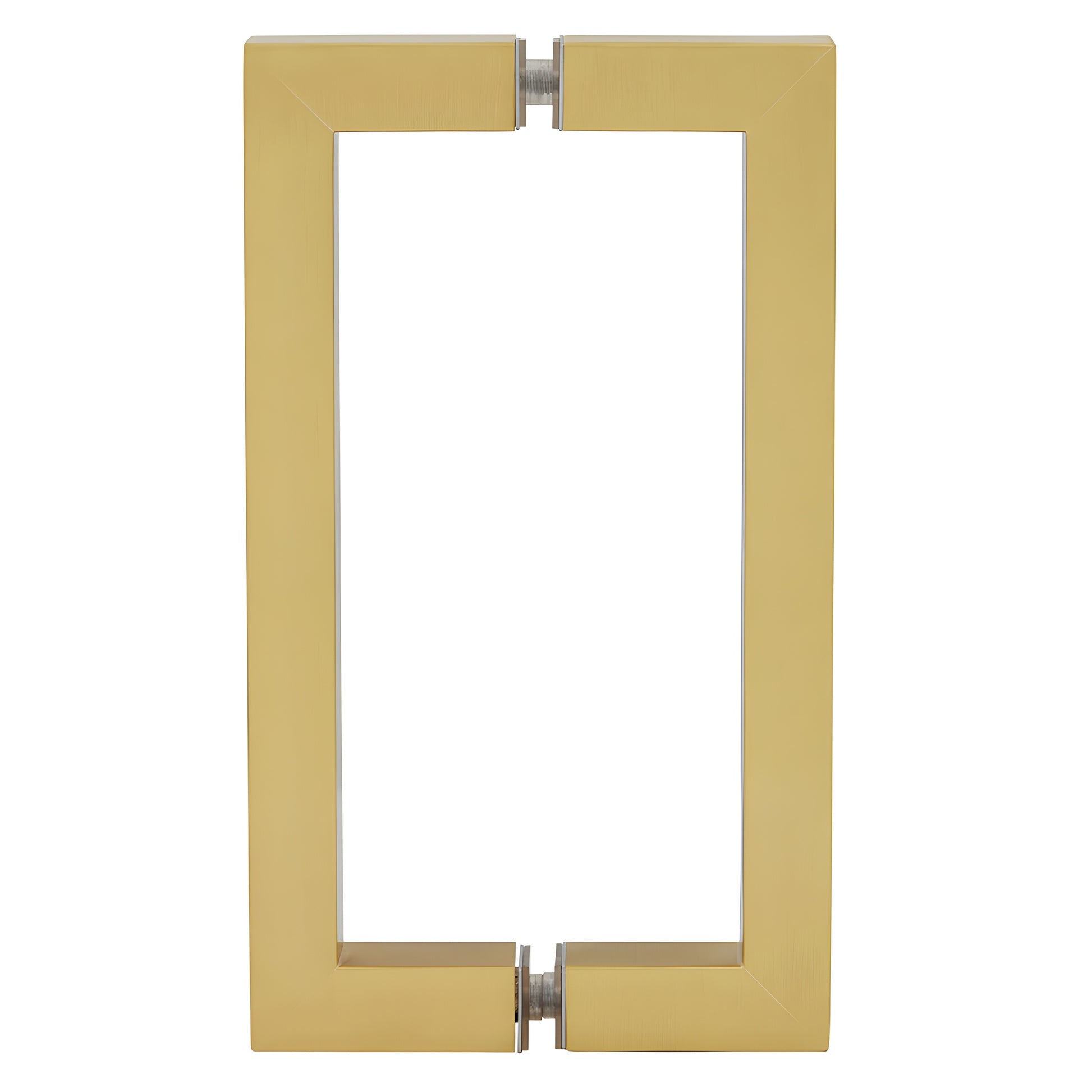

The sharp-looking CRL SQ Series Square Corner Handle (SKU: SQ8X8SB) delivers a clean, traditional aesthetic favored by designers for shower doors and wardrobe doors. This square-corner pull handle pairs seamlessly with CRL hinge series that share angular styling and includes backup washers and nylon spacers to protect glass-to-metal contact.
Our pull-handle selection now includes more than a dozen distinct models in a wide range of finishes. Each square corner shower door handle and tempered glass pull is constructed from premium materials for long-lasting performance. Available as back-to-back or single-sided units, these handles are easy to install and suitable for residential and commercial shower enclosures. Custom designs and finishes are available for special projects.
SPECIFICATIONS:
Material: 3/4" (19 mm) brass tubing
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)

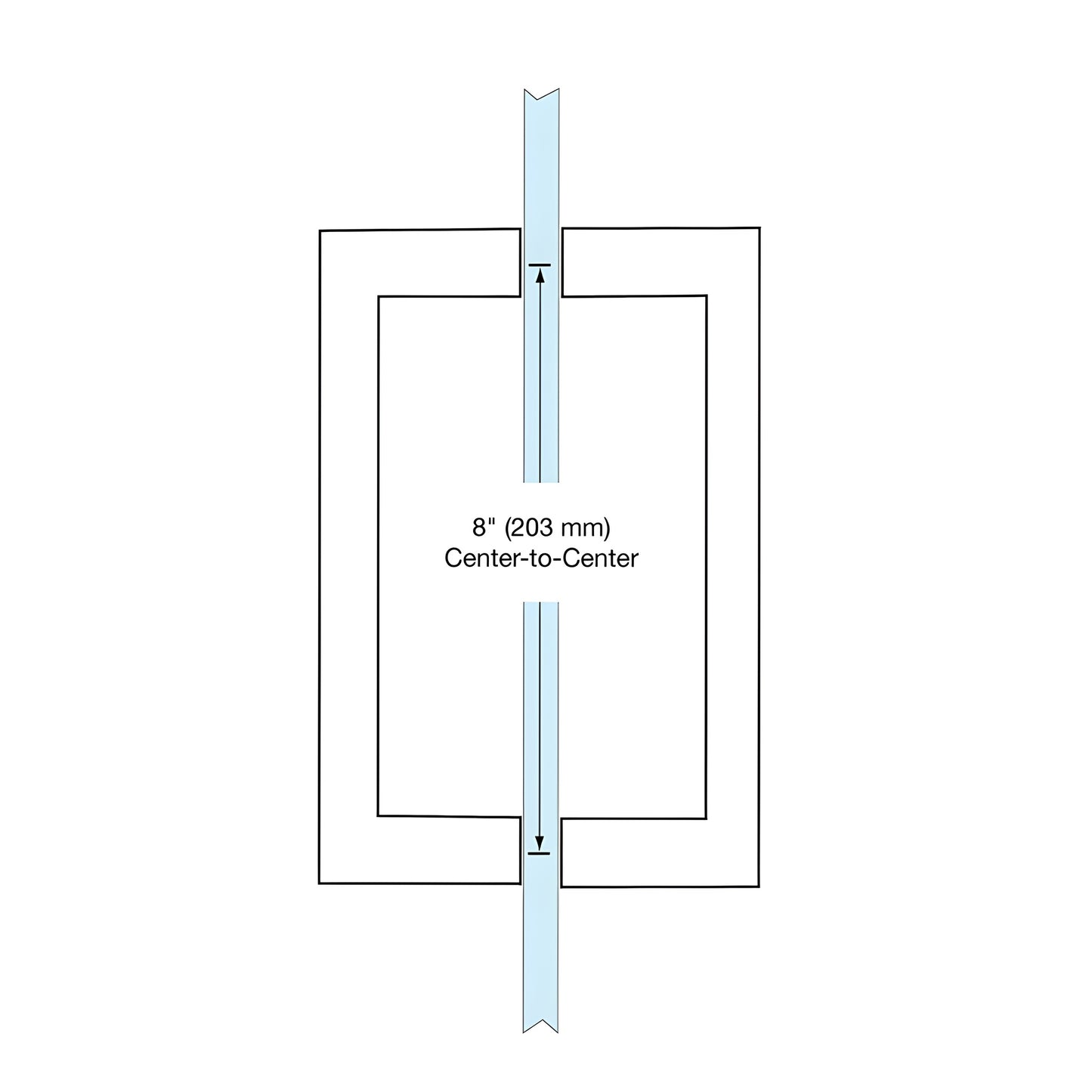

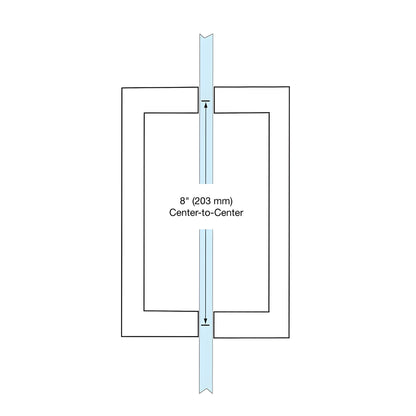

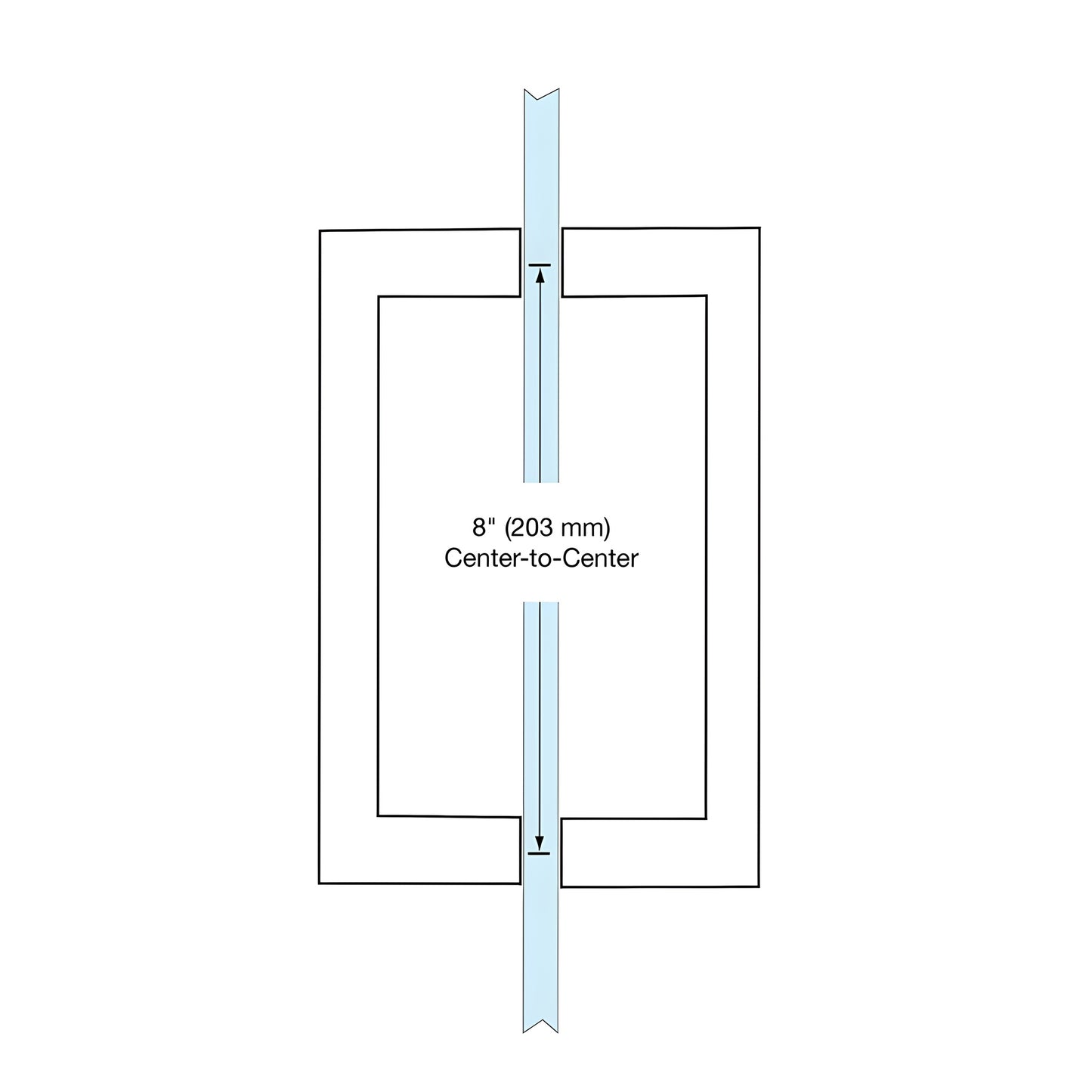

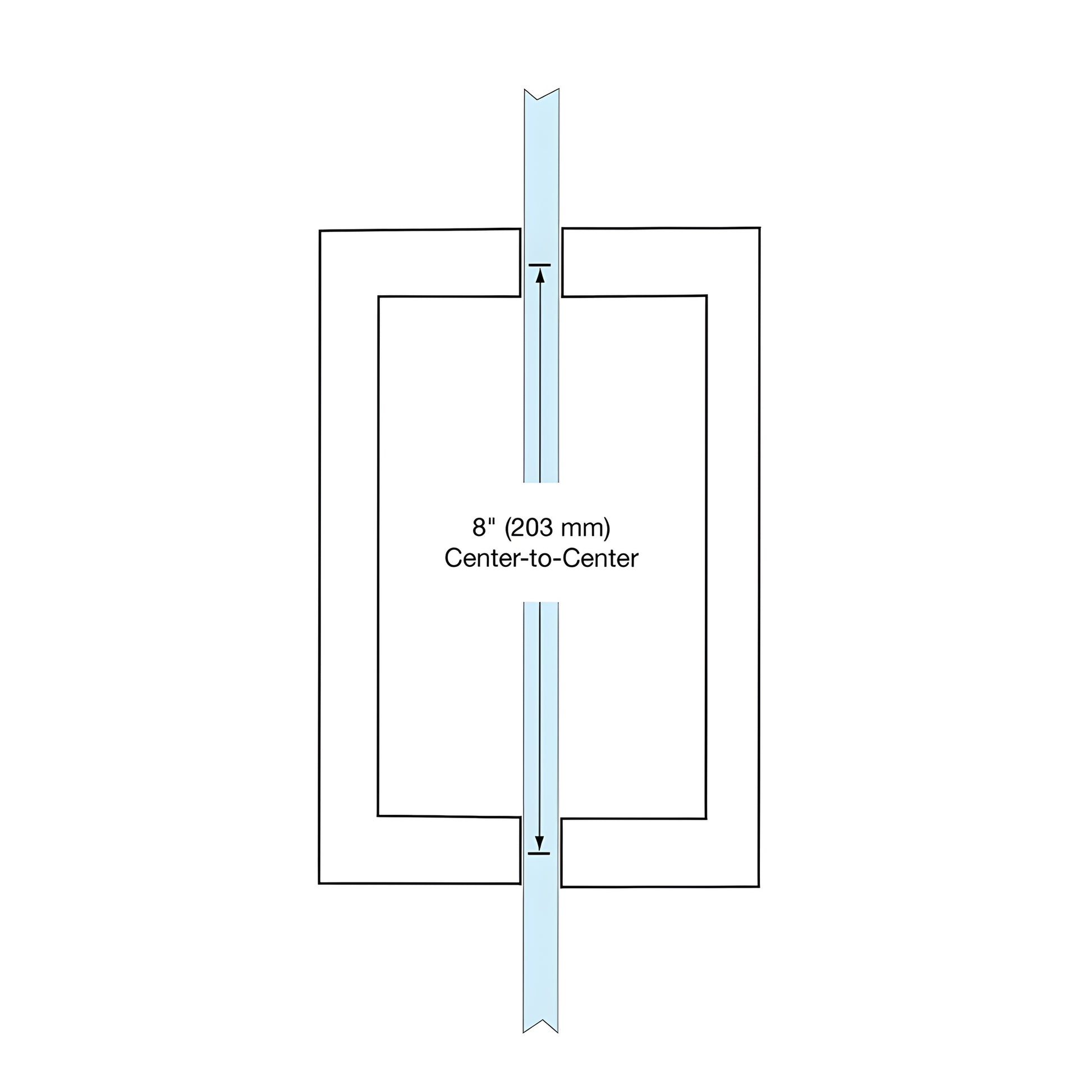

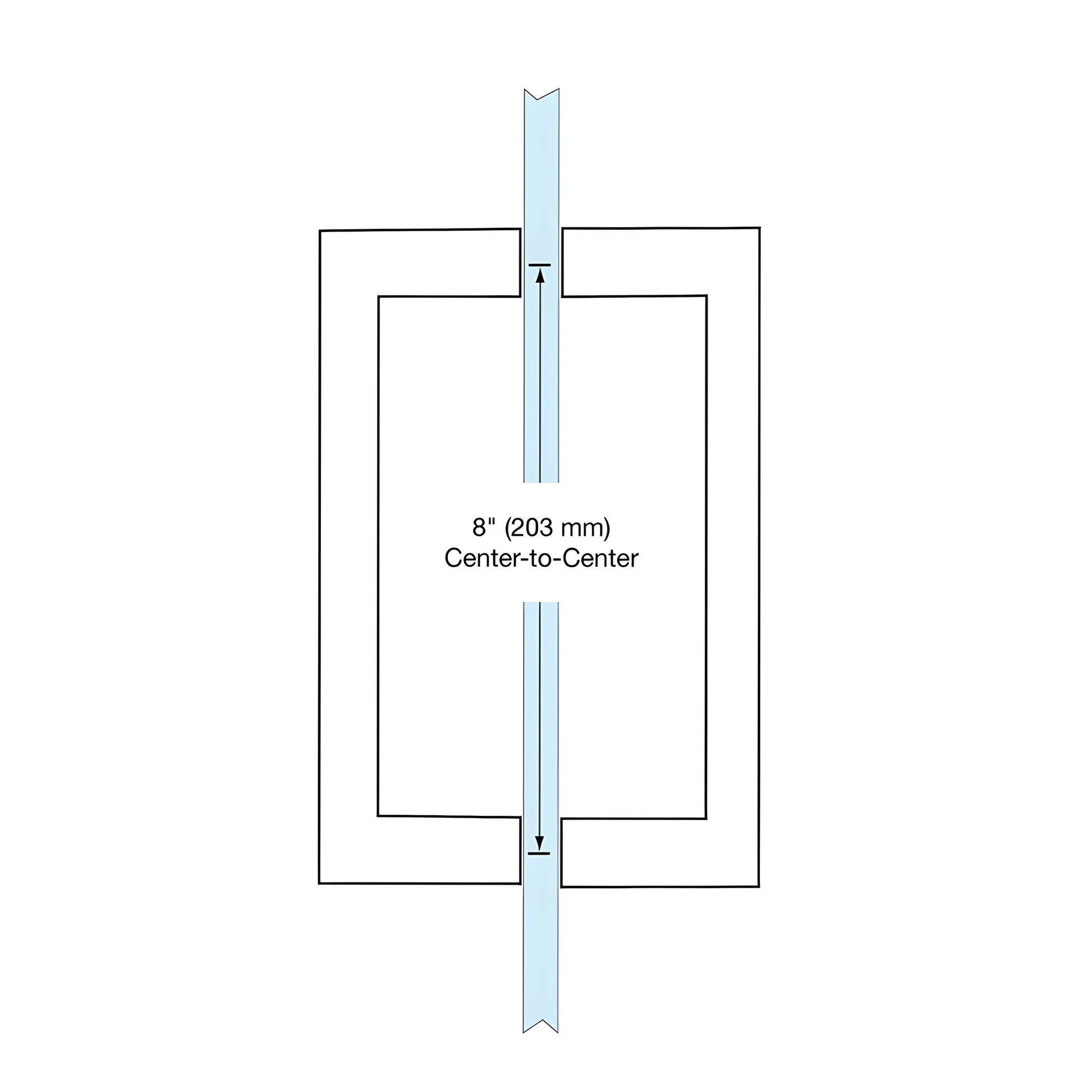

Center-to-Center Hole Spacing: 6" (152 mm); 8" (203 mm)
Brass Finish Advisory:
Brass is durable but prone to oxidation, which can cause a tarnished appearance over time even when initially packaged or stored. See the Brass Finish Disclaimer in Technical References for care and maintenance details.
Order the CRL SQ Series Square Corner Handle (SKU: SQ8X8SB) today to complete your square-corner shower or wardrobe door—contact sales for custom finishes or help with specifications.
