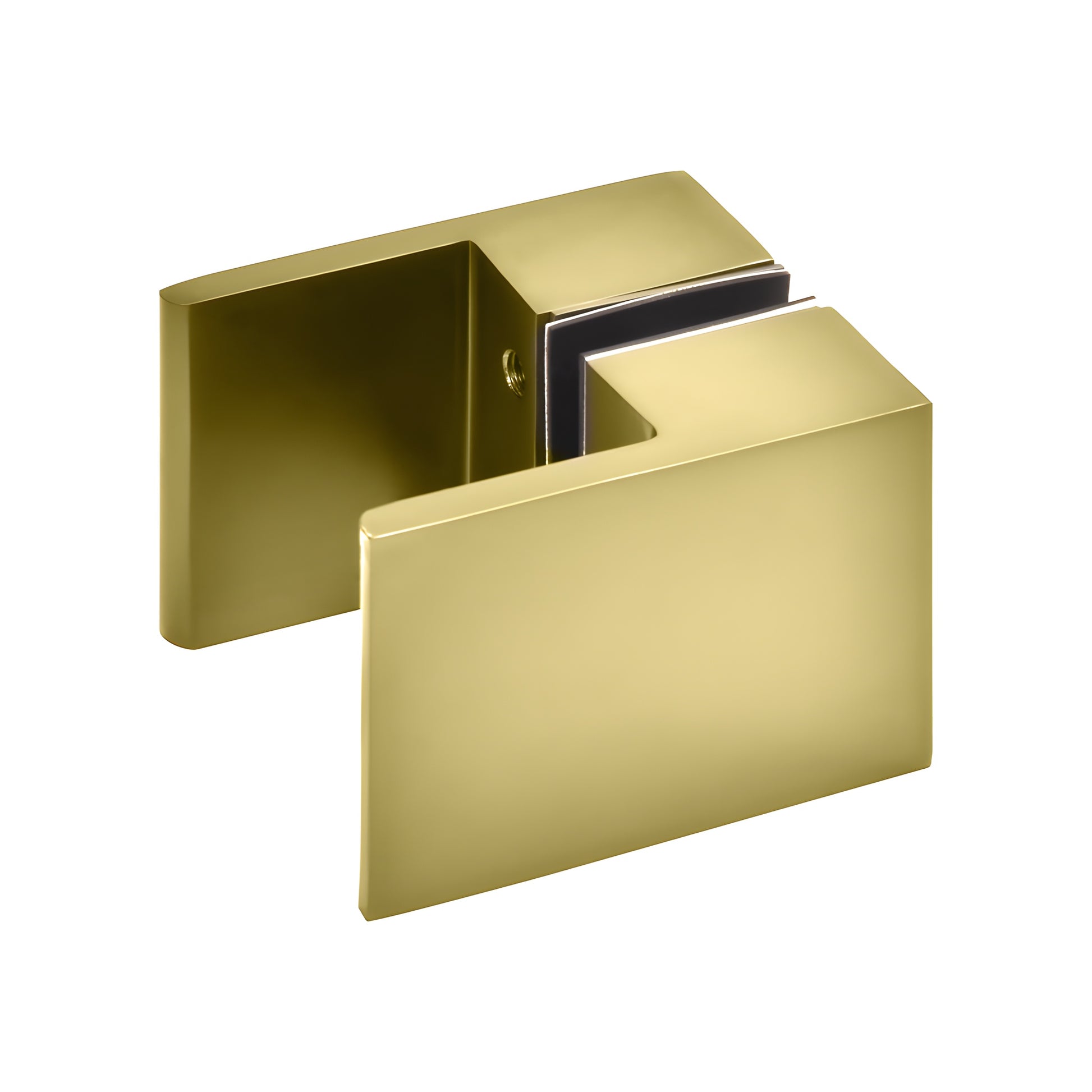

CRL Satin Brass Back-To-Back Paddle Knob

Buy More, Save More!

Product quantity Discount
Buy 3 2% off
Buy 5 4% off
Buy 10 6% off
Buy 15 8% off
Buy 20 10% off

Overview

SKUSDK180SB
Pack Size1
Design StyleSquared
Diameter3/4 in. (19 mm)
Enclosure TypeCorner, Niche, Bathtub, Tailor Made Solutions
Finish/Color:Satin Brass
Glazing Thickness1/4 in. To 1/2 in. (6 mm To 12 mm)
Height2-3/4 in. (70 mm)
MaterialBrass
Mounting TypeGlass Mount - Back To Back
Opening StyleSlide, Fold, Swing(side), Pivot(floor)

Description

Product Details

  • Excellent Alternatives to Everyday Shower Door Handles
  • Square Corners to Match Geneva, Vienna, Cardiff, and Other Hinge Series
  • Requires Glass Fabrication

The Back-to-Back Paddle Knob certainly provides an alternative look when mounted to a frameless shower enclosure. The flat "paddle" shape appearance, along with square corners, makes it an ideal choice for use with popular hinge series such as Geneva, Vienna, and Cardiff. Stocked in seven popular finishes, the Paddle Knob requires glass fabrication.

Product Warning

CRL Shower Door Hardware is designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hardware may not match those of other brands.

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Specifications
