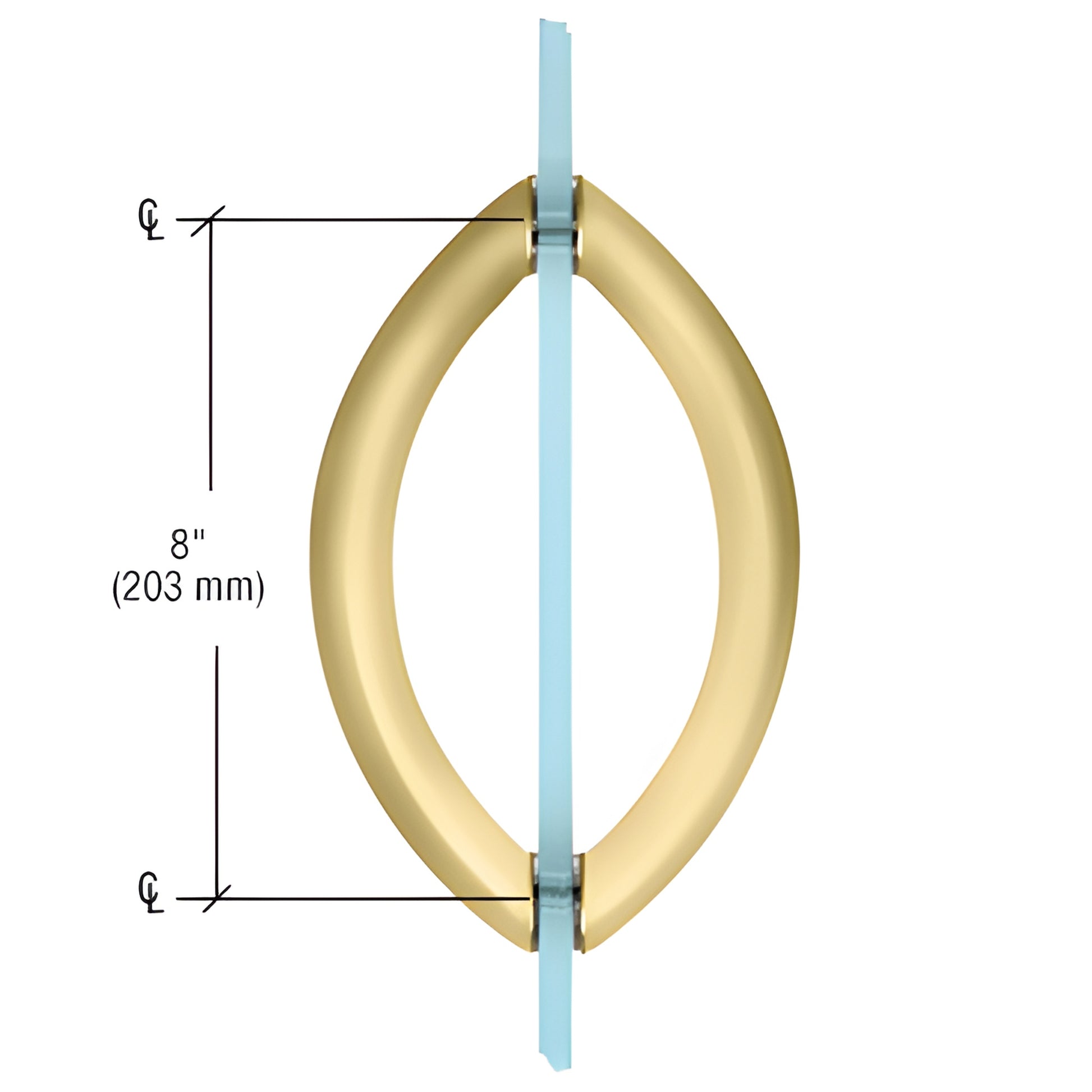

CRL Satin Brass 8" Crescent Style Back-to-Back Pull Handles Without Metal Washers
Buy More, Save More!
| Product quantity | Discount |
|---|---|
| Buy 3 | 2% off |
| Buy 5 | 4% off |
| Buy 10 | 6% off |
| Buy 15 | 8% off |
| Buy 20 | 10% off |
Overview
| SKU | CSH8X8SB |
|---|---|
| Pack Size | 1 |
| Construction | Tubular |
| Design Style | Beveled |
| Diameter | 3/4 in. (19 mm) |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Finish/Color: | Satin Brass |
| Glazing Thickness | 1/4 in. To 1/2 in. (6 mm To 12 mm) |
| Material | Brass |
| Mounting Center To Center | 8 in. (203 mm) |
| Mounting Type | Glass Mount - Back To Back |
| Opening Style | Slide, Fold, Swing(side), Pivot(floor) |
| Projection From Surface | 2-1/2 in. (64 mm) |
| Series | Crescent |
| Style Washers | No |
| Thread Size | 10 - 24 |
Description
Product Details
- Crescent or "Eyelet" Shaped Handle Stands Out From the Ordinary
- No Metal Washers Allow a Sleek Profile
- 3/4" (19 mm) Diameter Tubular Brass Construction (1.5 mil Thick)
- Two Standard Sizes to Choose From
- Several Stock Finishes, with Custom Finishes Upon Request
- Use 1/4" to 1/2" (6 to 12 mm) Monolithic Tempered Glass
The CRL Crescent Style Handle is formed from tubular brass. These Handles do not include metal washers, but plastic washers are included to protect against glass-to-metal contact.
Our offering of quality Pull Handles has grown to over a dozen distinct models in numerous different finishes. There's a handle to complement the décor of virtually any shower or wardrobe door, and each one is constructed of only the finest materials. Whether you choose a back-to-back or single-sided handle, you can rest assured that it will be easy-to-install, and will serve its purpose beautifully for many years. Custom designs and finishes are also available when you need something special.
SPECIFICATIONS:
Material: 3/4" (19 mm) Brass Tubing
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing: 6" (152 mm); 8" (203 mm)
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
