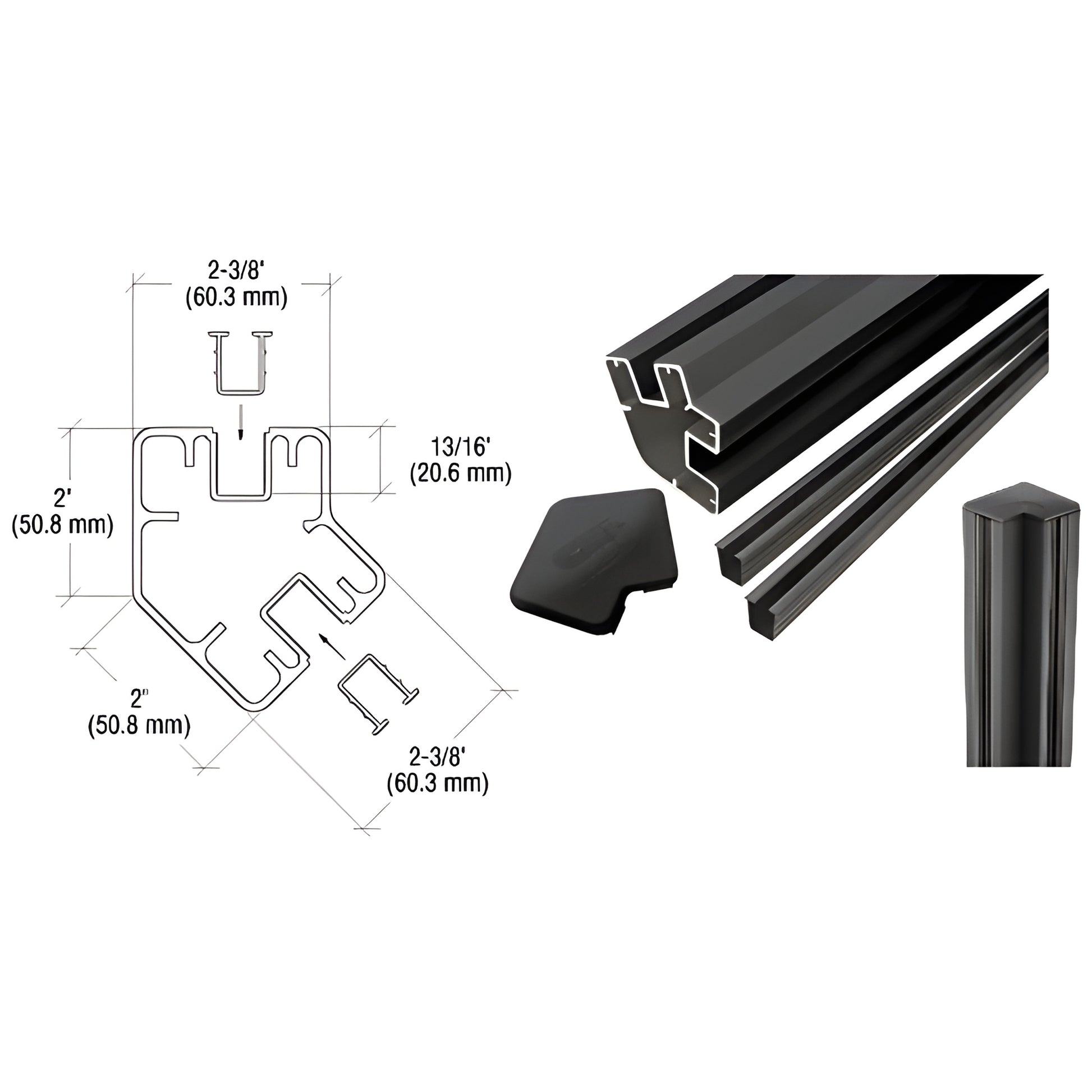

CRL 72in Matte Black 135° Rectangular 2 x 2-3/8in Railing Post Kit
Item# S725KBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Configuration
Corner
Degree
135
Depth
2-3/8 in. (60 mm)
Finish/Color
Matte Black
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
72 in. (1829 mm)
Material
Aluminum
Profile
Rectangular
Width
2 in. (51 mm)
- Standard kit includes post, top cap, and vinyl
- For joining two glass panels at a 135° angle — ideal 135-degree glass panel post kit (SKU S725KBL)
- Accommodates 1/4"–3/8" (6–10 mm) glass when dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass when wet glazed
- Available in several attractive colors; custom colors available upon request
CRL Kits for fabricating posts used to join two panels at 135 degrees. Designed for both dry glazed and wet glazed glass installations, these kits support common glass thicknesses and include vinyl for secure dry glazing.
Note: Maximum post spacing is 72" (1.83 m) on center. Maximum panel size should not exceed 24 sq ft.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Most shipping weights are approximate. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are actual or close representations; colors may vary by monitor.
Order the S725KBL 135-degree glass post kit today — contact us for custom color options.
CAD Drawings - pdf
