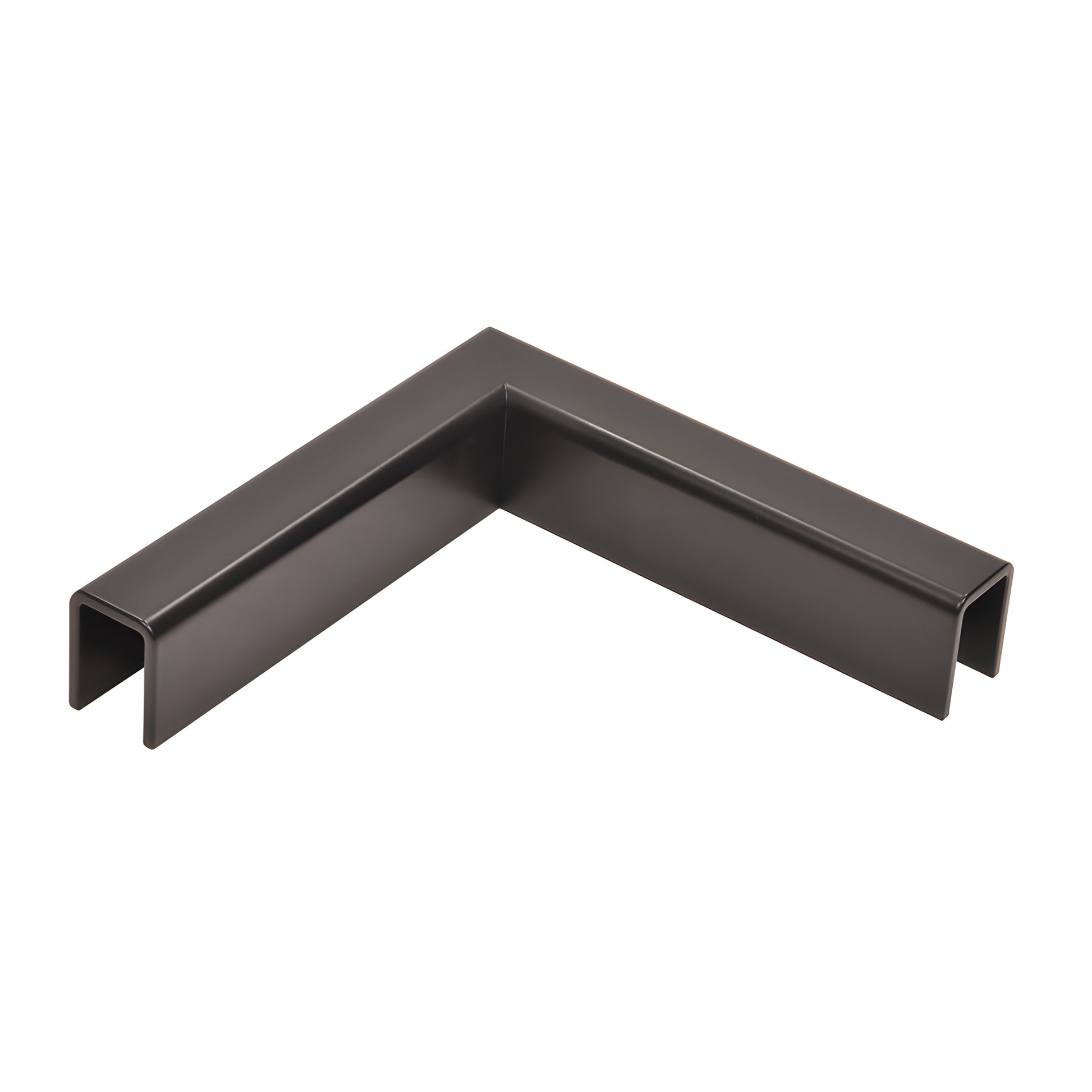

CRL Matte Black 90° Horizontal Corner for 11G Low-Profile Cap Rail
CRL Matte Black 90° Horizontal Corner for 11G Low-Profile Cap Rail
Regular price
$134.47 CAD
Regular price
Sale price
$134.47 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRL10HMBL
Shipping Weight: 1.33 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.33 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

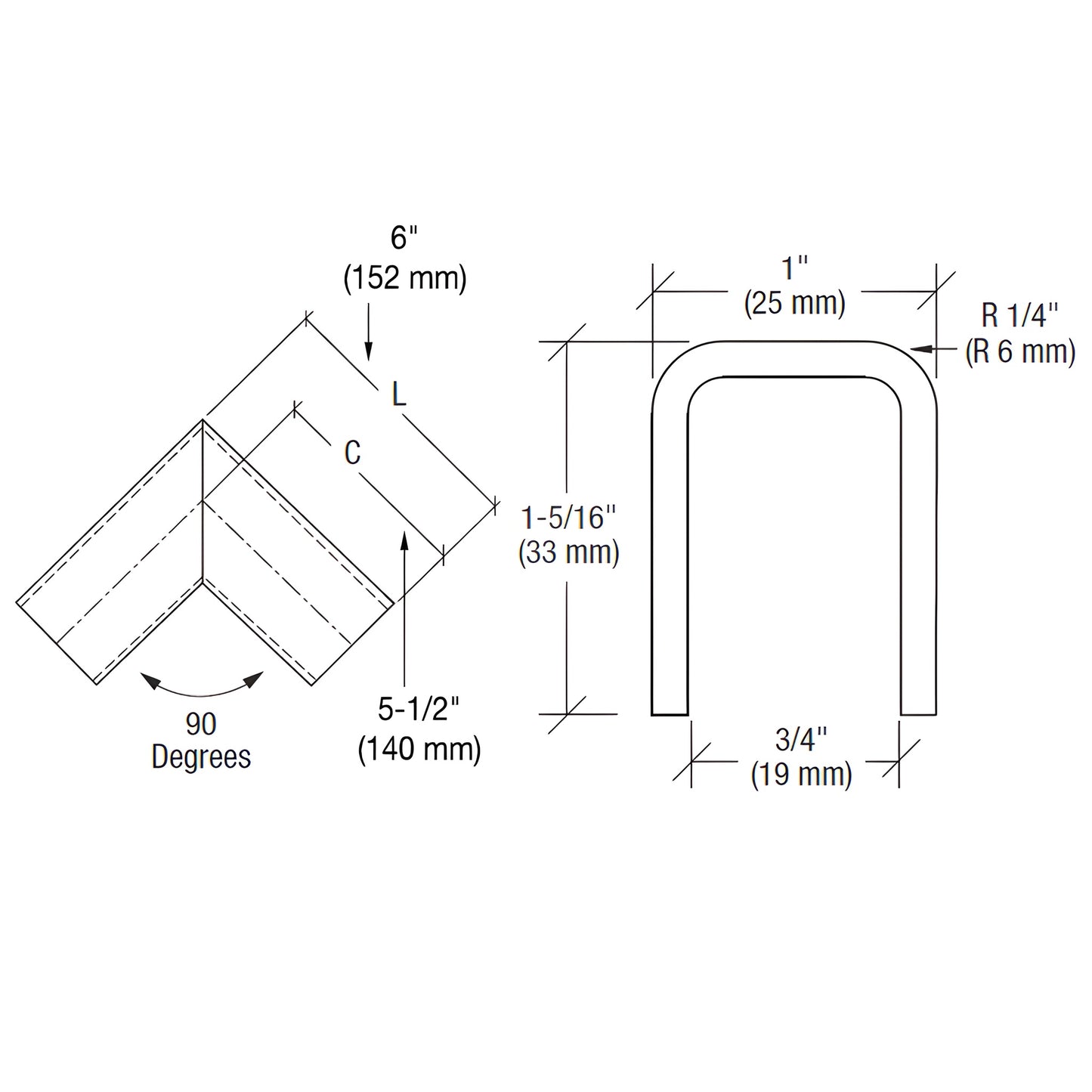

Centerline
5-1/2 in. (139.7 mm)
Finish/Color
Matte Black
Glazing Thickness
1/2 in. & 5/8 in. (12 mm & 16 mm)
Length
6 in. (152.4 mm)
Material
Stainless Steel
Overview
- Two Profiles for 1/2" (12 mm) or 5/8" (16 mm) Glass
- Three Finishes Available
- Welded and Finished
- Ready-to-Install
CRL Slip-Fit 90 Degree Horizontal Corners (SKU: GRL10HMBL) are designed for hairline-joint assemblies with straight lengths of CRL 11 Gauge Cap Railing and accommodate 1/2" (12 mm) or 5/8" (16 mm) thick glass. These welded, finished, ready-to-install cap rail corners enable clean 90° transitions for glass railing systems and tempered glass applications. Use Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond. Two connector sleeves are required per corner for proper installation.
Installation Notes: When used with 1/2" (12 mm) glass, secure the glass with GR5PV Cap Rail Vinyl plus 95CBL Silicone. When used with 5/8" (16 mm) glass, use 95CBL Silicone and shims only to secure the glass. Follow manufacturer instructions for adhesive and shim placement to ensure a safe, durable glass railing connection.
Order GRL10HMBL Slip-Fit 90° Horizontal Corners for fast, professional glass railing installations.
