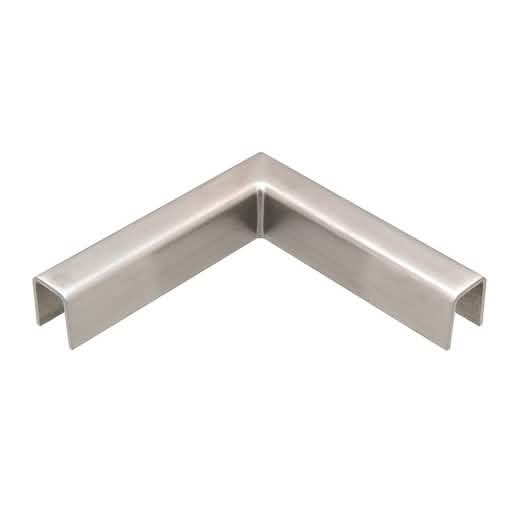

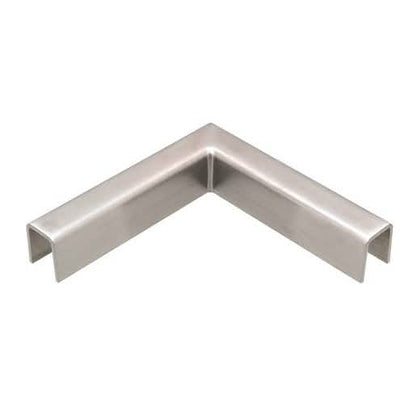

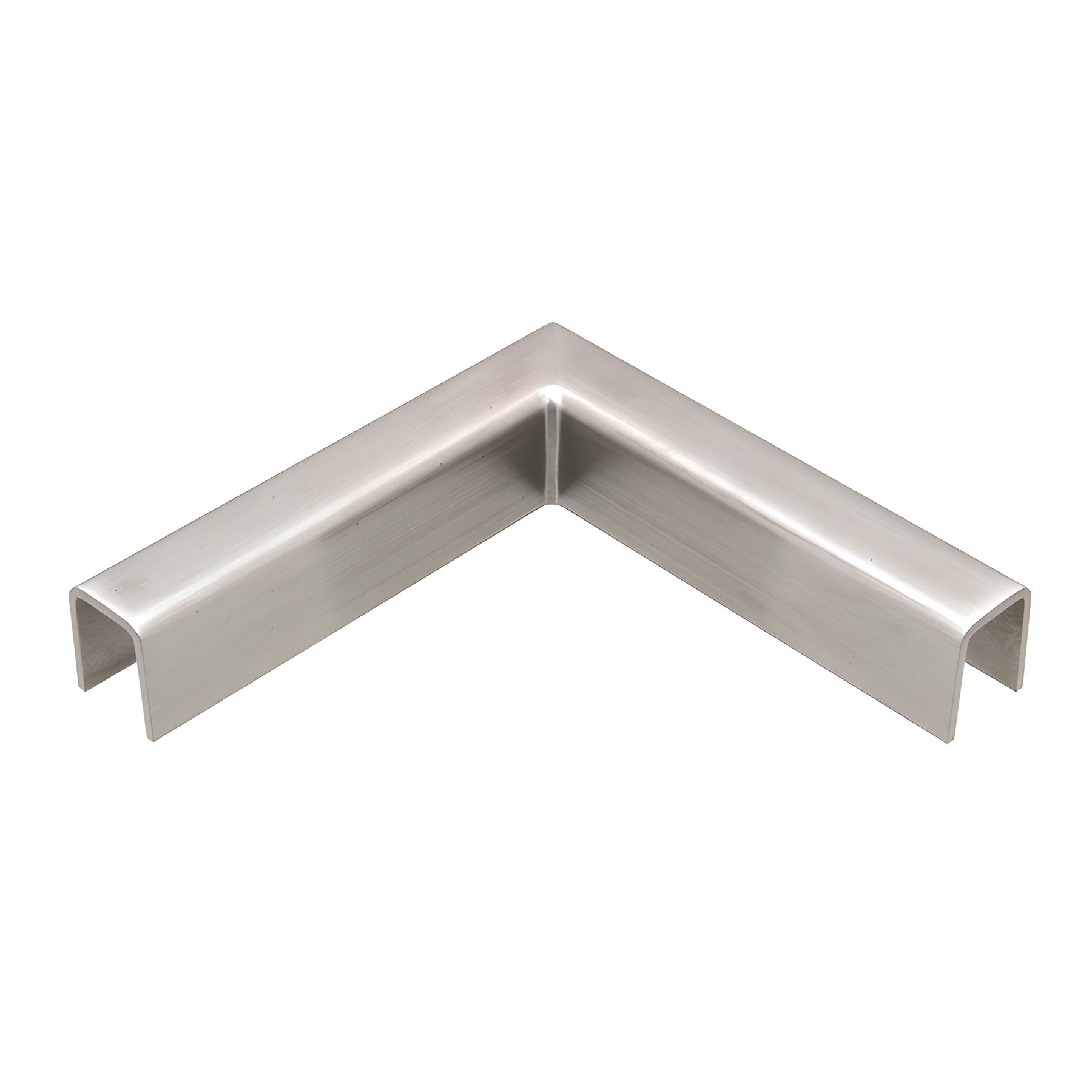

CRL 316 Brushed Stainless 90° Horizontal Corner for 11-Gauge Cap Rail
CRL 316 Brushed Stainless 90° Horizontal Corner for 11-Gauge Cap Rail
Regular price
$190.61 CAD
Regular price
Sale price
$190.61 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRL10HBS
Shipping Weight: 1.33 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.33 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

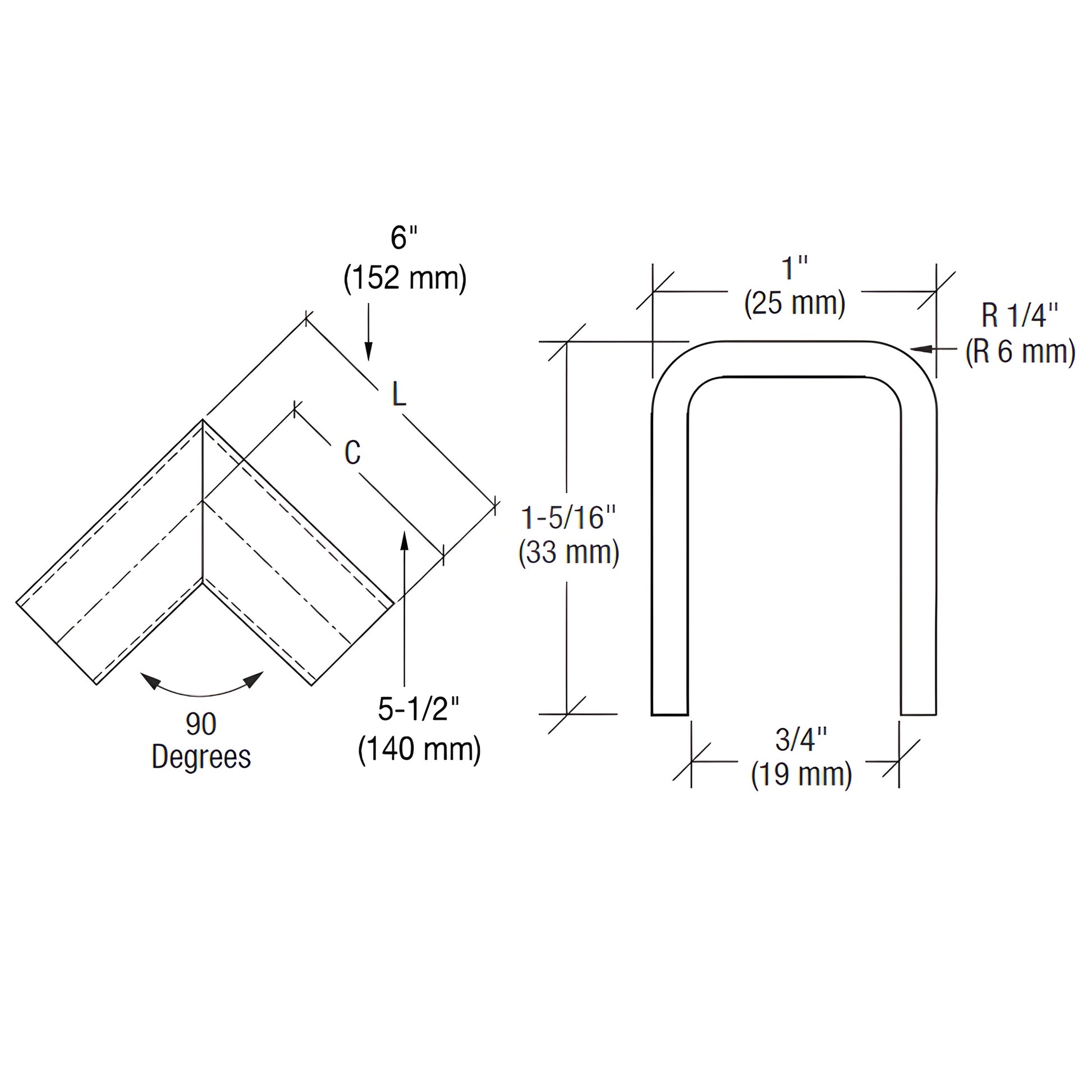

Centerline
5-1/2 in. (139.7 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. & 5/8 in. (12 mm & 16 mm)
Length
6 in. (152.4 mm)
Material
316 Stainless Steel
Overview
- Two profiles for 1/2" (12 mm) or 5/8" (16 mm) glass
- Two finishes available
- Welded and finished
- Ready-to-install
CRL Slip-Fit 90 Degree Horizontal Corners for 1/2" (12 mm) or 5/8" (16 mm) glass provide hairline-joint assemblies with straight lengths of CRL 11 Gauge Cap Railing. Use Cat. No. 32629 Metal Contact Cement for a secure, permanent bond. Two connector sleeves are required per corner. Standard stainless alloy is 316, suitable for glass railing connections and architectural glass applications.
NOTE: With 1/2" (12 mm) glass use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass. With 5/8" (16 mm) glass use 95CBL Silicone and shims only.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
SKU: GRL10HBS
Ideal for glass railing projects and architectural cap rail systems — order CRL Slip-Fit 90° horizontal corners today to complete your glass railing assembly.
