CRL Matte Black Storefront Glass Center Post Kit 2" x 2-5/8" 180° 60"
CRL Matte Black Storefront Glass Center Post Kit 2" x 2-5/8" 180° 60"
Regular price
$233.79 CAD
Regular price
Sale price
$233.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# S60CKBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Center
Degree
180
Depth
2-5/8 in. (67 mm)
Finish/Color
Matte Black
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
60 in. (1524 mm)
Material
Aluminum
Profile
Rectangular
Width
2 in. (51 mm)
Overview

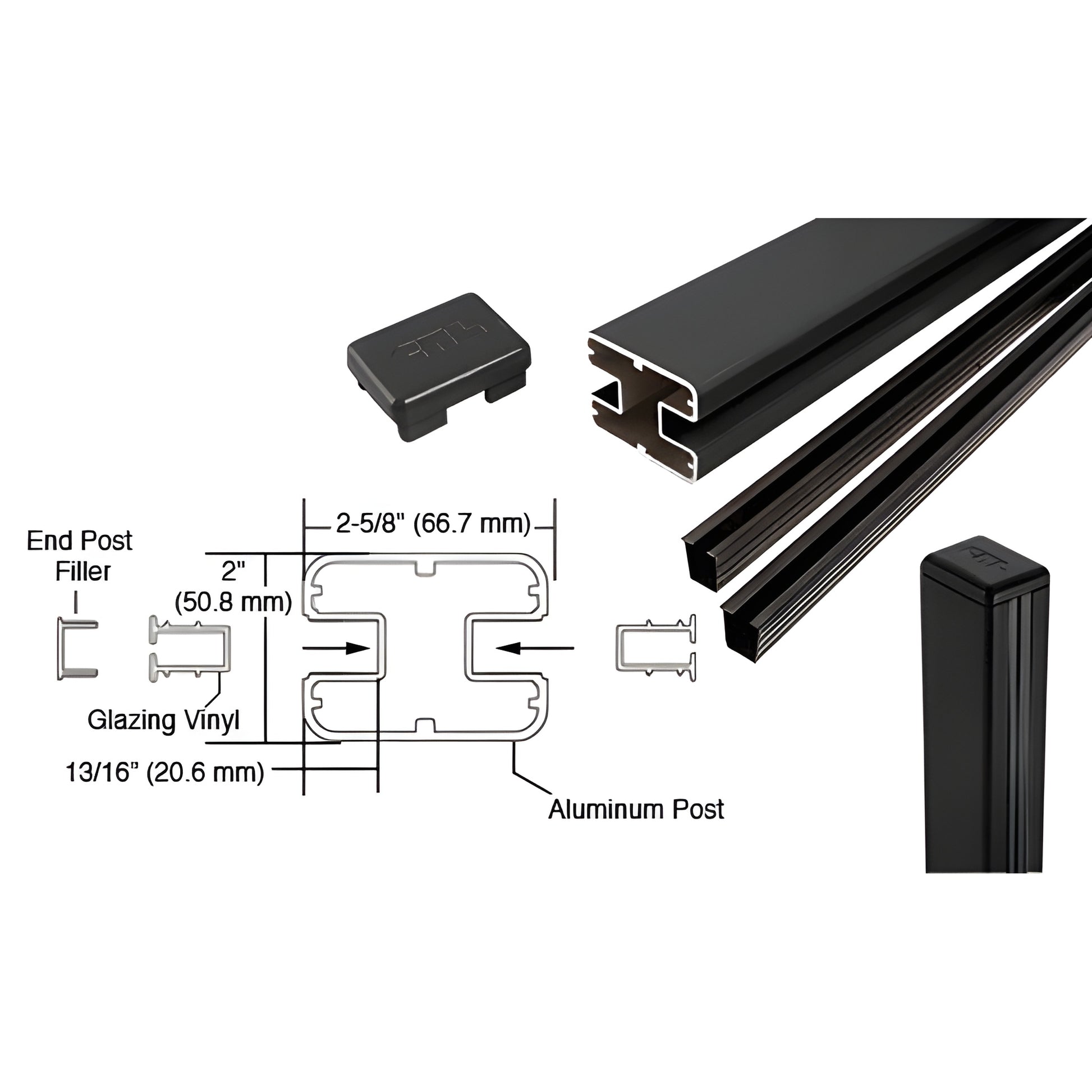

- Standard kit includes post, top cap, and vinyl
- Available in several attractive colors
- Custom colors available upon request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass when dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass when wet glazed
These CRL Kits (SKU: S60CKBL) are glass railing post kits designed to terminate a barrier or join two glass panels at 180 degrees. Ideal for frameless glass balustrades and glass railing systems, the kit includes the post, top cap, and vinyl gasket for dry-glazed 1/4"–3/8" panels and supports 1/2" panels when wet glazed. Choose from several factory finishes or request custom colors for matching architectural and commercial applications.
NOTE: Maximum post spacing is 72" (1.83 m) on center. Maximum panel area should not exceed 24 square feet.
Product Warning:
All ARS/AWS painted-to-order products are non-refundable and non-returnable.
Contact CRL Customer Service to confirm specs, request custom colors, or place an order.
Specifications
CAD Drawings - pdf
