CRL 180° Silver Center Post Kit for Glass Doors 2 x 2-5/8 in 60 in
CRL 180° Silver Center Post Kit for Glass Doors 2 x 2-5/8 in 60 in
Regular price
$246.99 CAD
Regular price
Sale price
$246.99 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# S60CKS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Center
Degree
180
Depth
2-5/8 in. (67 mm)
Finish/Color
Silver Metallic
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
60 in. (1524 mm)
Material
Aluminum
Profile
Rectangular
Width
2 in. (51 mm)
Overview

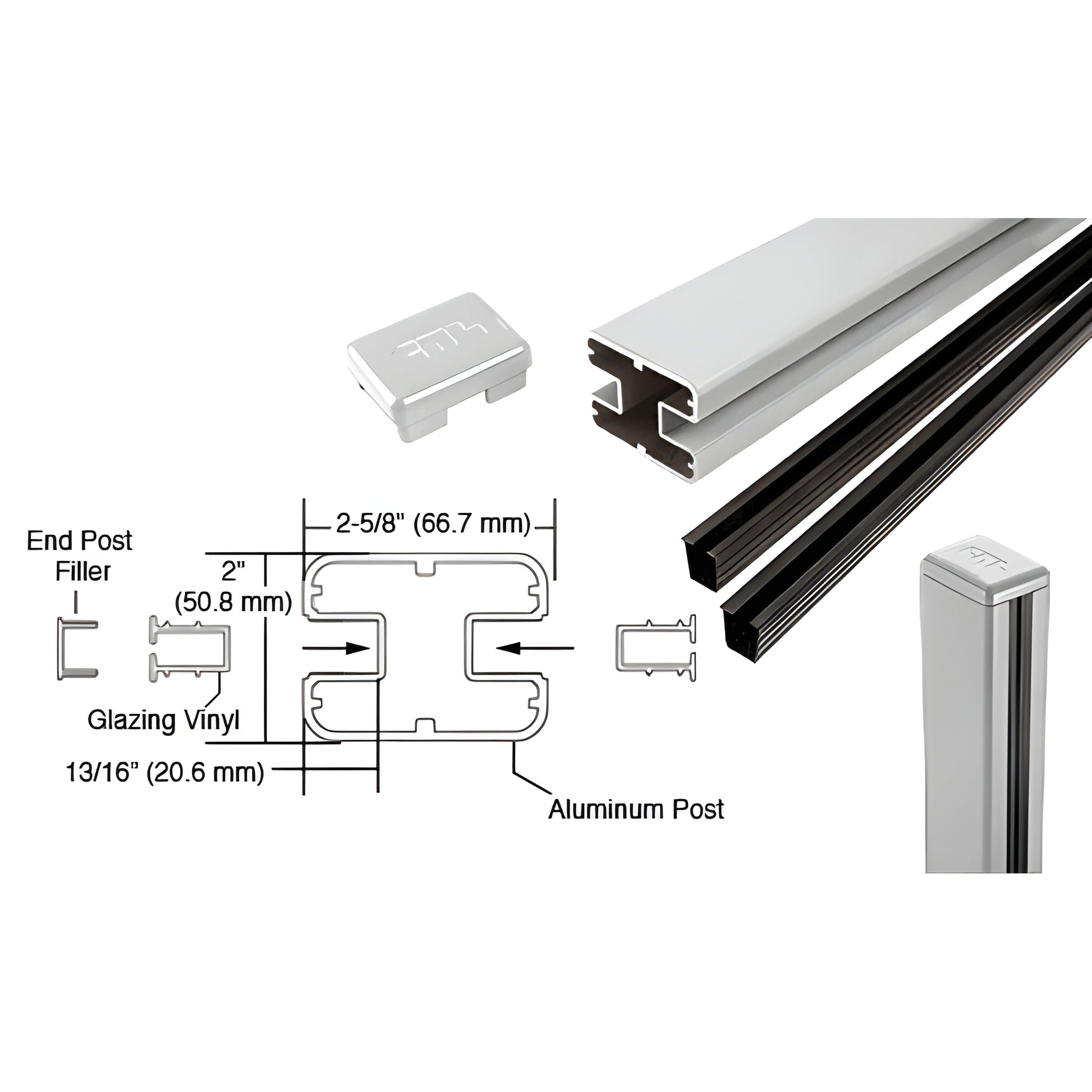

- Standard kit includes post, top cap, and vinyl
- Available in several attractive colors
- Custom colors available upon request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass — dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass — wet glazed
CRL S60CKS Glass Post Kits — Use these CRL kits to fabricate end posts or to join two glass panels at 180°. Designed for both dry-glazed (vinyl) and wet-glazed installations, the kit supports 1/4"–3/8" (6–10 mm) glass with vinyl and 1/2" (12 mm) glass when wet glazed. Available in multiple attractive finishes, with custom colors painted to order.
NOTE: Maximum post spacing is 72" (1.83 m) on center. Maximum panel area should not exceed 24 square feet.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
SKU: S60CKS — Contact CRL to confirm finish availability and to place your order.
Specifications
CAD Drawings - pdf
