CRL Matte Black 60" Glass Railing End Post Kit 2" x 2-5/8" 180°
Item# S60EKBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Configuration
End
Degree
180
Depth
2-5/8 in. (67 mm)
Finish/Color
Matte Black
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
60 in. (1524 mm)
Material
Aluminum
Profile
Rectangular
Width
2 in. (51 mm)

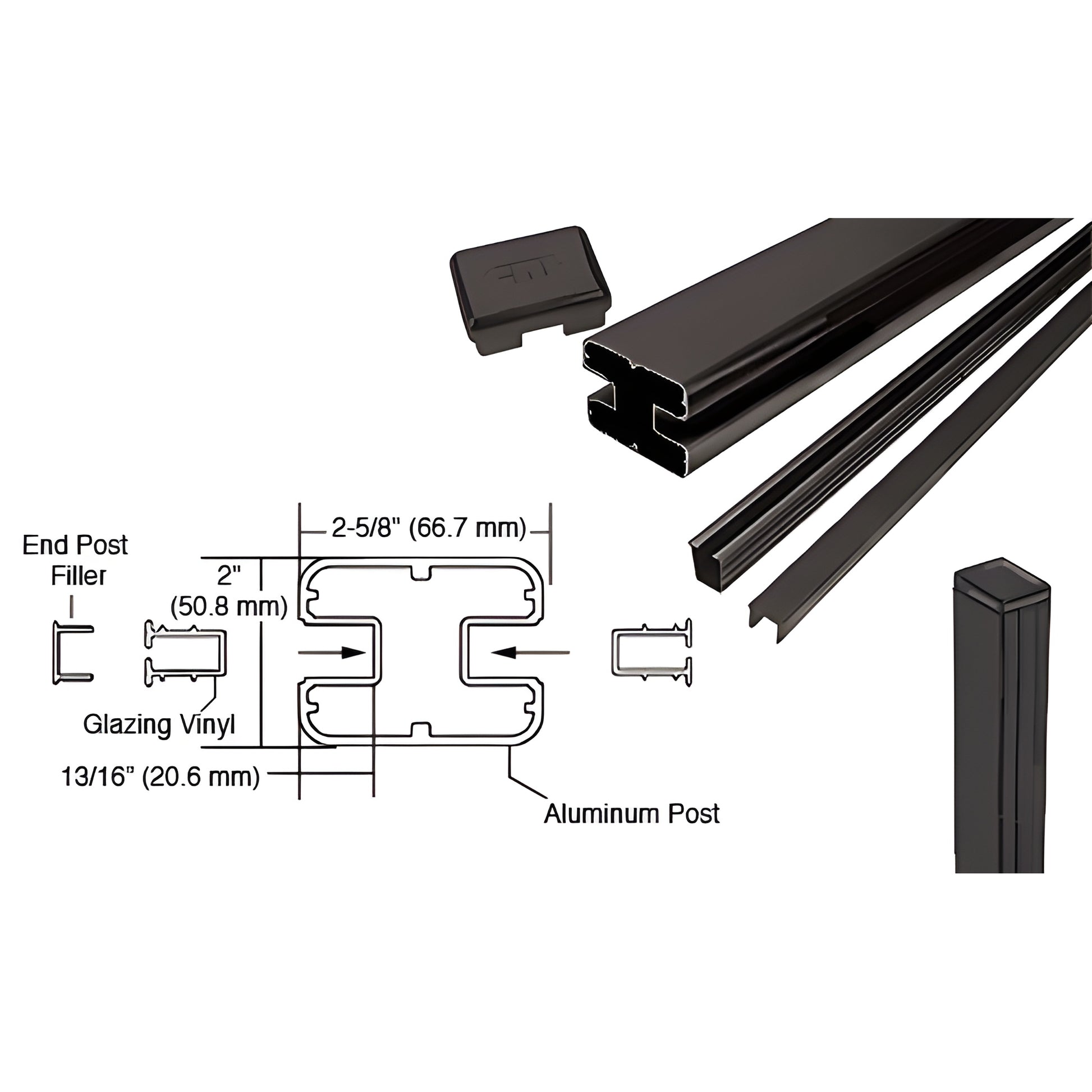

- Standard kits include post, top cap, and vinyl
- Available in several attractive colors; custom colors available upon request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass when dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass when wet glazed
These CRL Kits (SKU: S60EKBL) are designed for fabricating end posts for glass barriers and railings. Ideal for glass railing end post applications, they support both dry-glaze vinyl installation for thinner glass and wet-glaze installation for 1/2" panels. Available in multiple finishes with custom color options for matching architectural or commercial projects.
NOTE: Maximum post spacing is 72" (1.83 m) on center. Maximum panel area should not exceed 24 square feet per panel.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Most shipping weights are approximate and have not been verified. If you require an exact weight to determine shipping costs, request it from CRL Customer Service before placing your order. Product images are of the actual product or a close representation; colors may vary based on your monitor settings.
Ready to order a glass railing end post kit in custom colors? Contact CRL Customer Service to confirm weight and finish options.
CAD Drawings - pdf
