CRL 48in Matte Black 135° Rectangular Glass Railing Post Kit
Item# S485KBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Centerline
2 in. (51 mm)
Configuration
Corner
Degree
135
Finish/Color
Matte Black
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
48 in. (1219 mm)
Material
Aluminum
Profile
Rectangular
Width
2-3/8 in. (60 mm)

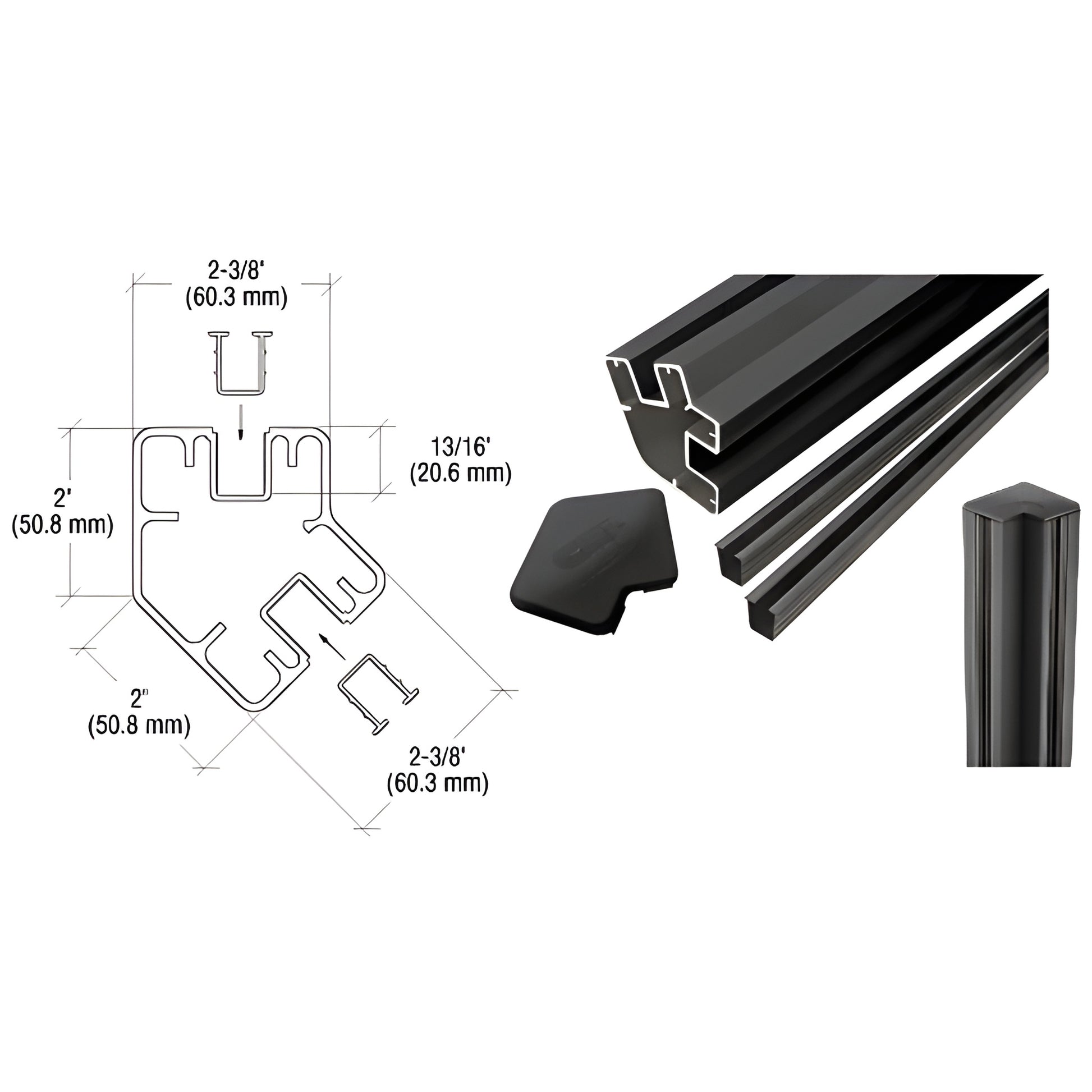

- Standard kit includes post, top cap, and vinyl
- Designed for 135° glass partitions—ideal 135-degree glass partition post kit (SKU S485KBL)
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass wet glazed
- Available in several attractive colors; custom colors available upon request
CRL Kits S485KBL are engineered for fabricating posts that join two panels at a 135° angle. These glass partition post kits support 1/4"–3/8" (6–10 mm) panels when dry glazed with vinyl and 1/2" (12 mm) panels when wet glazed. Choose from multiple stock finishes or request custom colors to match your interior design.
Installation limits: Maximum post spacing 72" (1.83 m) on center. Maximum panel area should not exceed 24 sq ft per panel.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before submitting your order. Product images show the actual product or a close representation; colors may vary depending on your monitor.
Order SKU S485KBL now to get a durable, customizable 135-degree glass partition post kit—contact us for custom colors or shipping weight details.
CAD Drawings - pdf
