CRL Matte Black Bottom Glass Door Patch w/ 1NT302 Insert

• 2-9/16" (65 mm) Pivot Setback
• For 3/8" or 1/2" (10 or 12 mm) Glass
• Use Monolithic Tempered Glass

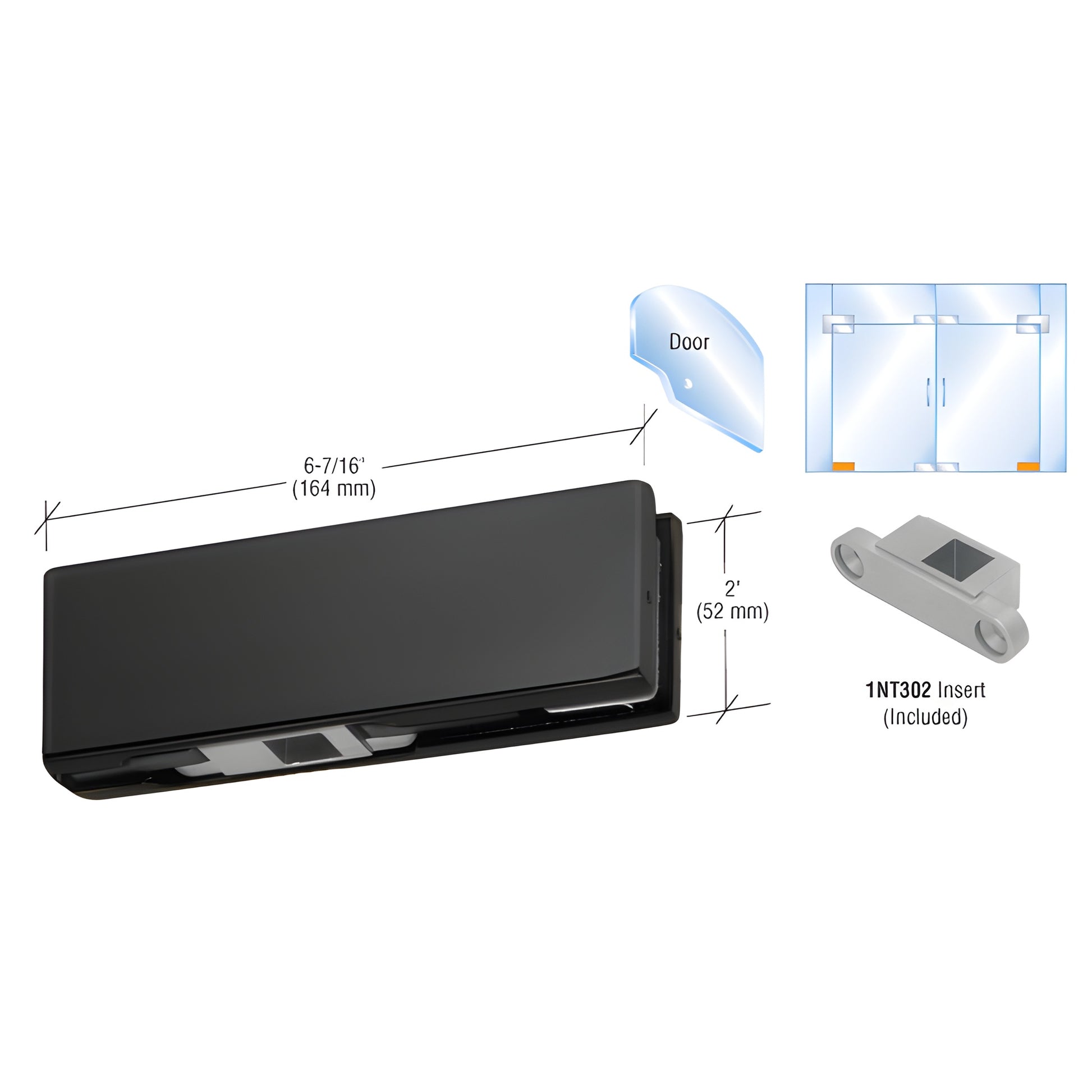

CRL Bottom Door Patch Fitting (SKU: PH11DMBL) — heavy-duty glass door bottom patch fitting designed for frameless glass doors. Includes the No. 1NT302 Insert for tapered square spindle Casma Floor Closers or the 1NT404 Free Swing Pivots. Finished covers come in four standard finishes. Supplied gaskets accommodate either 3/8" or 1/2" (10 or 12 mm) glass, making this an ideal choice for glass storefronts, office partitions, and interior frameless glass doors that require a bottom pivot solution.

Glass door fabrication & limits

The following guidelines apply when building a door using this bottom patch fitting:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.07 m)

If the door exceeds any of these limits, use full door rails.

Glass fabrication required:
One 3/4" (19 mm) diameter hole and corner notch.

Comes with:
Template and instructions.

Product Warning:
Not for use with laminated glass.

Guidelines for 1/2" glass doors using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.
