- Compact Design with Base, Cap, and Mounting Stud for Mounting to Steel, Concrete, or Wood Substrate
- For Use With 1/2" and 3/4" (12 and 19 mm) Monolithic Tempered Glass or 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Tempered Glass Using Kuraray SentryGlas® Interlayer
- High Grade 316 Stainless Steel

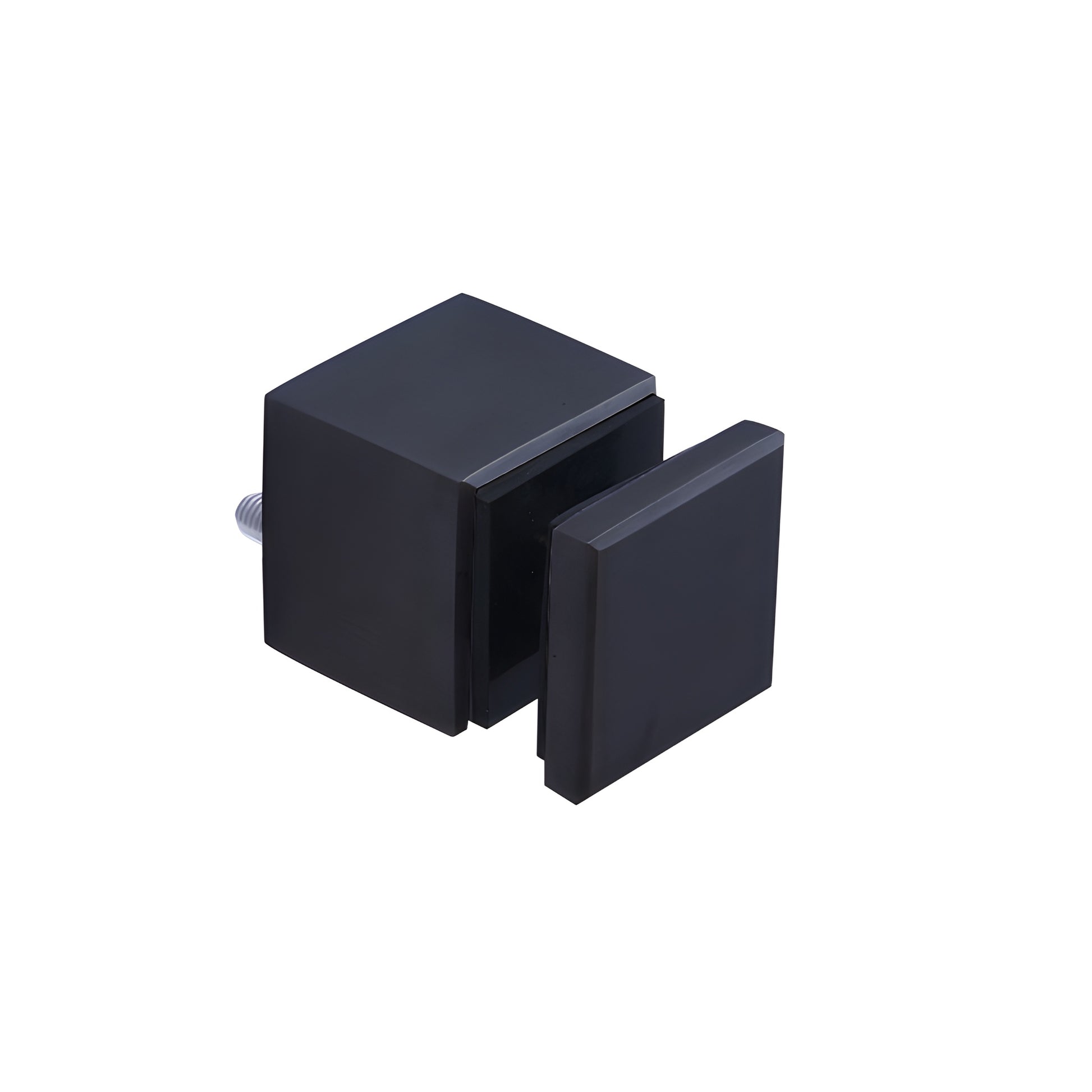

These heavy-duty CRL
Glass Rail Standoff Base and Caps
work with hand or guard railings. The standoff fitting is 2" (51 mm) square with a 1-3/4" (44.5 mm) base. It comes with a 3/8"-16 x 2" Allen stud for mounting to steel, along with necessary gaskets and grommet. Use our Cat. No. SSW12 Spanner Wrench to tighten the cap. Fabricated with 316 grade stainless steel in brushed or polished finishes.
SPECIFICATIONS
For use with 1/2"–27/32" (12–21.52 mm) Tempered Monolithic or Tempered Laminated Glass (Do Not Use with Raw or Annealed Glass)
Glass Fabrication: One 3/4" (19 mm) Diameter Hole Per Fitting
Spacing: Maximum spacing between fittings depends on use and mounting conditions; Minimum hole spacing between standoffs is 4" (102 mm). An Engineering Report is available.
Product Warning
For use with 1/2" to 27/32" (12 to 21.52 mm) tempered monolithic or tempered laminated glass. Do not use with raw or annealed glass.
NOTE
Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.
