CRL Laguna Matte Black Wall-Mount Single Barn Door Kit w/ Softbrake

• Softbrake braking system for controlled final travel
• Improved anti-lift design with surface and flush mount fittings included
• Assembly contains all necessary hardware for 3/8" or 1/2" (10 or 12 mm) tempered glass
• Alloy 316 stainless steel construction for corrosion resistance

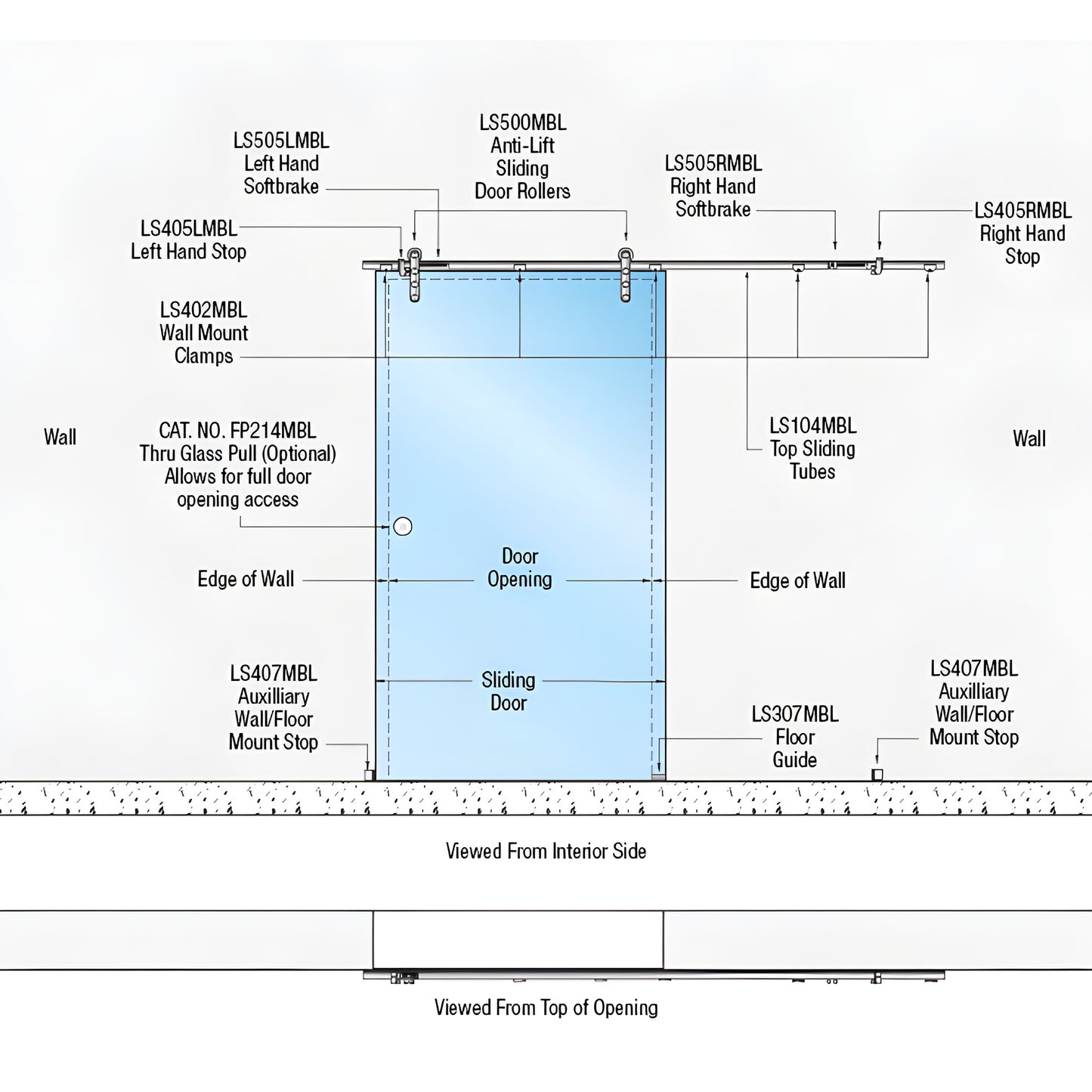

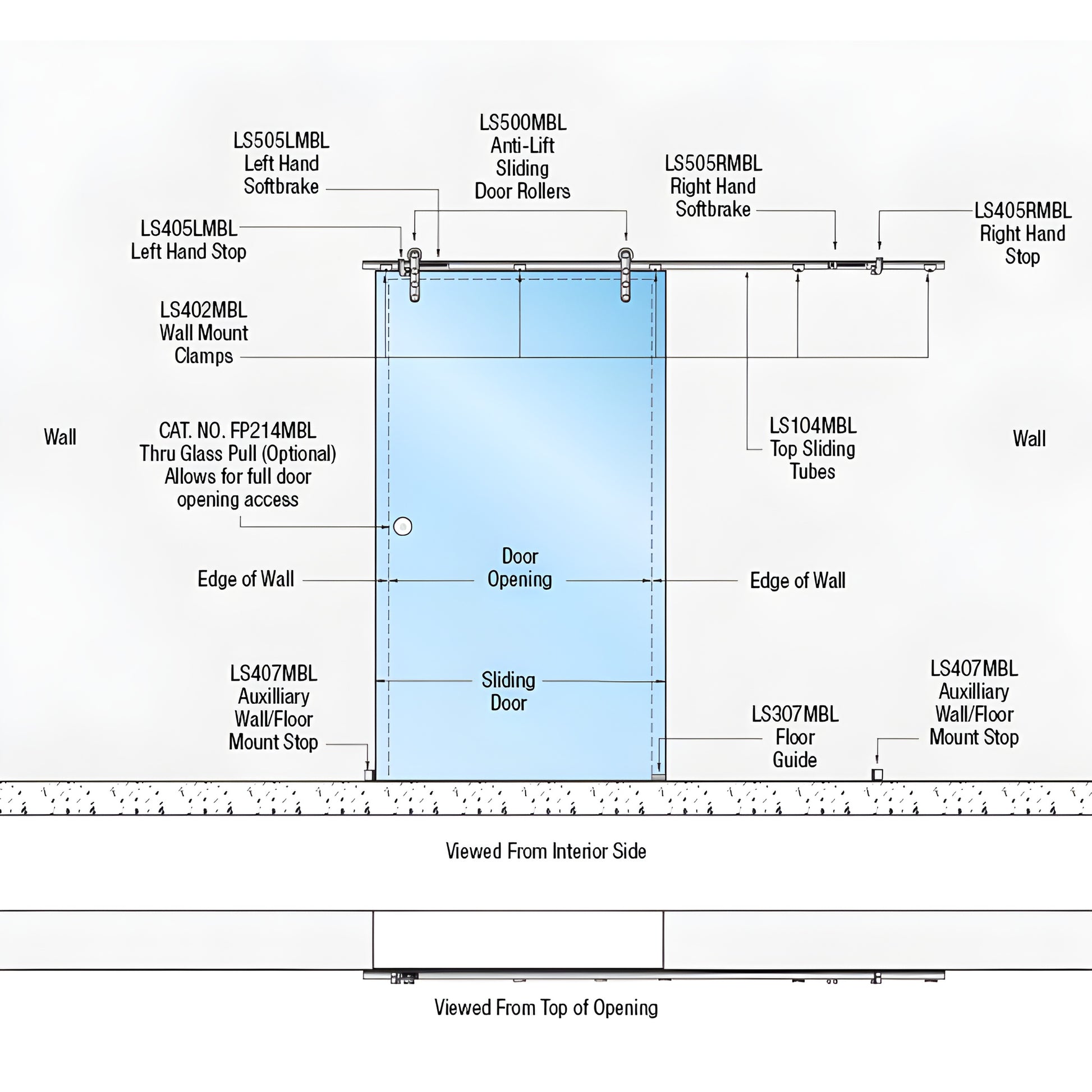

The CRL Laguna Series Wall Mount Single Slider with Softbrake Kit (SKU: LSWM7MBL) is a complete wall-mount sliding door hardware kit (glass not included) engineered for interior sliding glass door and glass shower door installations using tempered glass. The integrated Softbrake braking system controls the last 2-1/4" (57 mm) of travel for smooth, quiet closing—an ideal feature for high-end glass shower doors and residential or commercial glass partitions.

The anti-lift top rollers attach to the glass using the supplied Surface Mount or Flush Mount fittings. Rollers provide 1/8" (3 mm) vertical adjustment to simplify door alignment. This system is compatible only with 3/8" or 1/2" (10 or 12 mm) tempered glass; laminated glass is not permitted.

DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm product suitability for the intended application and site conditions. Installers must be qualified and ensure compliance with local, state, and federal regulations, safety requirements, and correct selection of fixings and installation procedures.


For a reliable, corrosion-resistant wall-mount single-slider with softbrake for tempered glass, add SKU LSWM7MBL to your cart or contact CRL
