CRL
CRL

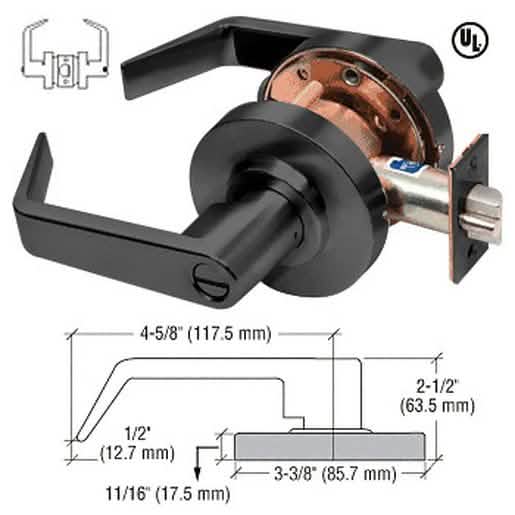

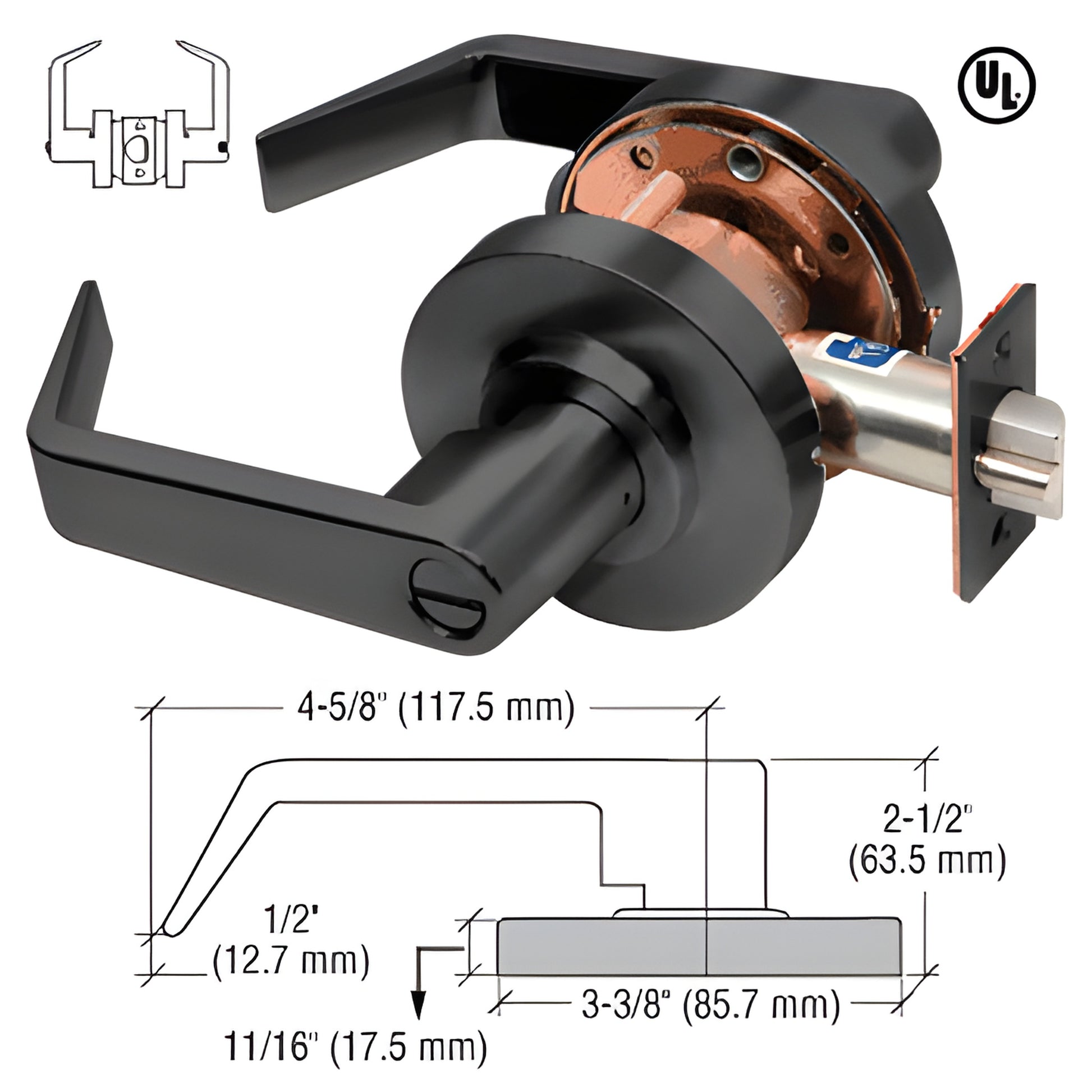

CRL Matte Black Heavy-Duty Grade 1 Privacy Door Lever Lockset
Item# D30PRVMBL
Shipping Weight: 4.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 1
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Matte Black
Fire Rating Hour
3
Function
Privacy
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Operation Type
F76 Privacy Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Heavy Duty Lever Lockset
UL Listed
Yes
- ANSI A156.2 Grade 1
- UL Listed
These CRL Heavy-Duty Commercial Grade 1 and 2 Lever Locksets are non-handed and reversible for easy installation. UL Listed with a 3-hour fire rating, these privacy lever locksets fit 1-3/8" to 1-3/4" (35–45 mm) door thicknesses and use a 2-3/4" (70 mm) backset. An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike is included for a complete, code-compliant solution. SKU: D30PRVMBL
PRIVACY FUNCTION DESCRIPTION: Push-button locking from the inside; emergency access from the outside using a narrow flat head screwdriver or by rotating the inside lever. Ideal for commercial offices, restrooms, and interior privacy applications where a 3-hour fire rating and Grade 1 durability are required.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor settings.
Order SKU D30PRVMBL now to secure a UL-listed, 3-hour fire-rated commercial privacy lever lockset.
Installation Instructions
