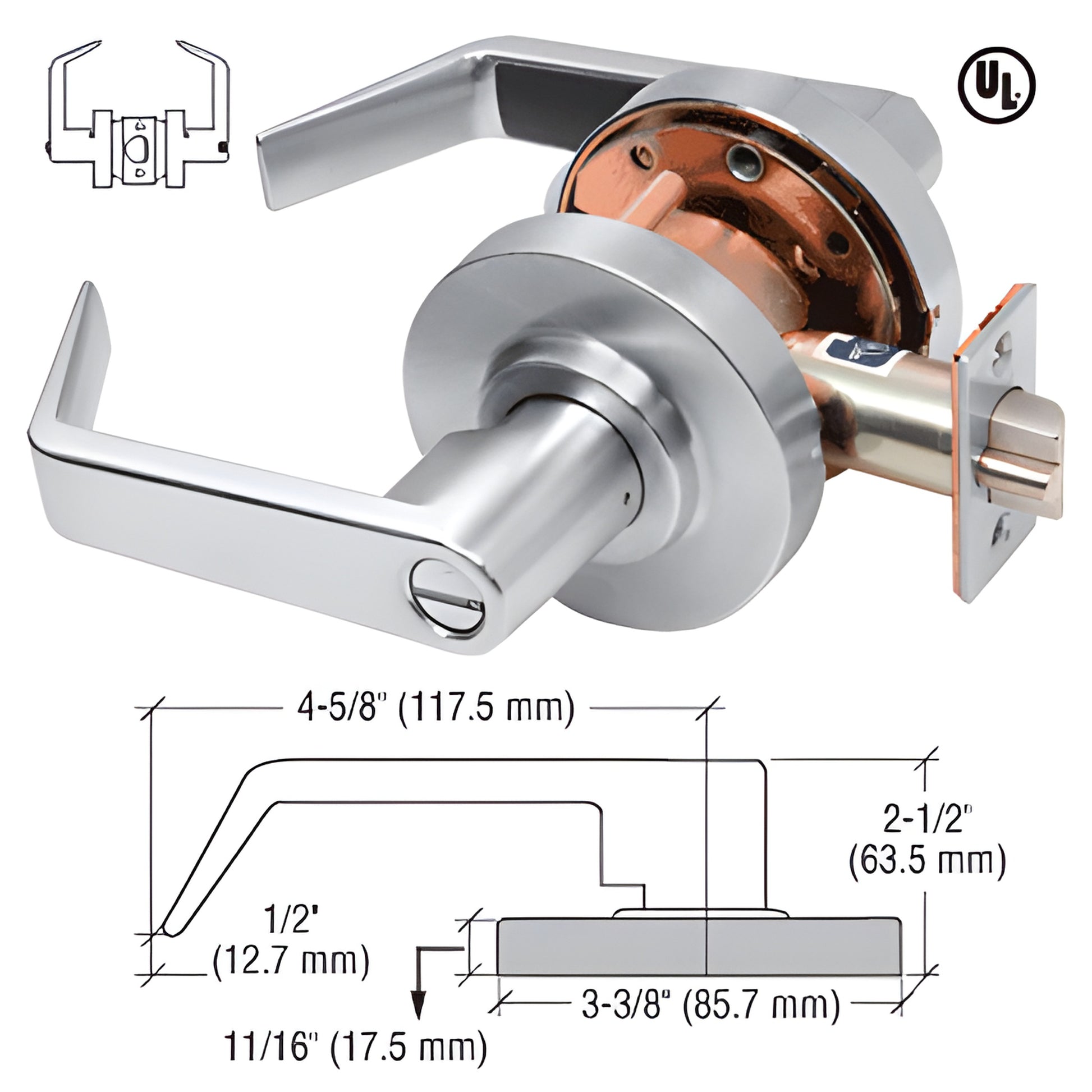

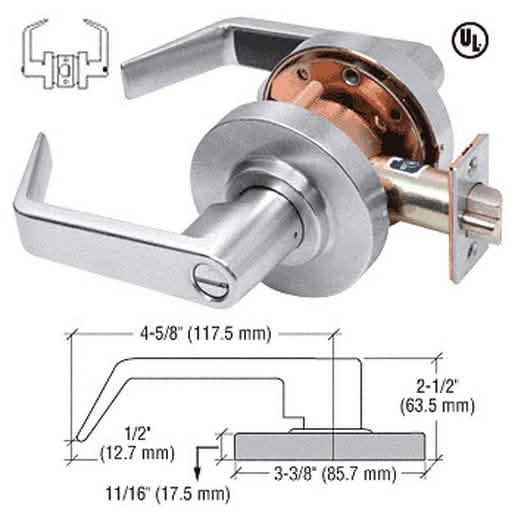

• Brushed chrome heavy-duty privacy lever lockset (D30PRV) with round rosette, included strike, UL 3 hour fire rating.
1 1

CRL

CRL Brushed Chrome Grade 1 Commercial Privacy Lever Lockset

CRL Brushed Chrome Grade 1 Commercial Privacy Lever Lockset

$161.61 CAD
$161.61 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# D30PRV
Shipping Weight: 4.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 1
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Brushed Chrome
Fire Rating Hour
3
Function
Privacy
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Operation Type
F76 Privacy Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Heavy Duty Lever Lockset
UL Listed
Yes

Overview

  • ANSI A156.2 Grade 1
  • Clutch Feature
  • UL Listed

These CRL heavy-duty commercial Grade 1 and 2 lever locksets (SKU D30PRV) are non-handed and reversible, designed for commercial and institutional doors. UL Listed with a 3-hour fire rating, they fit door thicknesses from 1-3/8" to 1-3/4" (35–45 mm) with a 2-3/4" (70 mm) backset. An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike is included for secure installation.

PRIVACY FUNCTION DESCRIPTION: Push-button locking from the inside for privacy. Outside access is possible with a narrow flat-head screwdriver or by rotating the inside lever—offers a straightforward privacy function for offices, restrooms, and private rooms.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request it prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor.


Order this UL-listed, 3-hour fire-rated commercial lever lockset (D30PRV) for reliable privacy and heavy-duty performance.

Specifications

Templates
Template d10 d15 pass template.pdf
