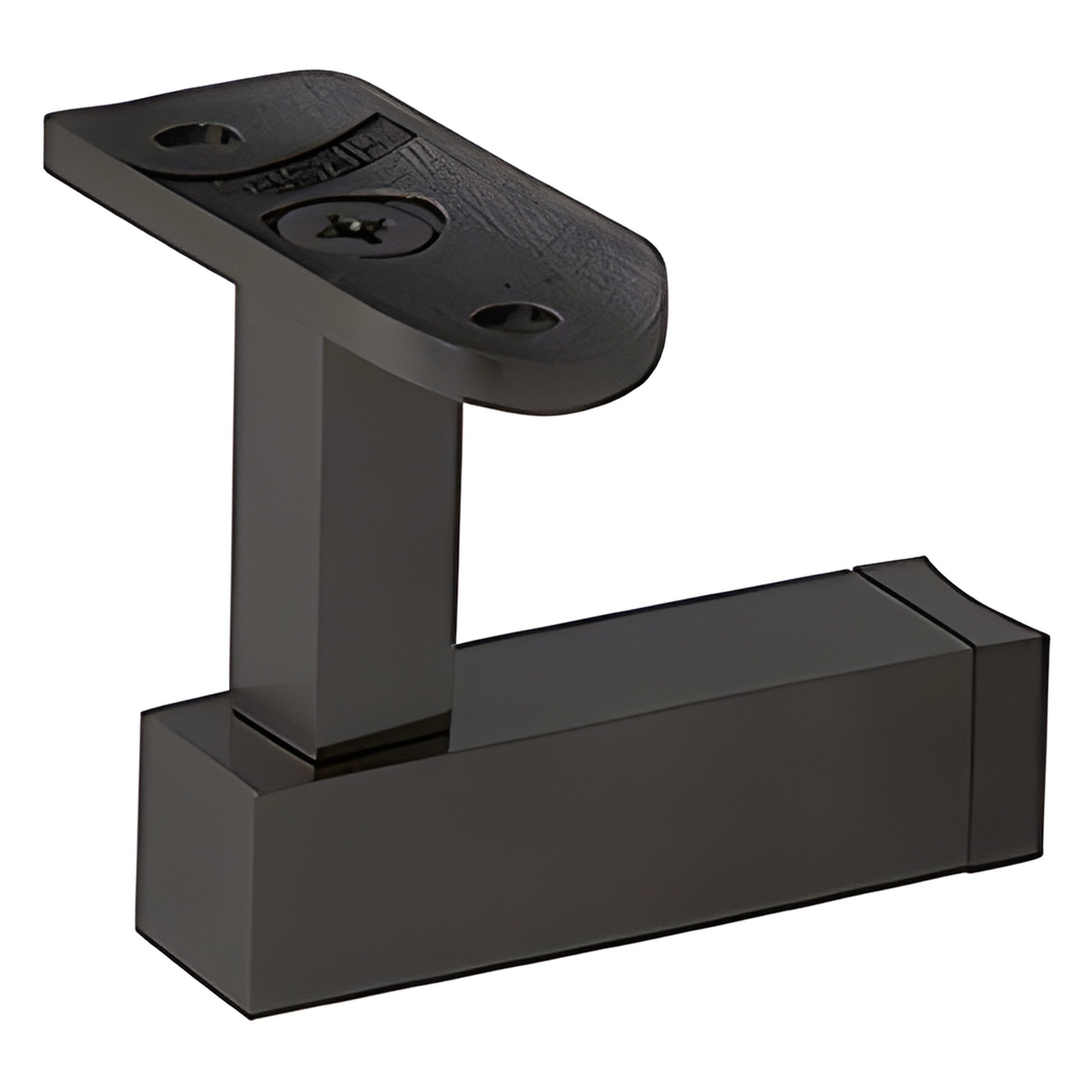

CRL Shore Series Matte Black Post-Mount Handrail Bracket
Item# HR5EPMBL
Shipping Weight: 10.208 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.208 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Centerline Width Projection
2-1/4 in. (57 mm)
Finish/Color
Matte Black
Material
Aluminum
- Supports 1-1/2" to 2" (38 to 50.8 mm) diameter hand rail tubing — fits 1.5", 1.9" and 2" rails
- Ready to mount to 1-1/4" or 1-1/2" (31.8 or 38 mm) Schedule 40 vertical posts
- Two architectural finishes available for design flexibility
This CRL Shore Series Post Mounted Hand Rail Bracket (SKU: HR5EPMBL) accepts 1-1/2", 1.9" or 2" (38, 48.3 or 50.8 mm) diameter hand rail tubing and mounts directly to Schedule 40 vertical posts. Ideal for commercial and residential railing projects, the bracket’s two architectural finishes provide durable, coordinated styling for stair and balcony guardrails.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.
Order the Shore Series post-mounted hand rail bracket (HR5EPMBL) for a reliable, finish-matched railing solution — add to cart or contact CRL for volume pricing.

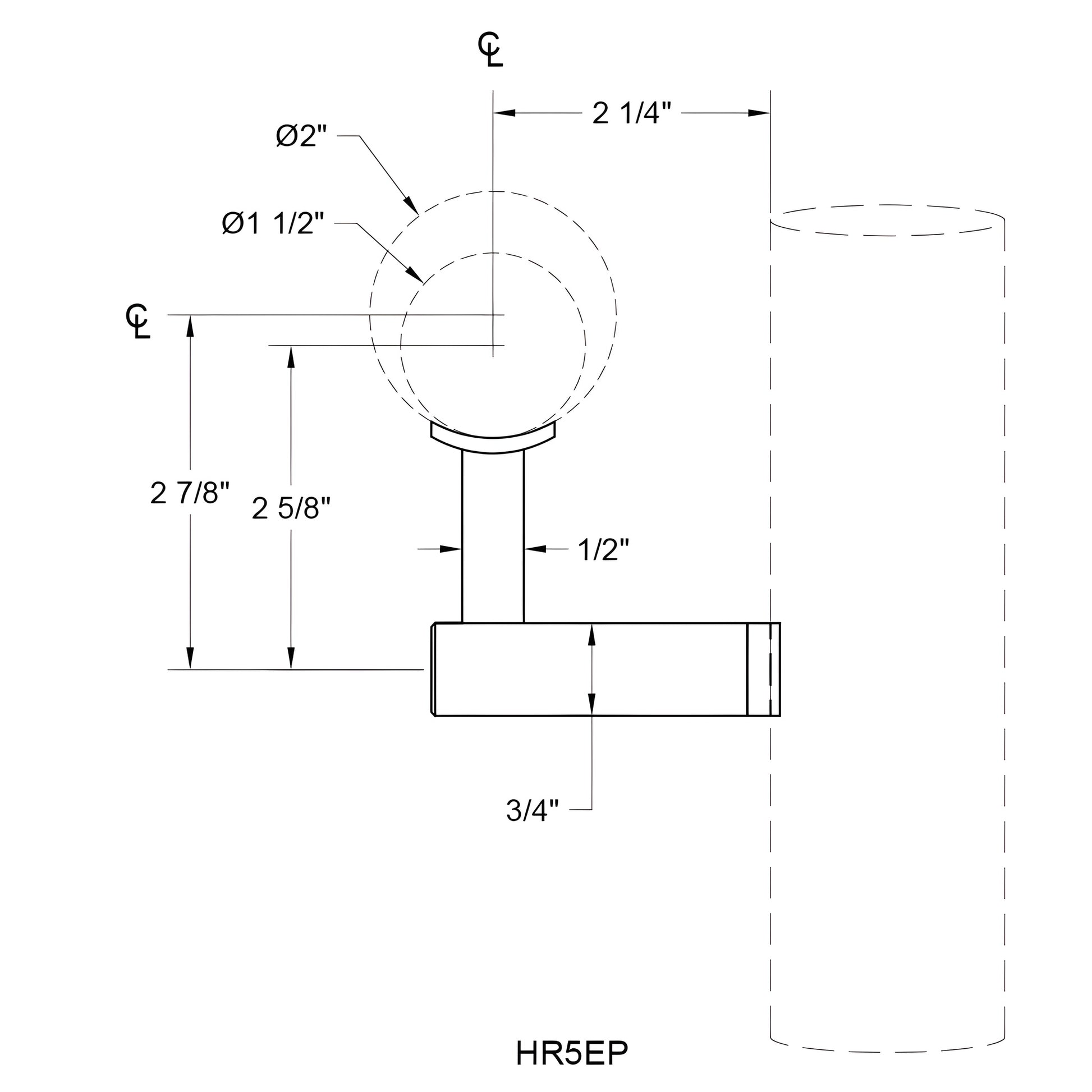

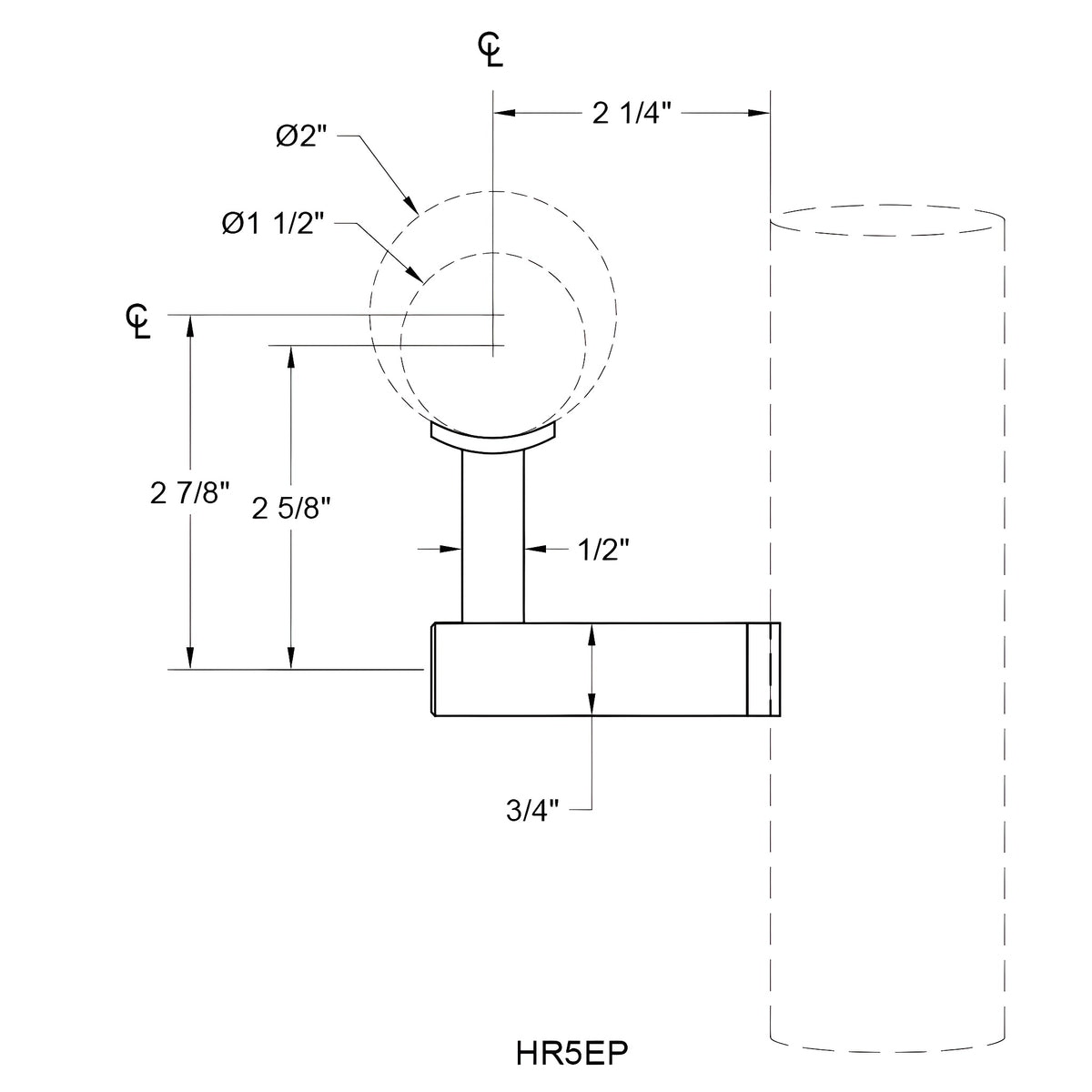

CAD Drawings - pdf
