CRL 180Β° Narrow Floor Door Closer - Medium Duty, No Hold Open
CRL 180Β° Narrow Floor Door Closer - Medium Duty, No Hold Open
Regular price
$234.31 CAD
Regular price
Sale price
$234.31 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8462
Shipping Weight: 9.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Auxiliary Stop Recommended
Yes

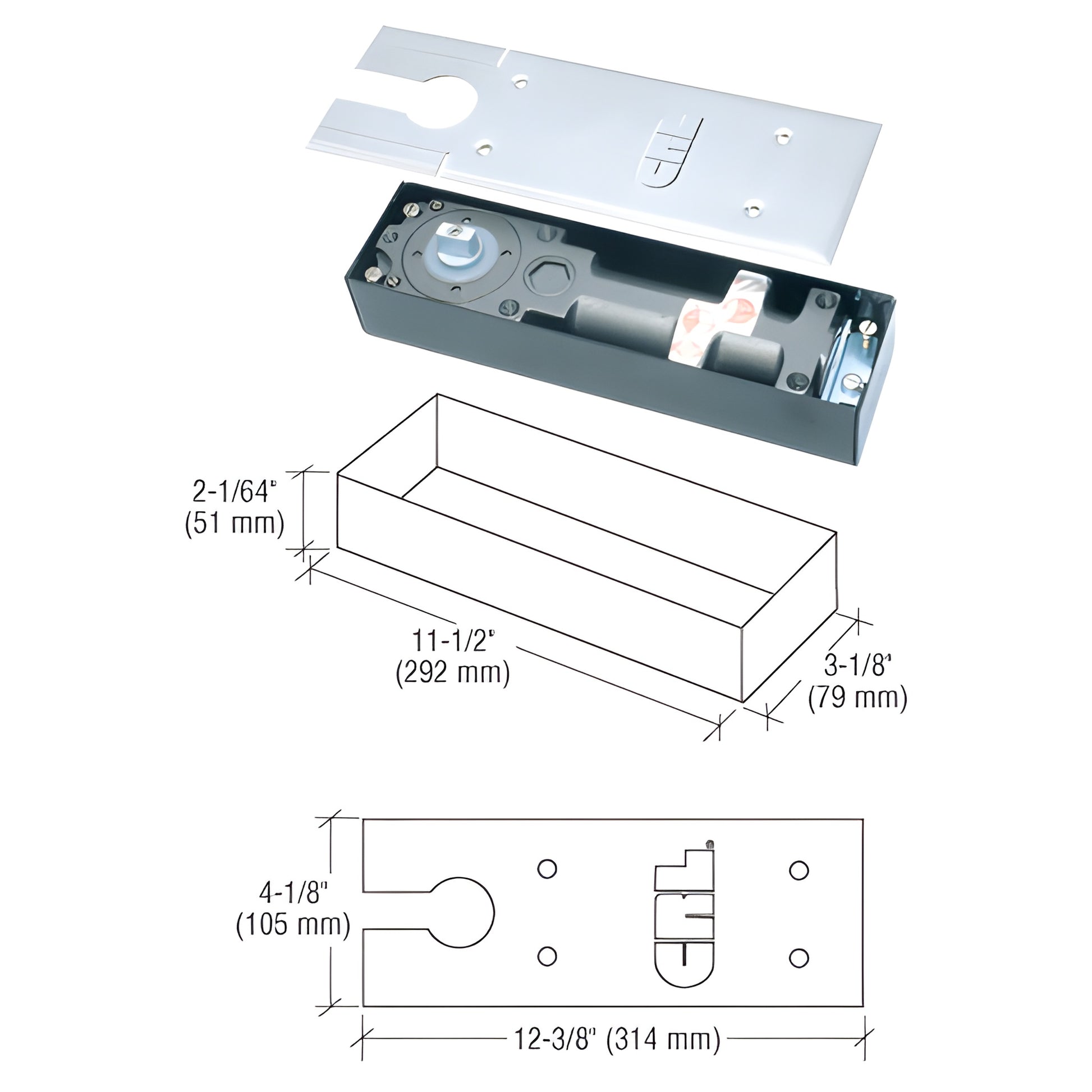

Body Height
2-1/64
Body Length
11-1/2
Body Width
3-1/8
Closer Body With Box
Yes
Closer Type
Floor Closer
Door Height
96
Handing
Double Acting
Includes
CRL84CB, CRL9040S2
Independent Closing and Latching Valves
Yes
Interchangeable Spindles
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
48 Inches
Maximum Door Width - Interior
54 Inches
Maximum Weight Center Hung
264
No Hold Open
180Β°
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL84CB, CRL9040S3
Similar
CRL8542, J990NHOD
Spindle Included
Yes
Spring Size
Medium
UL Listed
Yes
Overview
- Perfect narrow-width floor mounted door closer for CRL patch hardware (SKU: CRL8462)
- Interchangeable spindle heights for different finished floor clearances
- 5 Year Limited Warranty
- UL Listed
CRL Narrow Width Floor Mounted Door Closers are optimized for use with patch hardware where smaller cover plates provide a cleaner, more attractive installation. The closer includes separate valves to independently control closing and latching speeds. Available in 90Β° hold-open and no hold-open models.
The closer ships with a 1/8" (3 mm) collar-height spindle, providing approximately 5/16" (8 mm) clearance from finished floor to door bottom. Optional spindles are available to accommodate different finished floor heights. Additional accessoriesβcover plates, pivots, center-hung arms, and offset armsβare available to complete your installation.
Note: Designed to open up to a maximum of 180Β°. An auxiliary floor or overhead stop is required to stop the door at less than 180Β°.
Specifications:
Maximum Door Weight: 264 lbs (120 kg)
Maximum Interior Door Width: 42" (1.07 m)
Maximum Exterior Door Width: 38" (965 mm)
Product Warning:
The 8400 Series Floor Closer is designed to open to a maximum of 180Β°. An auxiliary floor or overhead stop is required to stop the door at less than 180Β°.
Order the CRL8462 narrow-width floor closer for patch hardware todayβcontact CRL or your local distributor to get pricing and lead time.
