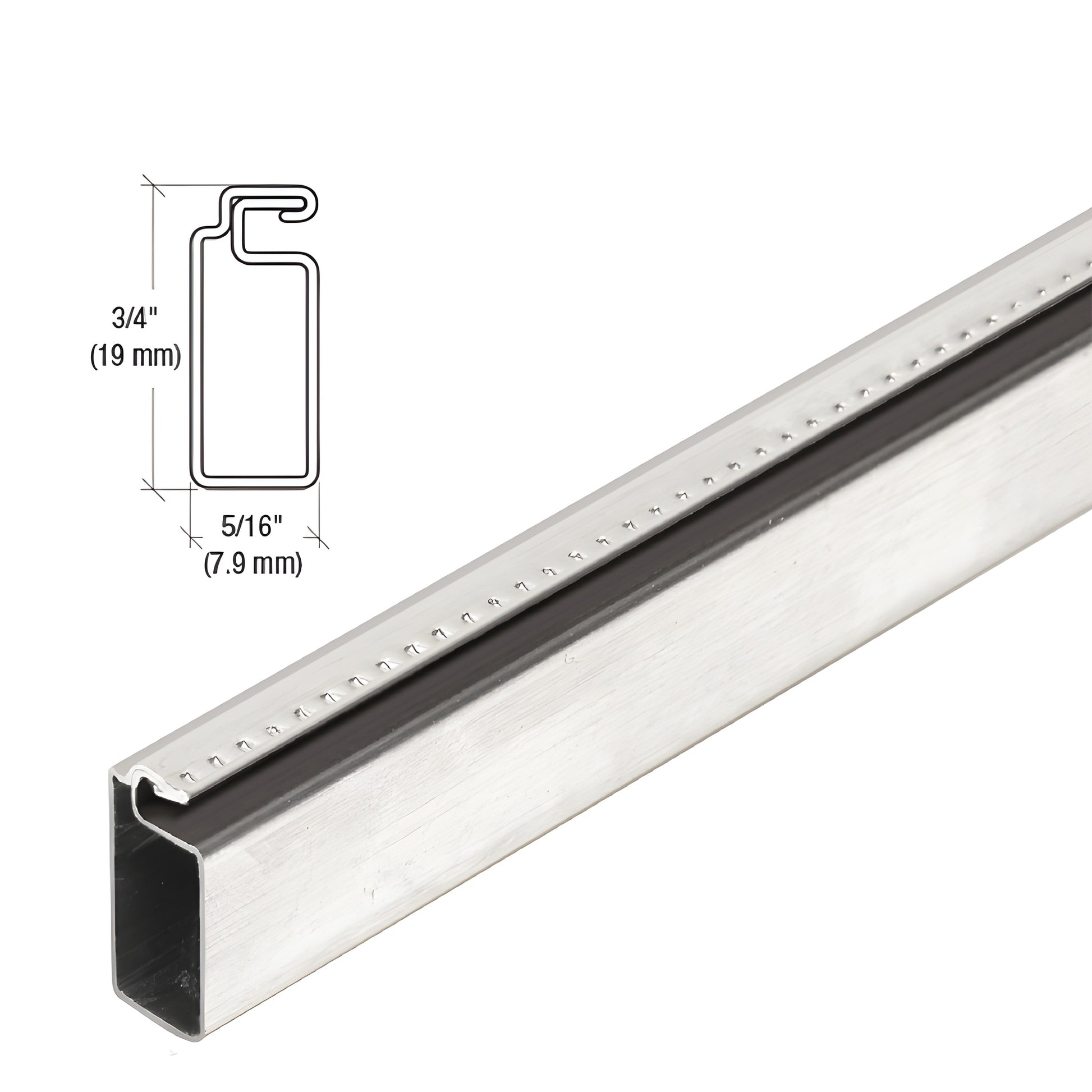

CRL Mill 3/4 in x 5/16 in Roll-Formed Screen Frame 146 in

• Typical Applications: sliding windows, storm windows, and aluminum screen frame repairs
• 0.017" (0.43 mm) wall thickness – roll formed aluminum
• Multiple finishes available for corrosion resistance and aesthetic match

This CRL 3/4" x 5/16" (19 x 7.9 mm) Screen Frame (SKU: WSF34516M) is manufactured from 0.017" mil roll formed aluminum with a knurled lip and cambered profile to maintain screen tension. Designed to accept CRL .150" spline, this aluminum screen frame suits screen replacement, custom window screens, and storm window applications. Compatible corner options include WSC105 aluminum corners or WSPC105 plastic corners for mitered frames, and SWSC516 square cut plastic corners for square-cut frames.

SPECIFICATIONS:
Material: Roll formed aluminum
Wall Thickness: .017" (.43 mm)
Uses Spline Size: .150" (3.81 mm) — recommended spline may vary to .165"
Uses Corners: WSC105 or WSPC105 for mitered corners; SWSC516 for square cut corners


Product Warning:

Stock lengths must ship via common carrier unless cut for UPS. Due to coil stock tolerances and roll forming stretch, actual thickness can vary ±.002" (±.05 mm). Recommended spline size for this frame may range from .150" to .165" depending on spline groove width, spline diameter, and type of screen mesh used.

Order the CRL 3/4" x 5/16" aluminum screen frame (WSF34516M) for durable, tension-retaining screen repairs and installations. Add to cart to get started.
