CRL Bronze Roll-Formed Replacement Screen Frame 3/4 x 5/16 in 146 in
Item# WSF34516B
Shipping Weight: NA
Shipping Limitations: Requires Cutting Instructions for UPS
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: Requires Cutting Instructions for UPS
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Case Quantity
152
Finish/Color
Bronze
Height
3/4
Length
146
Material
Aluminum
Roll Formed
Yes
Wall Thickness
0.017
Width
5/16
- Designed for sliding windows and storm windows
- 0.017" (0.43 mm) roll-formed aluminum wall thickness
- Multiple finishes available

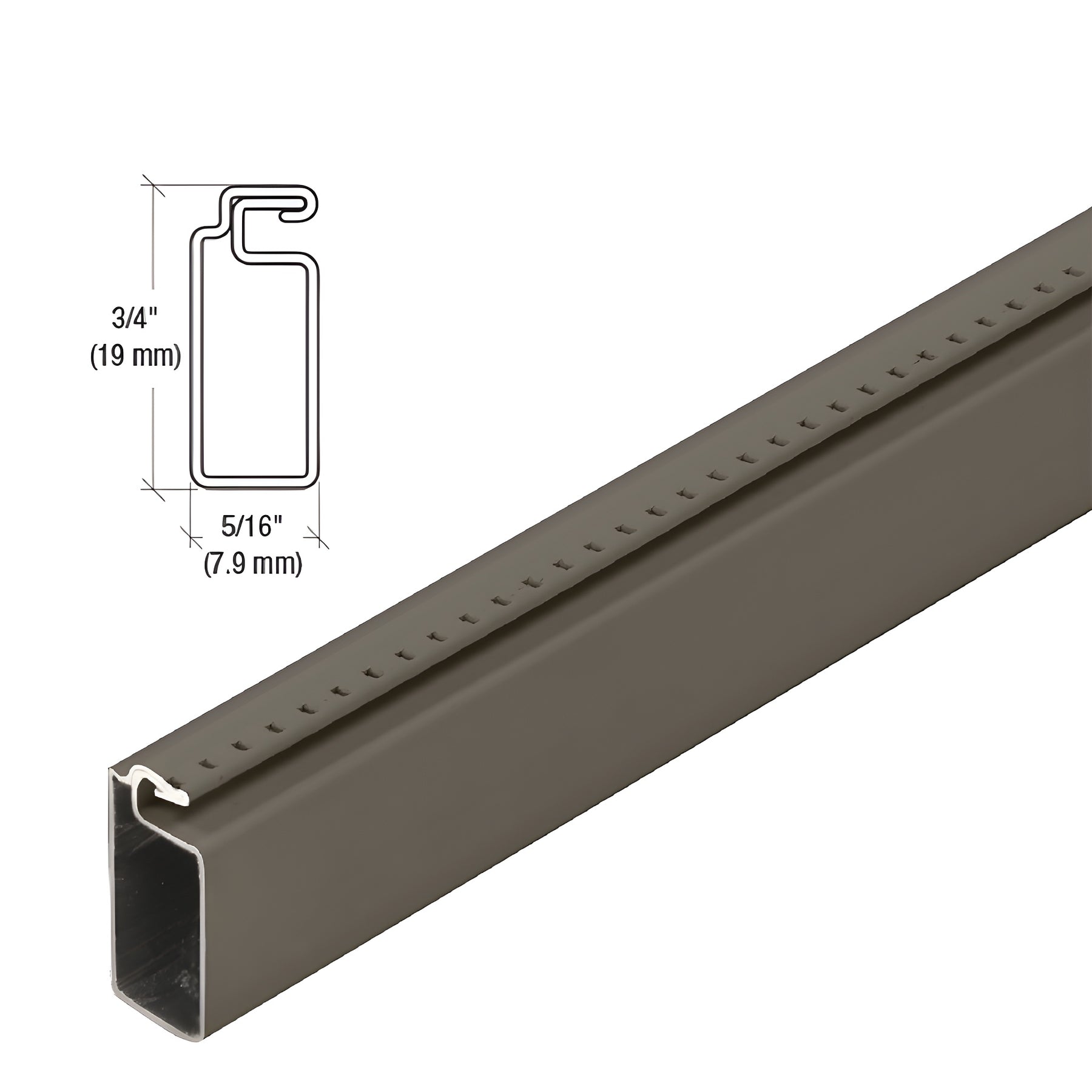

This CRL 3/4" x 5/16" (19 x 7.9 mm) screen frame (SKU: WSF34516B) is made from .017" roll-formed aluminum. The frame features a knurled lip and a cambered (slightly bowed) profile to retain screen tension after installation. It accepts CRL .150" spline for reliable screen retention. Use WSC105 aluminum corners or WSPC105 plastic corners for mitered frame corners, or SWSC516 series square cut plastic corners for square-cut frame applications.
SPECIFICATIONS:
Material: Roll formed aluminum
Wall Thickness: .017" (.43 mm)
Spline Size: .150" (3.81 mm) recommended (usable up to .165" depending on spline groove width and screen wire)
Compatible Corners: WSC105 or WSPC105 (mitered); SWSC516 (square cut)
Product Warning:
Stock lengths must ship via common carrier unless specifically cut for UPS. Due to coil stock tolerances and roll-forming stretch, actual wall thickness can vary by ± .002" (.05 mm); this is standard in the industry. Spline recommendations vary from .150" to .165" diameter depending on spline groove width, spline diameter, and the type of screen wire used.
Most shipping weights are approximate. If an exact weight is required to determine shipping costs, please contact CRL Customer Service before ordering. Product images are representative; colors may vary with monitor settings.
Order the CRL 3/4" x 5/16" roll-formed aluminum screen frame (WSF34516B) today to get durable, tension-retaining frames for sliding and storm windows.
