CRL Bronze Roll-Formed Aluminum Screen Frame 1 in x 7/16 in - 144 in

• Typical applications: sliding, storm, and casement windows
• .025" (.63 mm) wall thickness (roll formed aluminum)
• Several finishes available

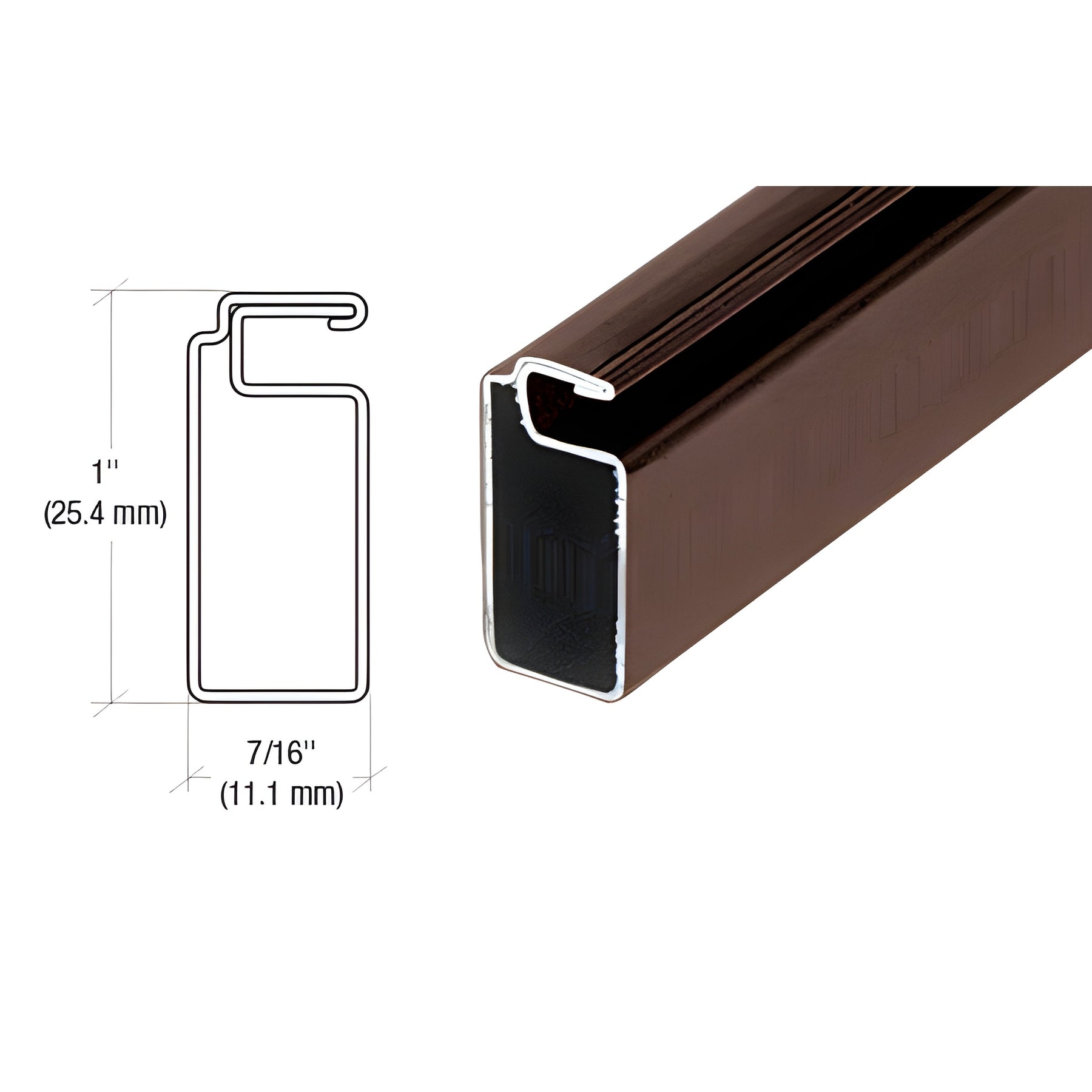

This CRL 1" x 7/16" (25.4 x 11 mm) Screen Frame (SKU: WSF17BRZ) is roll formed from .025" (.63 mm) aluminum and is cambered to retain screen tension after installation—an advantage for long-lasting, tight-fitting window and door screens. It accepts CRL .170" spline (4.3 mm) and pairs with WSC108 aluminum corners for clean mitered frame assembly. Available in multiple finishes for matching storm, sliding, and casement window applications.

SPECIFICATIONS:
Material: Roll formed aluminum
Wall Thickness: .025" (.63 mm) (tolerance ± .002" / .05 mm)
Uses Spline Size: .170" (4.3 mm)
Uses Corners: WSC108 for mitered corners

Product Warning:

Stock lengths must ship via common carrier unless cut specifically for UPS. Due to coil stock tolerances and roll forming stretch, actual thickness may vary by ±.002" (.05 mm), which is standard in the industry.


For a durable, cambered aluminum screen frame that fits sliding, storm, and casement windows—order SKU WSF17BRZ or contact us for finish options and custom cutting.
