CRL Bronze Roll-Formed Aluminum Screen Frame 3/4 x 7/16 - 144 in

• Typical Applications: sliding windows and casement windows
• Wall Thickness: .020" (.51 mm)
• Several finishes available

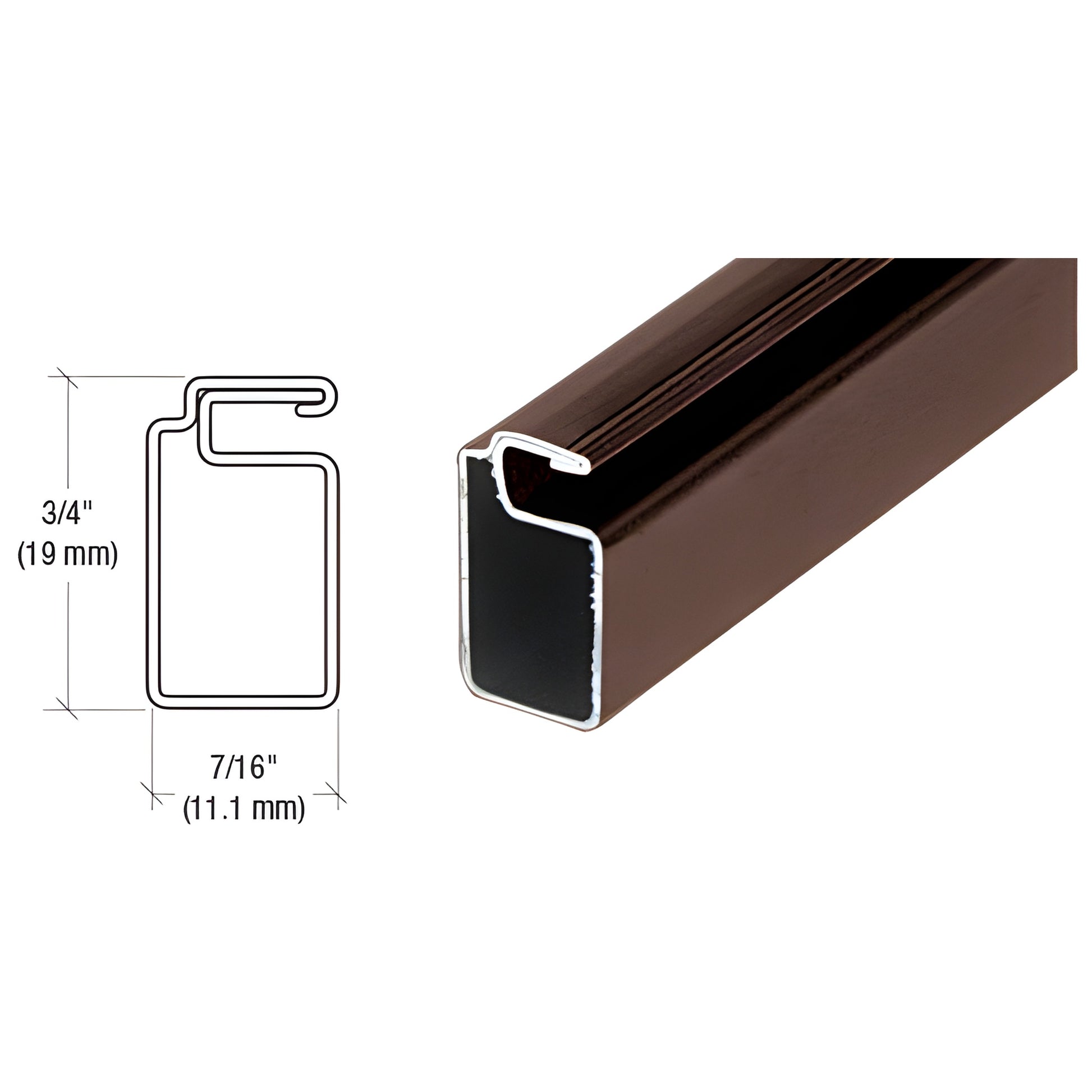

This CRL 3/4" x 7/16" (19 x 11 mm) screen frame extrusion (SKU WSF347BRZ) is roll-formed from .020" (.51 mm) aluminum and is cambered (slightly bowed) to retain screen tension after installation. Designed for window screen repair and replacement, it accepts CRL .165" (4.2 mm) spline and works well for both sliding window and casement window screen frames. Use WSC107 aluminum corners or WSPC107 plastic corners for mitered frame assemblies, or SWSC716 series square cut plastic corners for square-cut frames.

SPECIFICATIONS:
Material: Roll-formed aluminum
Wall Thickness: .020" (.51 mm)
Spline Size: .165" (4.2 mm)
Compatible Corners: WSC107 or WSPC107 (mitered); SWSC716 (square cut)

Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Due to coil stock tolerances and roll forming stretch, actual thickness can vary ±.002" (.05 mm). This is standard industry practice.


Enhance window screens with a durable, cambered aluminum frame engineered to retain tension — order SKU WSF347BRZ or contact us for custom cuts and finish options.
