Product Details
- Typical Applications Include Sliding Windows and Casement Windows
- .020" (.51 mm) Wall Thickness
- Several Finishes Available

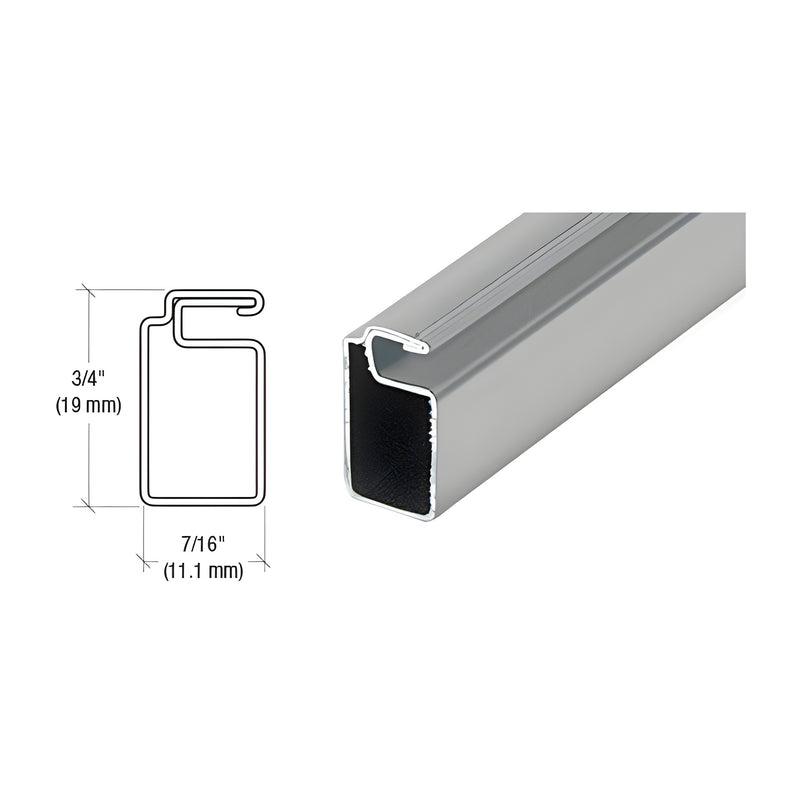

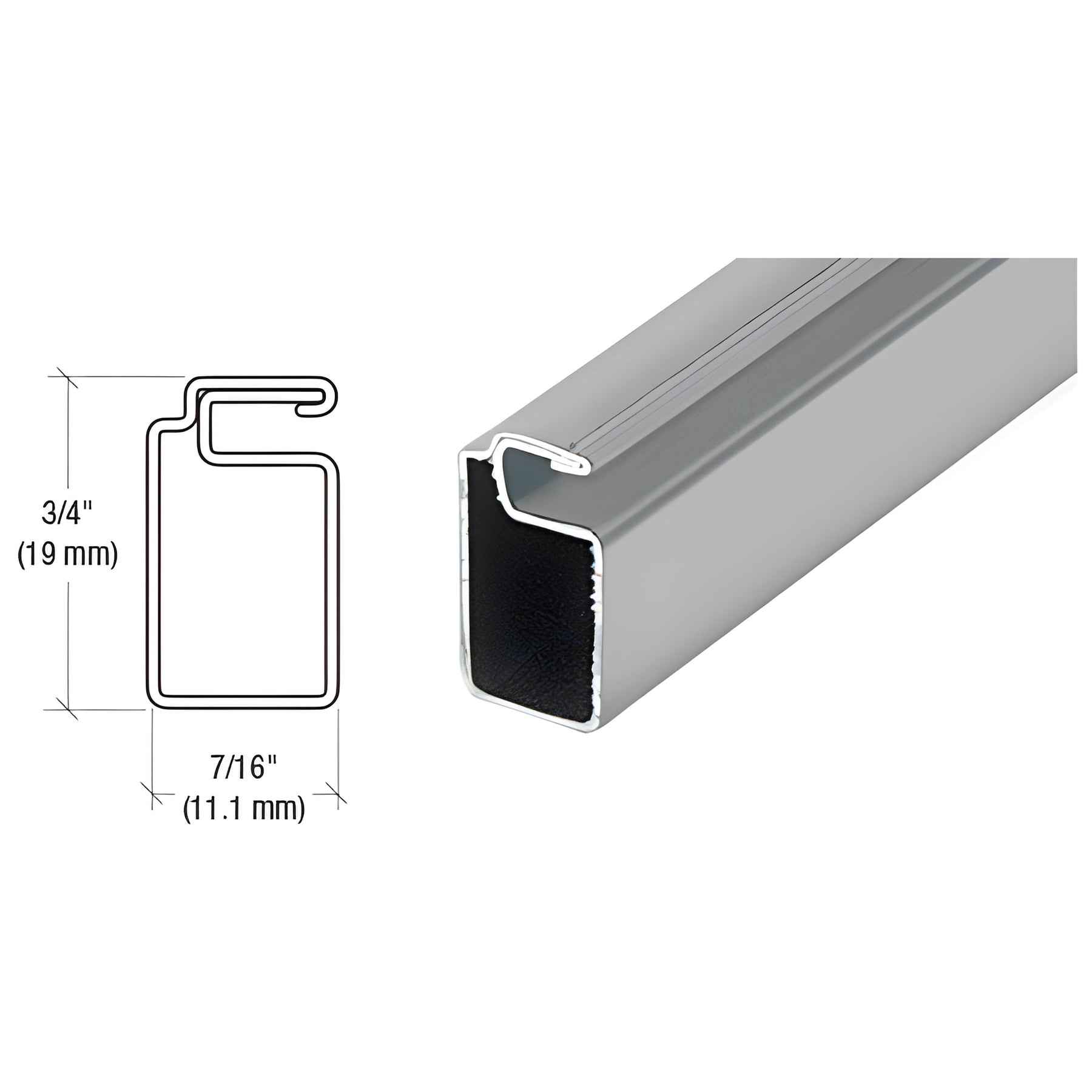

This CRL 3/4" x 7/16" (19 x 11 mm) Screen Frame is made of .020 mil thick roll formed aluminum. It is cambered (slightly bowed) to retain screen tension when installed. It will accept CRL .165" Spline. You can use either WSC107 Aluminum Corners or WSPC107 Plastic Corners for mitered frame corners or SWSC716 Series Square Cut Plastic Corners for a square cut frame application.
SPECIFICATIONS:
Material: Roll Formed Aluminum
Wall Thickness: .020" (.51 mm)
Uses Spline Size: .165" (4.2 mm)
Uses Corners: WSC107 or WSPC107 for Mitered Corners; SWSC716 for Square Cut Corners
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Because of tolerances in coil stock and stretch in the roll forming process, stock thicknesses can range from the advertised thickness plus or minus .002" (.05 mm). This is standard in the industry.
