CRL White 3/4" x 7/16" Roll-Formed Aluminum Screen Frame 12 ft

• Typical applications: sliding windows and casement windows (aluminum window screen frame)
• .020" (.51 mm) wall thickness — roll formed aluminum
• Several finishes available; accepts .165" spline

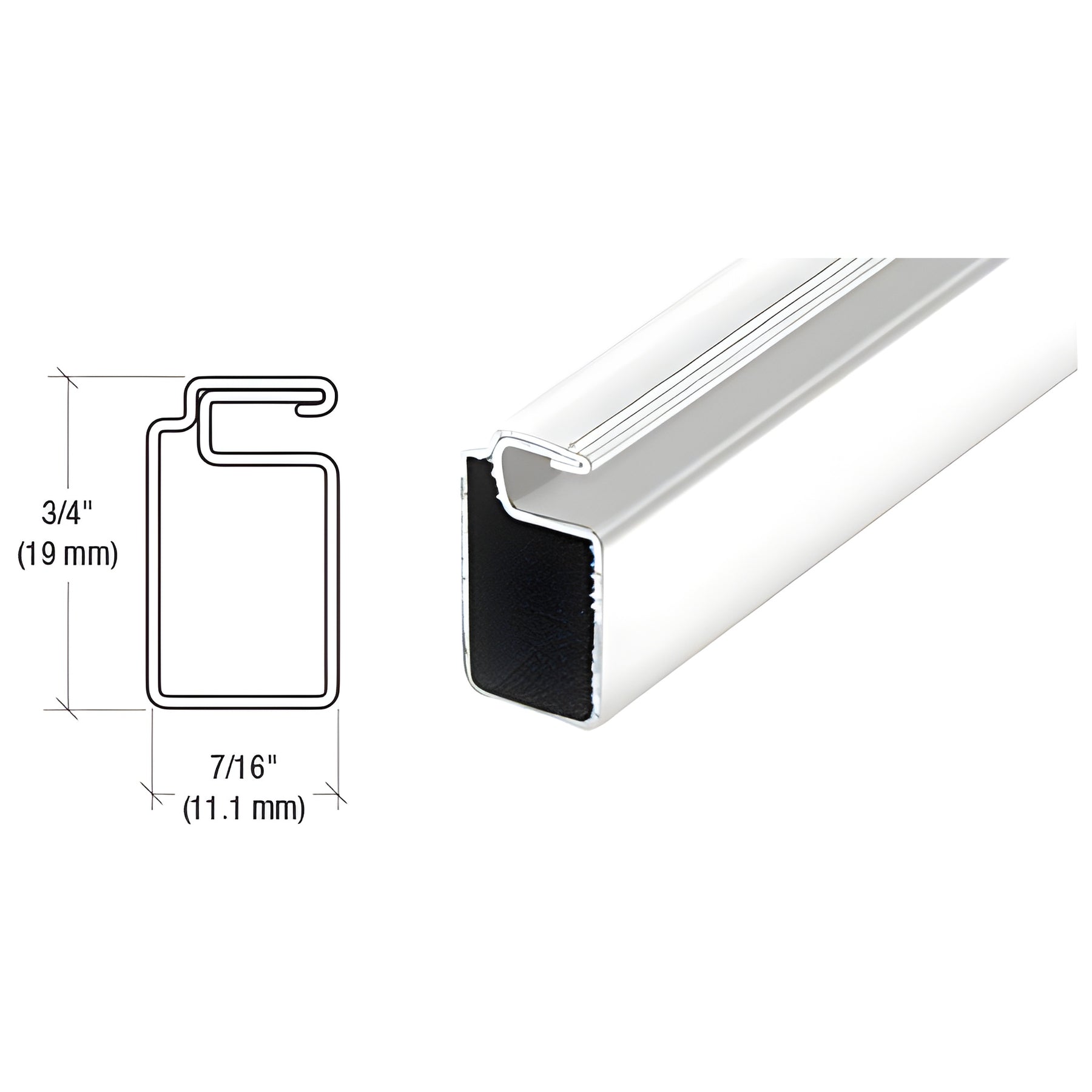

This CRL 3/4" x 7/16" (19 x 11 mm) Screen Frame (SKU: WSF347W) is roll formed from .020" (.51 mm) aluminum and is cambered (slightly bowed) to maintain screen tension after installation. Designed for window screen repair and custom screen construction, this 3/4" x 7/16" screen frame accepts CRL .165" spline for standard screening. Use WSC107 aluminum corners or WSPC107 plastic corners for mitered frames, or SWSC716 series square cut plastic corners for square-cut frames.

SPECIFICATIONS:
Material: Roll formed aluminum
Wall Thickness: .020" (.51 mm)
Spline Size: .165" (4.2 mm)
Compatible Corners: WSC107 or WSPC107 for mitered corners; SWSC716 for square-cut corners

Product Warning:

Stock lengths must ship via common carrier unless specifically cut for UPS shipment.

Due to tolerances in coil stock and stretch during roll forming, actual thickness can vary by ±.002" (.05 mm). This industry-standard variance may occur.

Order SKU WSF347W now to get a durable aluminum screen frame for sliding and casement window screen repairs — contact us to confirm finish availability and cut-to-size options.
