CRL White Roll-Formed Aluminum Screen Frame 1" x 7/16" 144" (12ft)
Item# WSF17W
Shipping Weight: 1.13 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.13 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Case Quantity
84
Finish/Color
White
Height
1 in. (25 mm)
Length
12 ft. (3.7 m)
Material
Aluminum
Roll Formed
Yes
Wall Thickness
0.025 in. (.63 mm)
Width
7/16 in. (11 mm)
- Typical applications: sliding, storm, and casement windows
- .025" (.63 mm) wall thickness (±.002" tolerance)
- Several finishes available

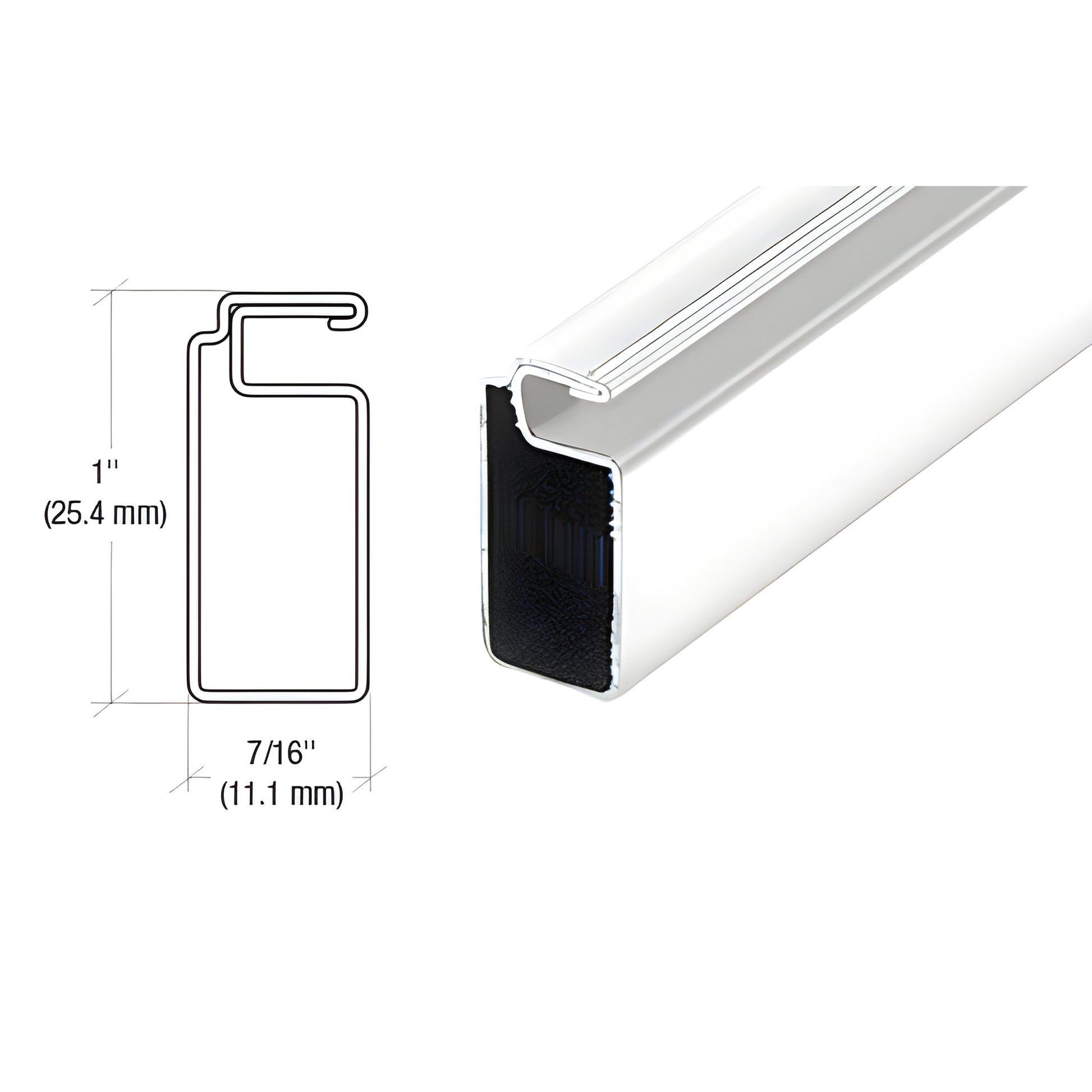

CRL 1" x 7/16" (25.4 x 11 mm) Screen Frame (SKU: WSF17W) — roll-formed aluminum screen frame extrusion with a cambered profile to retain screen tension after installation. Accepts CRL .170" spline and pairs with WSC108 aluminum corners for mitered frame assembly. Ideal for replacement or custom screen projects on sliding, storm, and casement windows where a durable, lightweight aluminum frame is required.
SPECIFICATIONS:
Material: Roll formed aluminum
Wall Thickness: .025" (.63 mm) (industry standard tolerance ±.002" / .05 mm)
Uses Spline Size: .170" (4.3 mm)
Uses Corners: WSC108 for mitered corners
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Most shipping weights are approximate and have not been verified. If you need exact weight to determine shipping costs, please request this prior to completing your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary with monitor settings.
Order the WSF17W aluminum screen frame extrusion for reliable screen tension and easy mitered corner assembly — add to cart or contact us for custom cuts.
