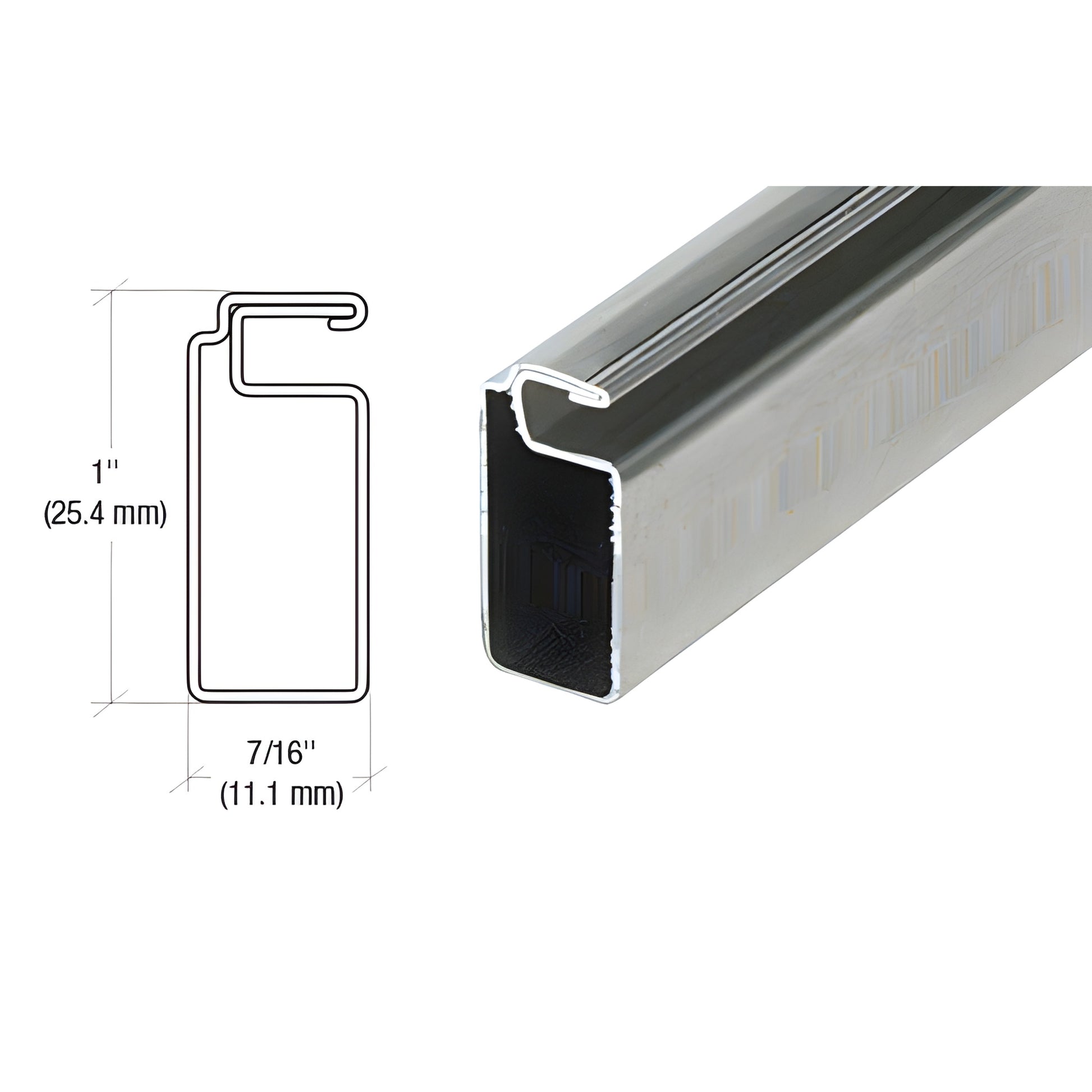

CRL Mill Finish Roll-Formed Aluminum Screen Frame 1" x 7/16" x 144"

• Typical Applications: Sliding, storm, and casement windows
• .025" (.63 mm) wall thickness (±.002" tolerance)
• Multiple finishes available

This CRL 1" x 7/16" (25.4 x 11 mm) Screen Frame (SKU: WSF17M) is manufactured from roll-formed aluminum with a .025" wall thickness. The frame is cambered (slightly bowed) to retain screen tension after installation, making it ideal for replacing or building tight-fitting window screens. It accepts CRL .170" spline and uses WSC108 aluminum corners for secure mitered frame assemblies. Available in several finishes for matching existing window hardware.


SPECIFICATIONS:
Material: Roll-formed aluminum
Wall Thickness: .025" (.63 mm) (industry tolerance ±.002"/.05 mm)
Uses Spline Size: .170" (4.3 mm)
Uses Corners: WSC108 aluminum corners for mitered joints


Product Warning:

Stock lengths must ship via common carrier unless specifically cut for UPS shipment. Because of coil-stock tolerances and stretch during roll forming, actual thickness can vary by ±.002" (.05 mm). This variance is standard in the industry.

Order SKU WSF17M today to get a durable, cambered roll-formed aluminum screen frame that holds screen tension—contact us or add to cart now.
