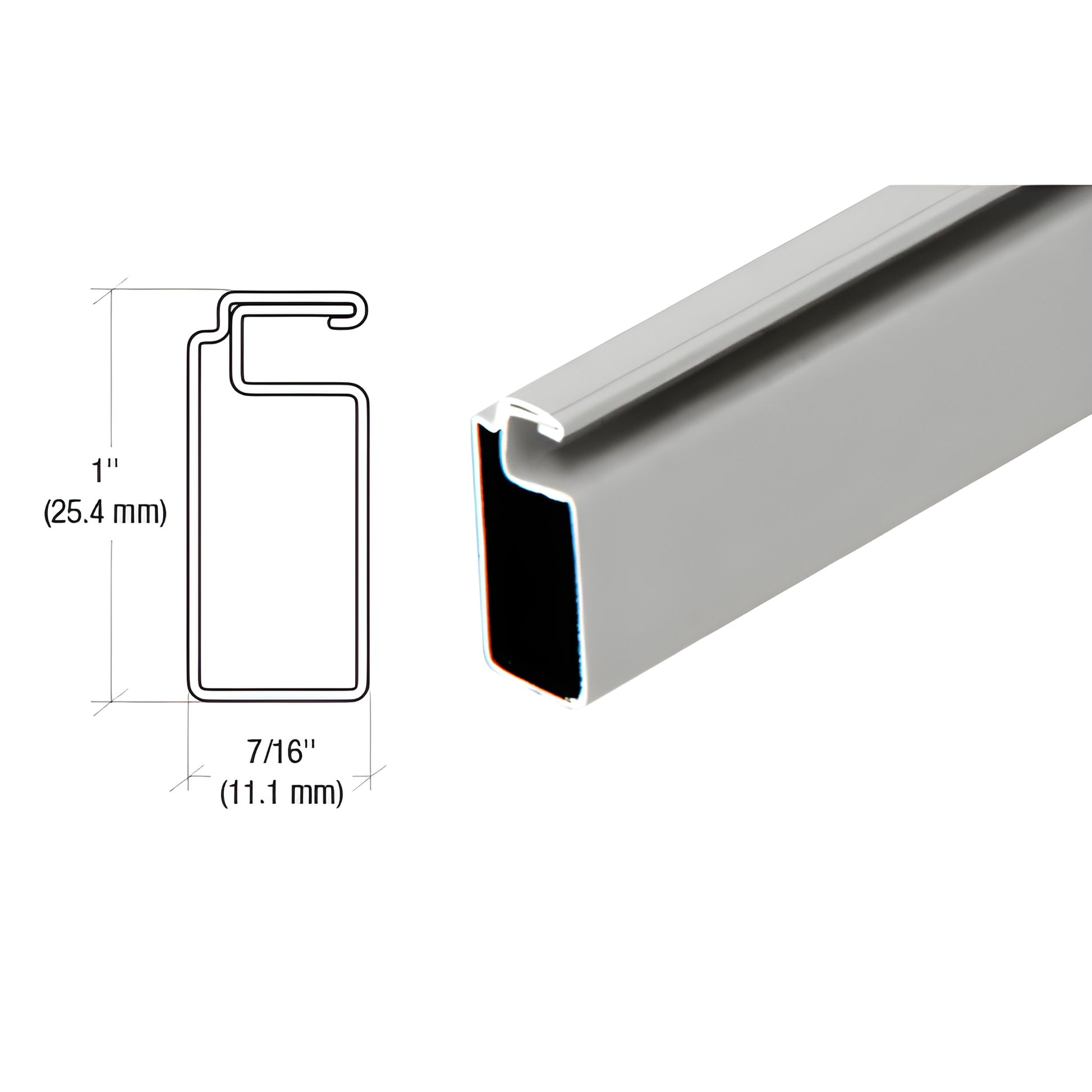

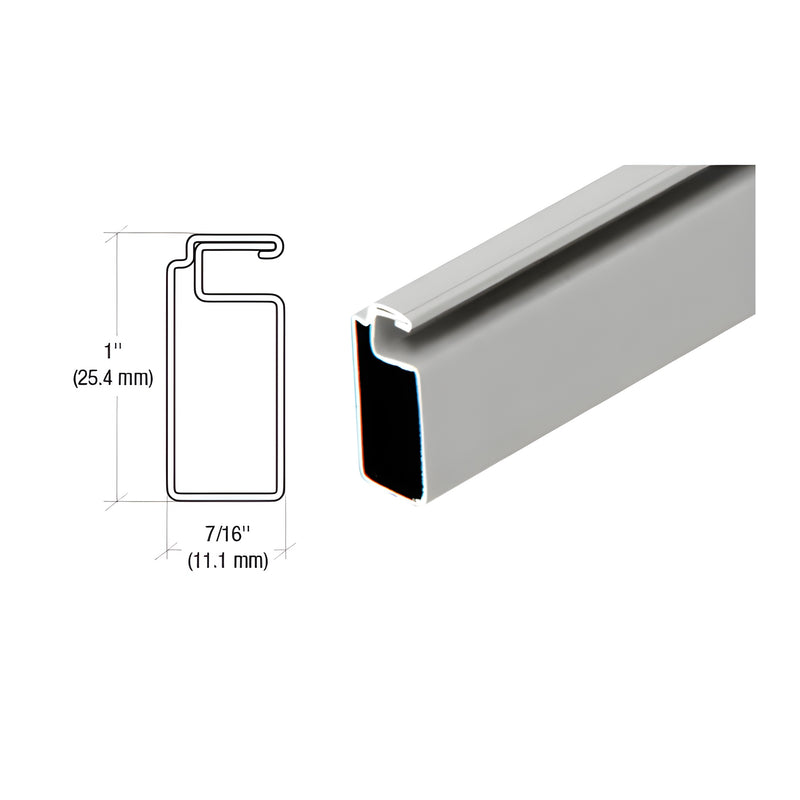

CRL Gray Roll-Formed Aluminum Screen Frame Channel 1" x 7/16" 144in
Item# WSF17GRY
Shipping Weight: 1.13 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.13 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Case Quantity
84
Finish/Color
Gray
Height
1 in. (25 mm)
Length
12 ft. (3.7 m)
Material
Aluminum
Roll Formed
Yes
Wall Thickness
0.025 in. (.63 mm)
Width
7/16 in. (11 mm)
- Typical applications: sliding, storm, and casement windows
- .025" (.63 mm) wall thickness — roll formed aluminum
- Several finishes available
This CRL 1" x 7/16" (25.4 x 11 mm) screen frame (SKU: WSF17GRY) is roll formed from durable .025" (.63 mm) aluminum and is cambered to maintain screen tension after installation. Designed to accept CRL .170" spline and to work with WSC108 aluminum corners for clean, mitered frame joints, this profile is ideal for replacement and custom-built insect screens for sliding, storm, and casement window applications.
SPECIFICATIONS:
Material: Roll formed aluminum
Wall Thickness: .025" (.63 mm)
Spline Size: .170" (4.3 mm)
Compatible Corners: WSC108 for mitered corners
Product Warning:
Stock lengths ship via common carrier unless specifically cut for UPS. Due to coil stock tolerances and roll forming stretch, actual thickness can vary by ±.002" (.05 mm); this is standard industry practice.
Most shipping weights are approximate. If you need an exact weight to calculate shipping costs before ordering, please contact CRL Customer Service. Product images are actual or close representations; colors may vary with monitor settings.
Order the CRL 1" x 7/16" aluminum screen frame (WSF17GRY) now for reliable screen tension and professional mitered corners.
