CRL White Roll-Formed Aluminum Screen Frame 3/4 x 1/4, 144 in

• Typical applications: sliding windows and storm windows
• .019" (.48 mm) wall thickness
• Multiple finishes available

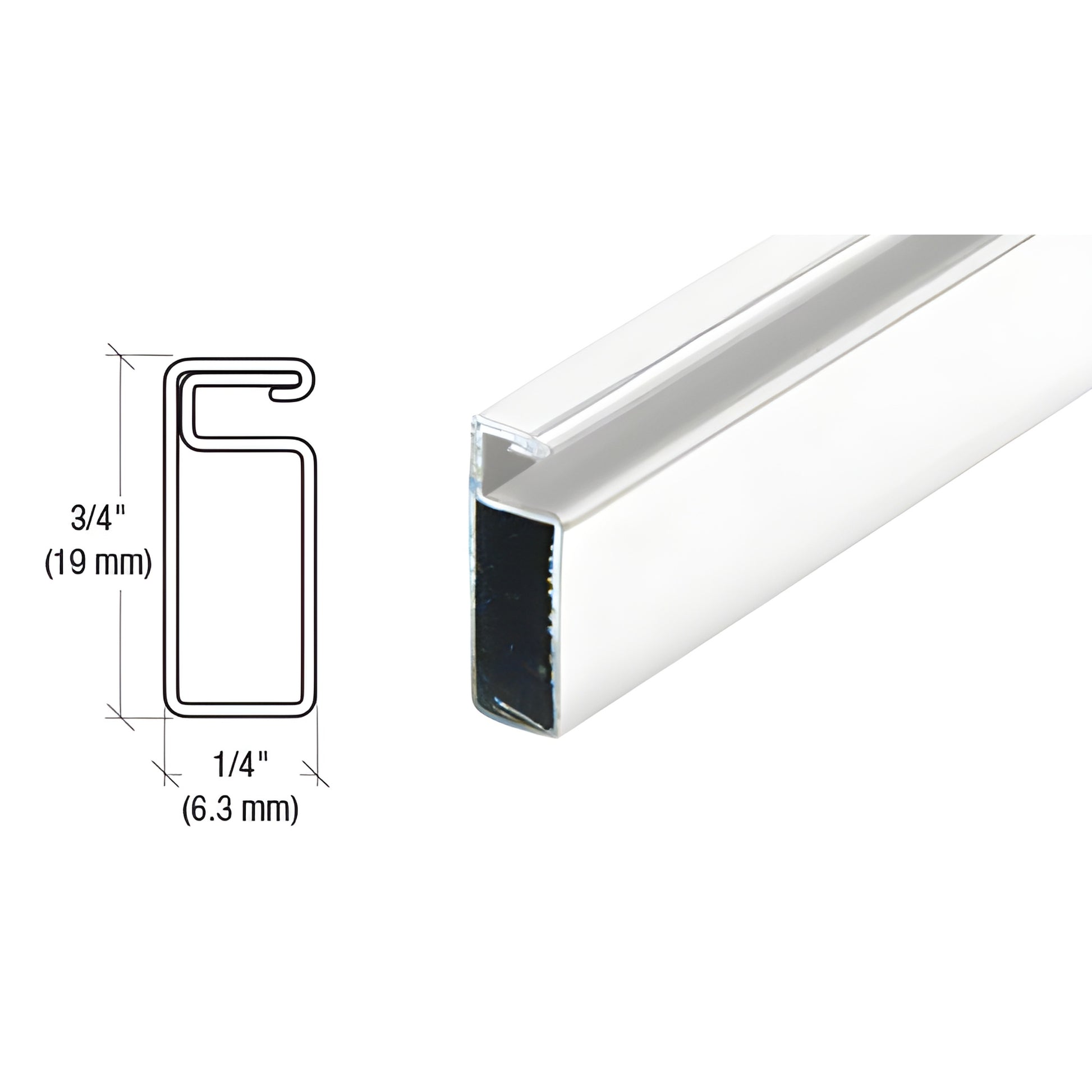

This CRL 3/4" x 1/4" (19 x 6 mm) screen frame (SKU: WSF344W) is roll-formed from .019" (.48 mm) aluminum and is cambered to retain screen tension after installation. Designed for window screen repair and replacement, it accepts CRL .140" (3.6 mm) spline for secure screening. Use WSC104 aluminum corners for mitered frames or SWSC14 series square-cut plastic corners for square-cut assemblies — ideal for sliding window screens and storm window screens.


SPECIFICATIONS:
Material: Roll-formed aluminum
Wall thickness: .019" (.48 mm)
Spline size: .140" (3.6 mm)
Compatible corners: WSC104 (mitered); SWSC14 (square cut)


Product warning:

Stock lengths ship via common carrier unless cut to fit UPS. Due to coil stock tolerances and roll-forming stretch, actual wall thickness may vary ± .002" (.05 mm). This tolerance is standard in the industry.

Order the CRL 3/4" x 1/4" aluminum screen frame (WSF344W) today to repair or build durable sliding and storm window screens.
